RCS Audio-Systems SC-512 EN-1 EN 54-24 alarm notification in-ceiling speaker 6 W 100 V with cover cap

Your rating:
Average rating
product review for RCS Audio-Systems SC-512 EN-1 EN 54-24 alarm notification in-ceiling speaker 6 W 100 V with cover cap
( 4.5 / 5 ) 30 ratings

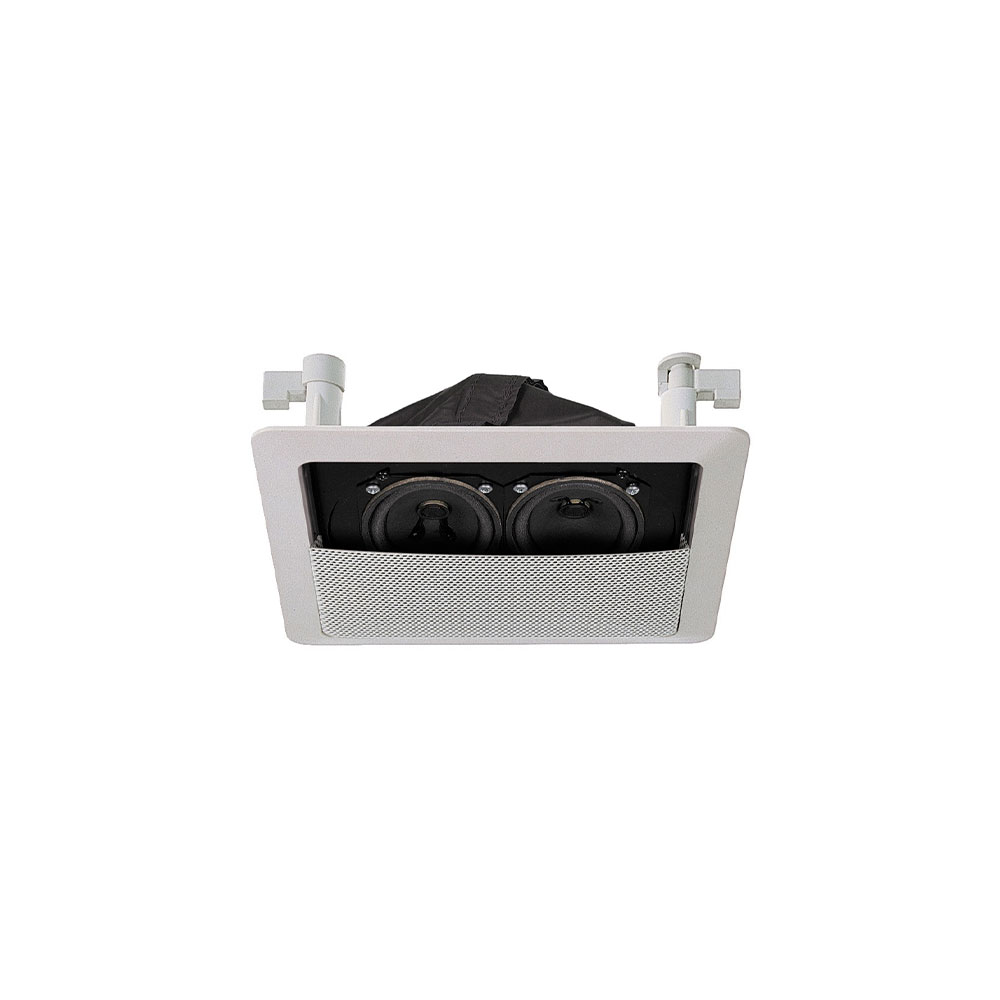

RCS Audio-Systems SC-512 EN-1
This image may differ from the desired article.
100,70 EUR
( 119,83 EUR incl. VAT )
≈ £84.19  |  ≈ $111.27
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems SC-512 EN-1 EN 54-24 alarm notification in-ceiling speaker 6 W 100 V with cover cap
Lieske Part No.:103554
Mfg Part No: SC-512 EN-1
UPC/EAN: 4250458260501
Weight:1.3 kg
Type:SC-512EN-1
Graduated prices net
From piecesPrice per pieces
593,90 EUR
1087,11 EUR
1580,31 EUR
2073,51 EUR

Product information for RCS Audio-Systems SC-512 EN-1:

The SC-512 EN-1 from RCS Audio-Systems is a certified ceiling-mounted loudspeaker for voice alarm systems in accordance with the standard EN 54-24:2008. It is specifically designed for applications with high safety requirements, where redundant sound coverage is necessary. The integrated dual configuration with two loudspeakers and two transformers enables a true A/B split, as required by DIN EN 60849 / VDE 0828 and VDE 0833-4. This ensures that alarm signaling can continue even if one channel fails, thereby increasing system reliability.

Applications
This loudspeaker is suitable for use in buildings with fire protection requirements, such as office buildings, hotels, hospitals, or public facilities. Certification according to EN 54-24:2008 ensures compliance with European safety standards for alarm devices. The design is intended for flush installation in ceilings, with a discreet edge height of approximately 2 mm enabling unobtrusive integration into architectural design.

Functions and Features in Detail
The SC-512 EN-1 features two 10,2 cm ( 4 inch ) x 6,3 cm ( 2,5 inch ) oval wideband chassis with tweeter cones, ensuring clear and balanced sound. The rated power handling is 2 x 6 W (program power), with maximum power reaching up to 15 W. The sound pressure levels are 95 dB at 1 W/1 m and 111.2 dB at maximum power (Pmax/1 m), providing sufficient loudness for alarm functions. The frequency range covers 90 to 16,000 Hz (±10 dB), enabling clear voice reproduction. The radiation angle is 180° (-6 dB at 1 kHz), ensuring even coverage of the room.

Technology Explained Simply
The loudspeakers are designed for operation in a 100-V amplifier system, with power taps including 2 x 6 W, 3 W, and 1.5 W. The impedance is 8 Ohm, allowing compatible connection to standard amplifiers. The housing is made of impact-, shock-, and fire-resistant ABS plastic (UL94V0), providing high mechanical and thermal stability. A coated steel perforated sheet ensures theft-resistant construction. The integrated cover hood protects against dripping water, enabling use in areas with increased humidity.

Compatibility and Accessories
The loudspeaker is designed for use in 100-V amplifier systems. An optional humid environment version is available, equipped with treated chassis and transformers to meet requirements in humid rooms. Special lacquering in RAL colors is available upon request, allowing adaptation to room design.

Installation and Mounting
Installation is performed using a quick-tension system, enabling easy and secure mounting even in plasterboard ceilings. The cutout size is 187 x 187 mm (±5 mm), while the external dimensions are 220 x 220 mm.

Operational Advantages
The combination of EN 54-24:2008 certification, A/B redundancy, robust housing, and easy installation makes the SC-512 EN-1 a reliable solution for fire protection and voice alarm systems. The integrated cover hood and the option for a humid environment version extend the range of applications. The discreet appearance and low edge height ensure unobtrusive integration into ceiling structures.

Technical data
ShapeAngular
Dimensions (W x H)220 x 220 mm
Sound pressure level (SPL) 1 W/1 m95 dB
Built-in depth70 mm
Adjustments at 100 V2x 6/3/1,5 W
Impedance8 Ohm
Sound pressure level (SPL) Pmax/1 m111,2 dB @182Hz
ColourWhite
Cutout (W x H)187 x 187 mm, (±5mm)
Beam angle (-6dB, 1 kHz)180°
Rated load capacity (program)2x 6 W (15 W)
Frequency range (±10dB)90 – 16.000 Hz
Speaker2 St. 4" x 2,5"


Questions & answers

What is the delivery time of RCS Audio-Systems SC-512 EN-1 EN 54-24 alarm notification in-ceiling speaker 6 W 100 V with cover cap?

The article RCS Audio-Systems SC-512 EN-1 EN 54-24 alarm notification in-ceiling speaker 6 W 100 V with cover cap is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems SC-512 EN-1 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems SC-512 EN-1 EN 54-24 alarm notification in-ceiling speaker 6 W 100 V with cover cap always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems SC-512 EN-1 EN 54-24 alarm notification in-ceiling speaker 6 W 100 V with cover cap if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of RCS Audio-Systems SC-512 EN-1 EN 54-24 alarm notification in-ceiling speaker 6 W 100 V with cover cap we can offer you a price of 93,90 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
