RCS Audio-Systems SC-110 In-ceiling speaker, 10 W, white, 100 V
|
45,60 EUR |
|||||||||||
|
( 54,26 EUR incl. VAT ) ≈ £38.12 | ≈ $50.39 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 515320 | ||||||||||
| Mfg Part No: | SC-110 | ||||||||||
| UPC/EAN: | 4250458204550 | ||||||||||
| Weight: | 1.3 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems SC-110:
Applications
The SC-110 is intended for use in indoor environments where discreet yet powerful sound reinforcement is required. The 100-V technology allows cabling over long distances with minimal losses, making it particularly suitable for larger installations. The ability to adjust to three power levels (10/5/2.5 W) enables flexible integration into existing or newly planned systems. The frequency range of 75 to 20,000 Hz (±10 dB) ensures balanced reproduction of speech and music, with a sound pressure level of 91.5 dB at 1 W/1 m and 102 dB @ 3 kHz at maximum load (Pmax). The radiation angles are 180° at 1 kHz, 110° at 4 kHz, and 60° at 8 kHz, providing broad yet controlled sound distribution.
Functions and Equipment in Detail

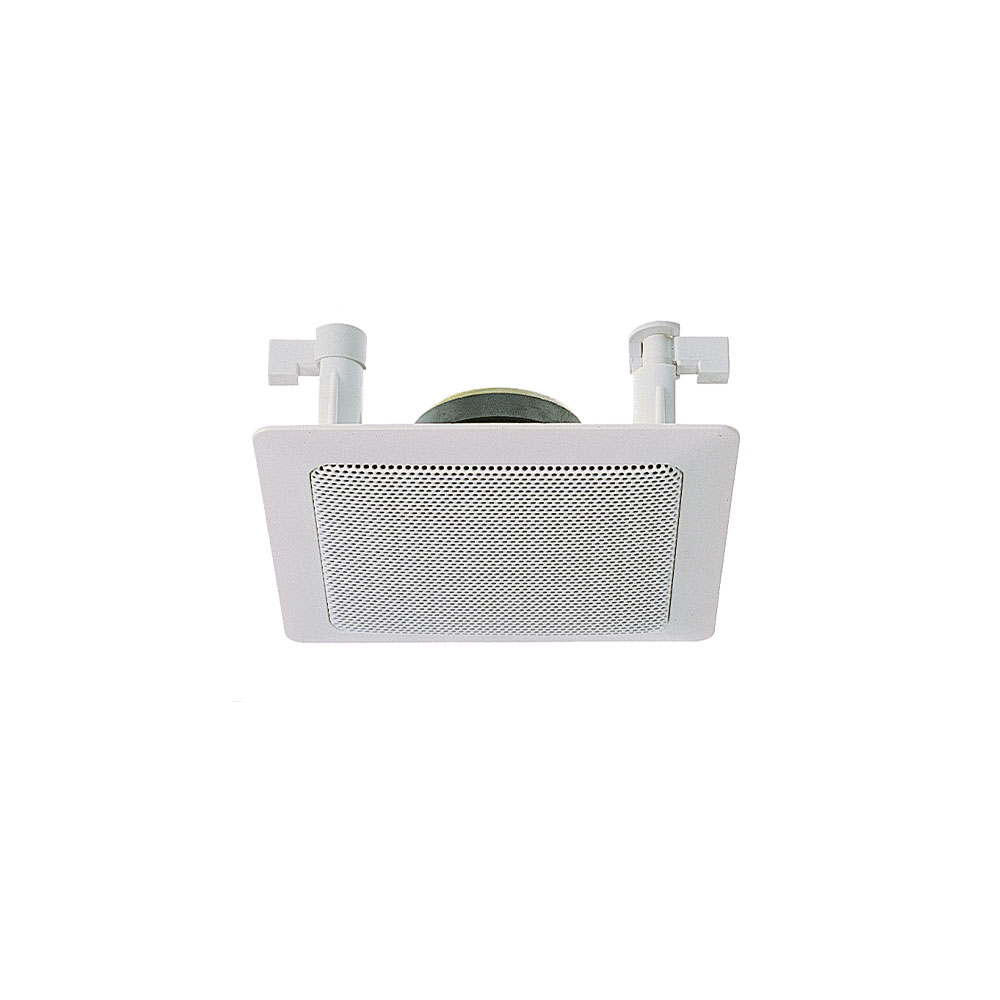

The speaker features a 5¼˝ wideband chassis with an integrated tweeter, ensuring clear speech intelligibility and balanced sound. The impedance is 8 Ohm, ensuring compatibility with standard 100-V systems. Installation is performed using a quick-tension fastening mechanism, where after lifting the perforated metal plate (made of coated steel), four screws are tightened. This mechanism enables quick, secure, and theft-resistant mounting in ceiling material. The installation frame is made of high-quality plastic, ensuring mechanical stability.
Technology Explained Simply
The 100-V technology is a standard solution in professional sound reinforcement, where speakers are connected via a high-voltage network. The power taps (10/5/2.5 W) allow adaptation to room size and total system power. The rated power of 10 W (program power 15 W) is suitable for medium to large rooms, with the maximum sound pressure level of 102 dB @ 3 kHz indicating loudness under realistic conditions. The frequency response of 75–20,000 Hz shows that the speaker can reproduce low tones starting at 75 Hz, which is important for natural sound reproduction.
Compatibility and Accessories

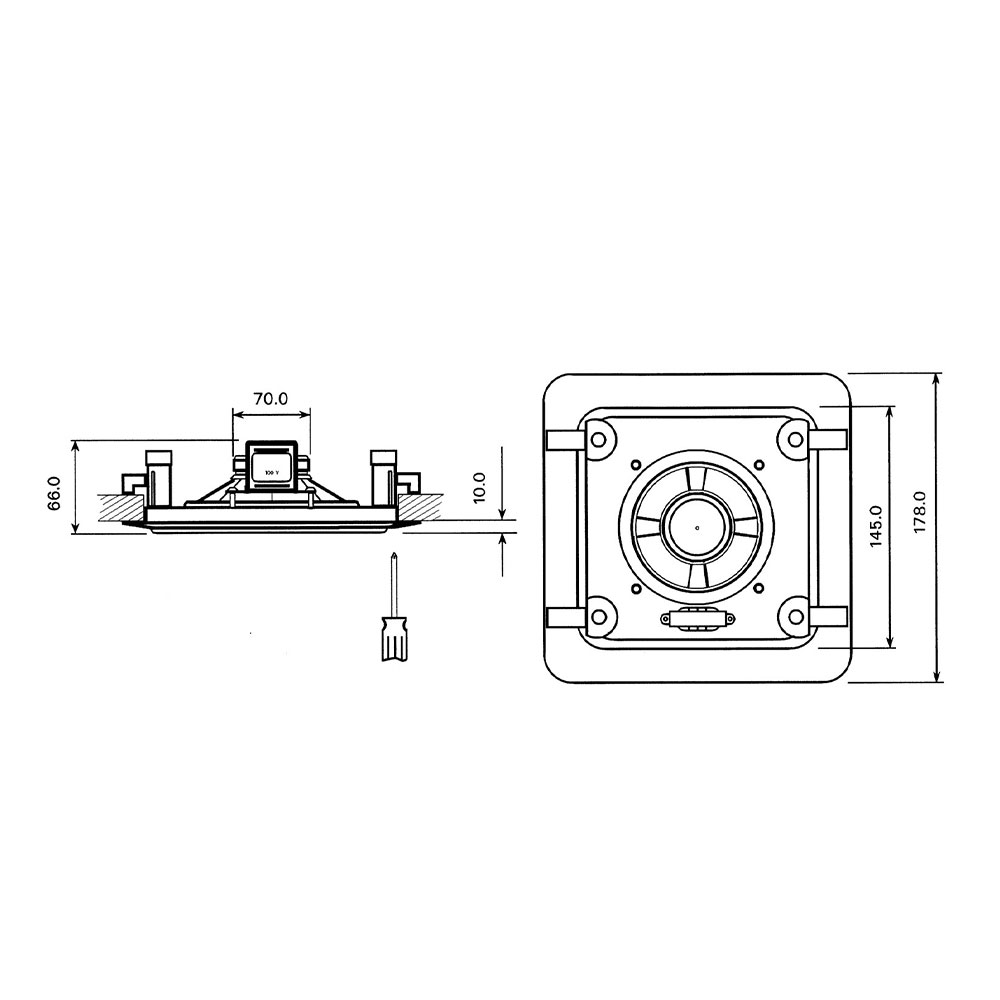

The SC-110 is compatible with all 100-V amplifiers that support the corresponding power taps. The datasheet references the installation frame EZ-110, suitable for mounting in heavy ceiling materials such as brick or concrete. This frame has external dimensions of 193 mm (H) × 193 mm (W) × 84 mm (D) and is made of impregnated particleboard. Installation requires a square cutout of 145 mm side length in the ceiling material.
Installation and Mounting
Installation is performed by placing the speaker into a pre-cut square opening of 145 mm side length. After insertion, the perforated metal plate is lifted, and the four mounting screws are tightened to securely fix the speaker. The installation depth of 60 mm requires sufficient space in the ceiling area. Installation requires tools, specifically a screwdriver to remove the perforated metal plate. The construction is designed to make theft difficult.
Operational Advantages
The SC-110 offers high operational reliability due to its theft-resistant mounting and easy installation. The discreet design with only 2 mm visible edge ensures unobtrusive integration into architecture. The combination of 100-V technology and flexible power taps enables scalable system planning. The wide frequency range and clear sound make it suitable for speech transmission, for example in information or security systems. The maximum sound pressure level of 102 dB @ 3 kHz indicates that it is sufficiently loud even in larger rooms without compromising sound quality.
| Technical data | |
| Adjustments at 100 V | 10/5/2,5 W |
| Side length | 178 mm |
| Built-in depth | 60 mm |
| Rated load capacity (program) | 10 (15) W |
| Shape | Angular |
| Impedance | 8 Ohm |
| Radiation angle (-6dB, 1/4/8 kHz) | 180°/ 110°/ 60° |
| Frequency range (±10dB) | 75 - 20.000 Hz |
| Speaker diameter | 130 mm |
| Sound pressure level (SPL) 1 W/1 m | 91,5 dB |
| Colour | White |
| Sound pressure level (SPL) Pmax/1 m | 102 dB @3kHz |
