RCS Audio-Systems RCA-220 C Active in-ceiling speaker set 2x 20/10 W

Your rating:
Average rating
product review for RCS Audio-Systems RCA-220 C Active in-ceiling speaker set 2x 20/10 W
( 4.4 / 5 ) 62 ratings
RCS Audio-Systems RCA-220 C
This image may differ from the desired article.
RCS Audio-Systems RCA-220 CRCS Audio-Systems RCA-220 C
311,60 EUR
( 370,80 EUR incl. VAT )
≈ £260.50  |  ≈ $344.32
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems RCA-220 C Active in-ceiling speaker set 2x 20/10 W
Datasheet:file_download Download
Lieske Part No.:103075
Mfg Part No: RCA-220 C
UPC/EAN: 4250458282602
Weight:0.2 kg
Type:RCA-220C
Graduated prices net
From piecesPrice per pieces
4290,57 EUR
8269,53 EUR
12248,50 EUR
16227,47 EUR

Product information for RCS Audio-Systems RCA-220 C:

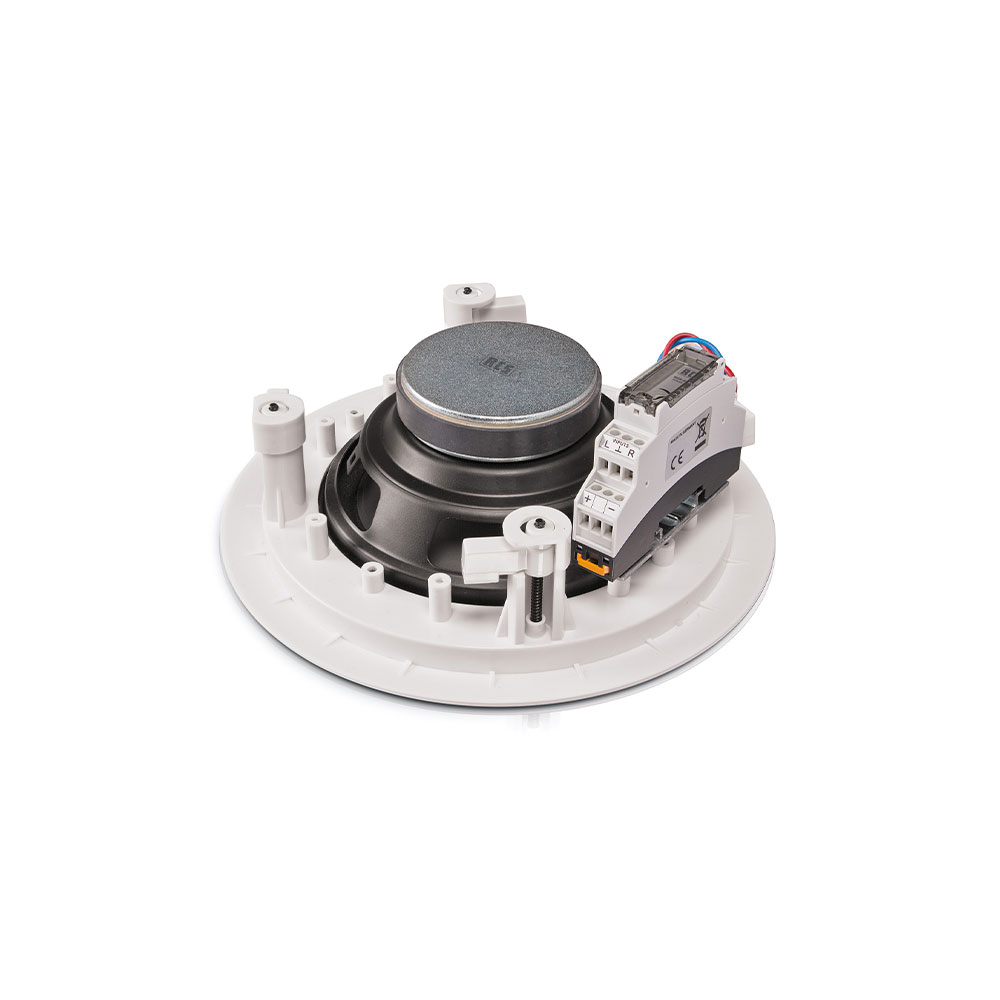

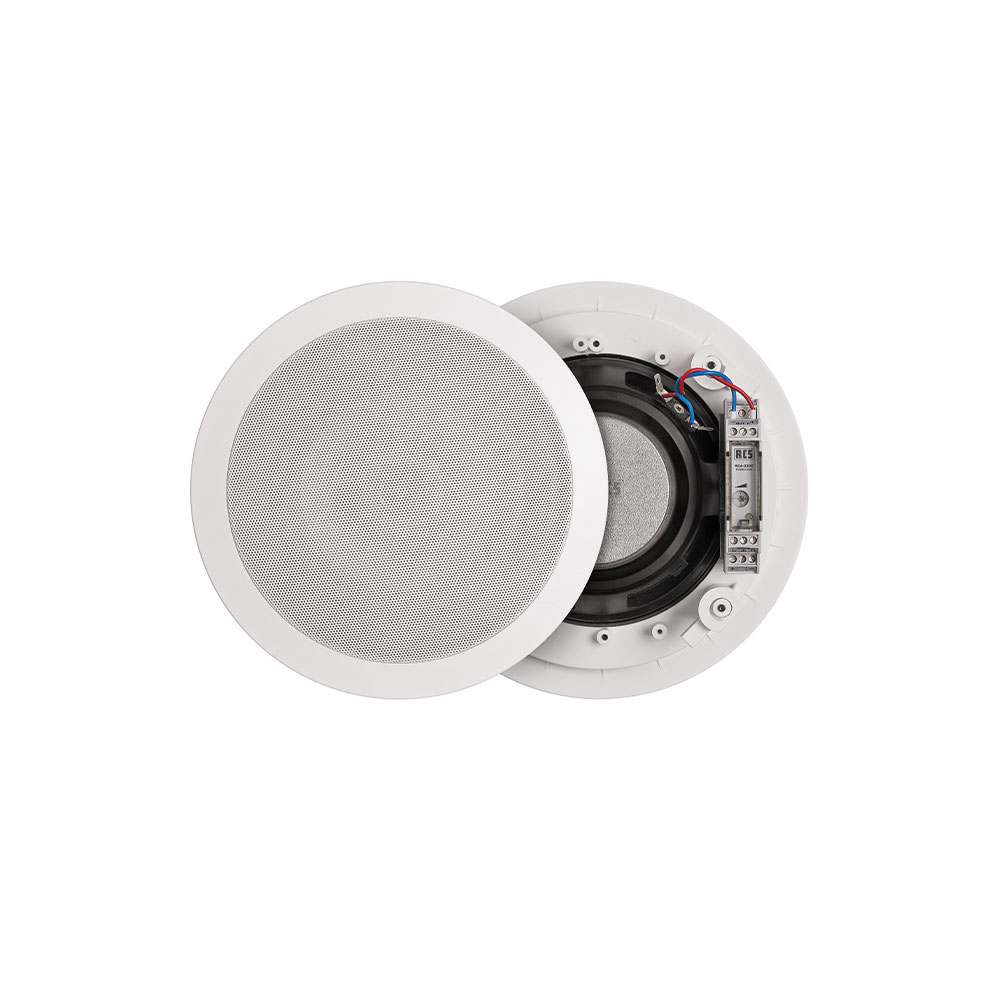

The active ceiling-mounted speaker of type RCA-220C from RCS Audio-Systems is an integrated sound system, consisting of two coaxial ceiling-mounted speakers and a pre-mounted amplifier module. The system is designed for 2-way sound coverage and is particularly suitable for rooms such as schools, presentation rooms, or small event spaces, where a high-quality yet cost-effective speaker system is required. Amplification occurs directly at the speaker, enabling high dynamics and faithful sound reproduction without distortions across all frequency ranges. The Class-D technology of the built-in stereo amplifier ensures efficient power usage and low heat generation.

Applications

The RCA-220C system is designed for indoor use, particularly in offices, schools, conference rooms, or small event spaces. The low mounting and installation complexity makes it a practical solution that can be installed without extensive electrical preparations. The speaker enclosures are available in all RAL colours upon request, allowing visual adaptation to room design.

Functions and equipment in detail

The system features an integrated amplifier with a programme power of 2x 20 W at 24 V operating voltage. The output power is 2x 10 W at 24 V, indicating different load conditions or operating modes. The impedance of the speakers is 8 Ohm, and the chassis is designed as a 2-way coaxial system, directing mid and high frequencies through a common central point. This improves sound localization and sound quality. The frequency response ranges from 45 Hz to 20,000 Hz (-3 dB), providing sufficient bandwidth for speech and music reproduction.

Technology explained simply

The integrated amplifier operates in Class-D technology, characterized by high efficiency and low power loss. Power supply is via a voltage of 10 to 28 V DC, with maximum current draw at 24 V being 45 mA (for the amplifier) and 2 A (for the speakers). The protection circuits include thermal protection, short-circuit protection, and reverse polarity protection to safeguard the device. The input levels can be adjusted in four steps via a rotary switch: 0 dB, -6 dB, -12 dB, -16 dB, allowing adaptation to different signal sources. The gain can be adjusted in four steps via a rotary switch: 20 dB, 26 dB, 32 dB, 36 dB, enabling volume adjustment according to room acoustics.

Compatibility and accessories

The RCA-220C system can optionally be combined with the mixer UPM-121 A, which allows signals from laptops, CD/MP3 players, or mobile phones to be input. The mixer is designed as an in-wall unit and adds flexible signal processing to the system. The audio inputs are unbalanced, which is sufficient for standard applications in schools or offices. Connections are made via screw terminals up to 2.5 mm², ensuring a secure and stable connection.

Mounting and installation

The ceiling-mounted speakers have an outer Ø of 226 mm and an installation depth of 100 mm. The required cutout in the ceiling material is 200 mm Ø. The speakers are round and thus fit into standardized ceiling openings. Installation is done by inserting into the ceiling and then connecting via screw terminals. The integrated amplifier unit requires no additional installation, as it is already mounted inside the speaker enclosure.

Advantages in operation

The RCA-220C system offers a compact, integrated solution for small to medium-sized rooms. Direct amplification at the speaker reduces losses and distortions. The adjustable gain and input levels allow flexible adaptation to different requirements. The protection circuits enhance operational safety. The low installation complexity and the option to match RAL colours make the system a flexible and aesthetically pleasing solution for professional sound applications.

Technical data
Protection circuitThermal, short-circuit, reverse polarity
Output power at 24V2x 20/10 W
Power consumption (24 V DC / max)45mA / 2A
ShapeRound
Dimensions (Ø x H)Ø 226 mm, 100 mm (insertion depth)
Speaker diameter165 mm
Cutout diameter Ø200 mm
Impedance8 Ohm, 2-way coaxial chassis
Audio inputsasymmetric
Frequency response45 - 20.000 Hz (-3dB)
Input level0dB, -6dB, -12dB, -16dB
Operating voltage10-28 V
Rotary switch 4 gain stages20dB, 26dB, 32dB, 36dB
ConnectionsScrew terminals up to 2.5 mm²


Product data sheet
Datasheet for RCS Audio-Systems RCA-220 C, EAN: 4250458282602

Questions & answers

What is the delivery time of RCS Audio-Systems RCA-220 C Active in-ceiling speaker set 2x 20/10 W?

The article RCS Audio-Systems RCA-220 C Active in-ceiling speaker set 2x 20/10 W is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems RCA-220 C to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems RCA-220 C Active in-ceiling speaker set 2x 20/10 W always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems RCA-220 C Active in-ceiling speaker set 2x 20/10 W if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of RCS Audio-Systems RCA-220 C Active in-ceiling speaker set 2x 20/10 W we can offer you a price of 290,57 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
