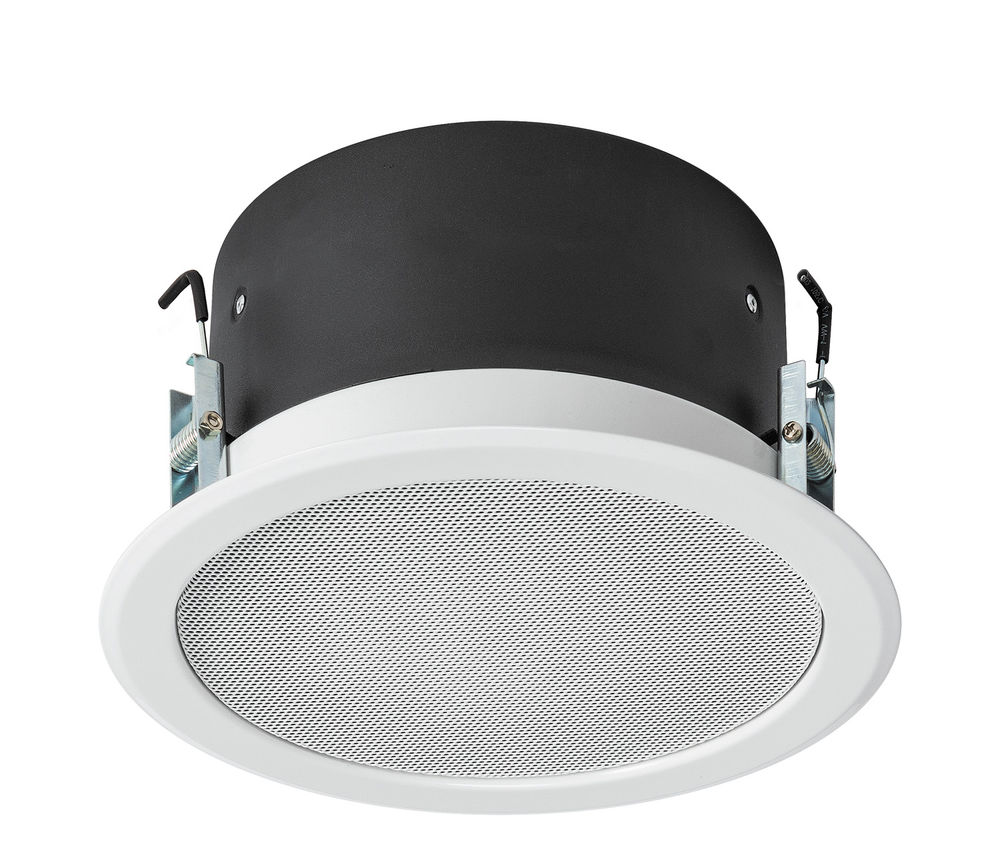

RCS Audio-Systems RC-612 EN EN 54-24 built-in alarm loudspeaker, 2x 6 W, 100 V, with metal fire pot
|
93,10 EUR |
|||||||||||
|
( 110,79 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1927684 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | RC-612 EN | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems RC-612 EN:
Its plastic-coated metal housing, integrated fire dome, and moisture-impregnated loudspeakers ensure long-term durability and fire protection. Installation is fast and simple via a spring clamp system, suitable for ceiling thicknesses from 10 to 45 mm. Two 2-pole ceramic terminals with thermal fuses provide additional safety.
Thanks to the dual-speaker design, the RC-612 EN delivers excellent speech intelligibility and is also well-suited for background music in public buildings, schools, and assembly areas. Compliance with British Standard BS 5839 Part 8 reinforces its suitability for international installations.
Technical Specifications:
- Model: RC-612 EN
- Rated power: 2 × 6 W (music power: 2 × 15 W)
- Power taps (100 V): 2 × 6 / 3 / 1.5 W
- Frequency range: 120 – 23,500 Hz
- SPL (1 W/1 m): 104.8 dB
- SPL Pmax (4 m): 100.5 dB
- Sensitivity (1 W/4 m, EN 54-24): 80.8 dB
- Dispersion angle –6 dB (1/2/4 kHz):
- 180° / 70°(vertical), 80°(horizontal) / 32°(v), 41°(h)
- Cutout diameter: Ø 243 mm
- External dimensions / installation depth: Ø 267 mm × 138 mm
- Temperature range: –20 °C to +55 °C
- Protection class: IP21C
- Weight: 2.2 kg
- Color: White (approx. RAL 9010)
Special Features:
- Certified to EN 54-24:2008
- Supports A/B line wiring (DIN EN 50849 / VDE 0833-4 compliant)
- Dual drivers and transformers in one enclosure
- Plastic-coated metal housing with moisture protection
- Includes fire dome for enhanced fire resistance
- Easy spring-clip mounting (10–45 mm ceiling thickness)
- 2x 2-pole ceramic terminals with thermal fuses
- Complies with BS 5839 Part 8
Included in Delivery:
- 1x RC-612 EN ceiling speaker
- 1x Metal fire dome
- 2x ceramic terminals, 2x thermal fuses
- Installation manual
