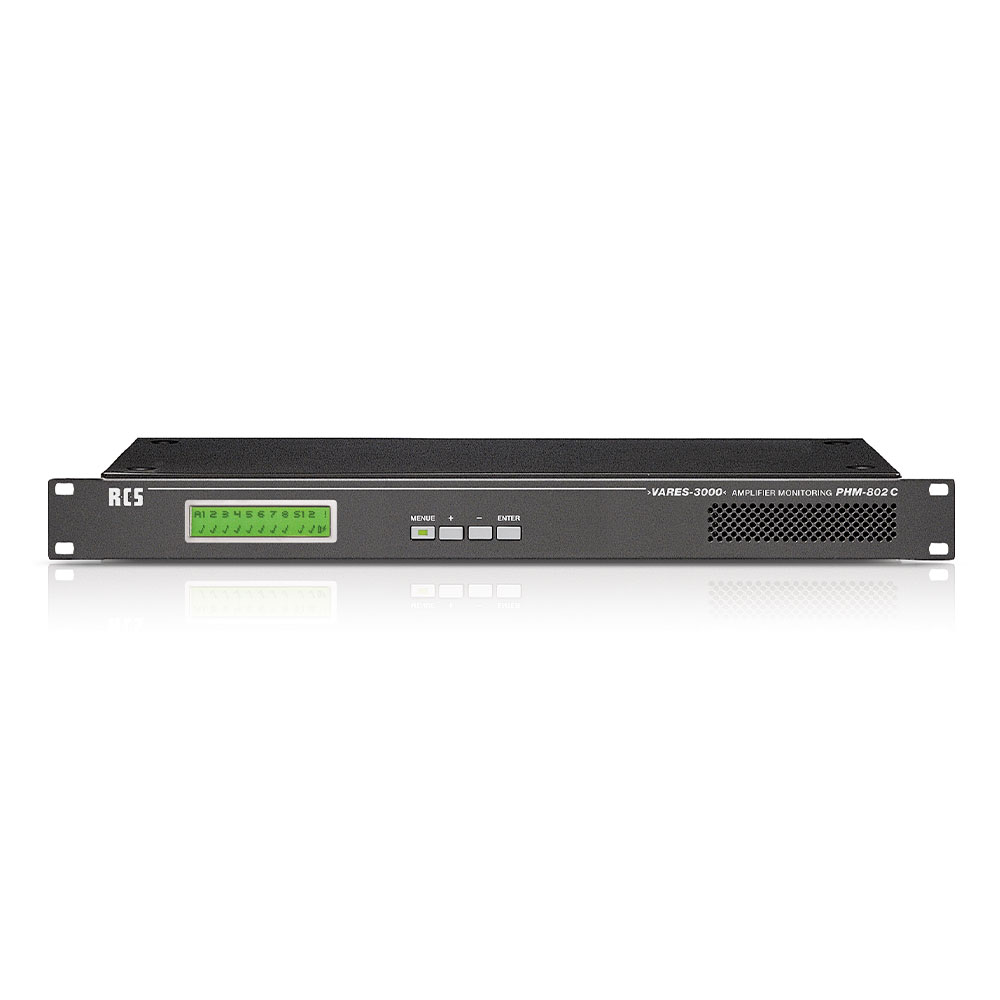

RCS Audio-Systems PHM-802 C ›VARES-3000‹ amplifier monitoring, 1 U, digital
|
1.320,50 EUR |
|||||||||||
|
( 1.571,40 EUR incl. VAT ) ≈ £1,103.94 | ≈ $1,451.23 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 102316 | ||||||||||
| Mfg Part No: | PHM-802 C | ||||||||||
| UPC/EAN: | 4250458235301 | ||||||||||
| Weight: | 1.5 kg | ||||||||||
| Type: | PHM-802C | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems PHM-802 C:
Applications
The PHM-802C is intended for use in professional sound systems, particularly in buildings with emergency warning systems such as hospitals, administrative buildings, or public facilities. It ensures the reliability of voice alarm systems by detecting faults in amplifiers and responding accordingly. Configuration is performed via a self-explanatory menu with four buttons on the front panel, eliminating the need for additional software or a computer for commissioning. Fault messages are displayed until the error is resolved, enabling quick fault localization.
Functions and Equipment in Detail
The device monitors up to 8 call amplifiers and 2 fault amplifiers. Configuration is flexible: either all 8 amplifiers assigned to one fault amplifier, or two groups of 4 amplifiers each, each with its own fault amplifier. Operation without fault amplifiers is also possible. The measurement intervals are adjustable (15, 30, 45, 60, 90 seconds), with an optional bus option allowing for a 5-second interval. The switching capacity is 6 A per channel, sufficient to safely switch the amplifiers. The monitoring power of the integrated amplifier stage is 1.3 W RMS, sufficient to monitor the amplifier outputs via a speaker.
Technology Explained Simply
The operation is based on periodic querying of the amplifiers via a pilot tone, set to the respective frequency range. If an amplifier does not correctly reproduce the pilot tone, a fault is detected and the device automatically switches to the fault amplifier. The power supply is 24 V DC, with the device designed for operation with a switching power supply (230 V AC → 24 V DC) and includes an additional emergency power input for 24 V DC to ensure continued operation during a power failure. The power consumption is 5 W, ensuring efficient energy use.
Compatibility and Accessories
The PHM-802C is part of the VARES-3000 system and can be integrated into the system via an optional RS485 bus interface (PHM-485 B). This enables central monitoring and configuration via the ConfigV7620 cm ( 3000 inch ) software. Optionally, the monitor module PMU-802A can be installed to monitor all 10 amplifier outputs. Channel selection and volume control can be managed via the device buttons or via a connected PC using the "ConfigV3000 software.
Mounting and Installation
The device is designed for 48,3 cm ( 19 inch ) rack mounting and occupies 1 HE (height unit). Dimensions are 483 x 44 x 171 mm (W x H x D). All connections are equipped with screw connectors, suitable for secure and user-friendly installation. Installation requires no additional tools or special expertise, as operation is performed via the menu and buttons.
Operational Advantages
The PHM-802C offers high operational reliability through automatic fault detection and correction. The clear display of status messages on the screen enables quick diagnosis. The ability to combine multiple PHM-802C devices expands monitoring capacity. Integration into the VARES-3000 system enables central control and monitoring, simplifying maintenance and configuration. The emergency power supply ensures continued functionality during power outages, which is critical for emergency warning systems. Batteries are not included in the delivery scope.
| Technical data | |
| Power supply | 24 V DC |
| Measurement interval | Adjustable 15/30/45/60/90 sec. (5 sec. with bus option) |
| Listening power | Output stage 1.3W RMS |
| Switching power | 6 A per channel |
| Interfaces | RS485 bus (optional) on RJ-45, fault alarm output, RS232 for firmware update |
| Dimensions (W x H x D) | 483 x 44 x 171 mm; 1 HE |
| Power consumption | 5 W |
| Height units | 1 HE |
| Indication | LCD Dot Matrix 2x24, backlit, contrast adjustable |
| Power supplies | switching power supply / battery (emergency power supply 24 V) |
| Monitored amplifiers | 8 + 1 (emergency) or 2x 4 + 2x 1 (emergency) |
| System compatibility | VARES-3000 |
| Pilot tone | 19/19.5/20/20.5/21/21.5/22/22.5/23/23.5/24/24.5/25 kHz |
| 19" rack mounting | |
