RCS Audio-Systems PFM-308 C ›VARES-3000‹ fire department desk station, digital

Your rating:
Average rating
product review for RCS Audio-Systems PFM-308 C ›VARES-3000‹ fire department desk station, digital
( 4.4 / 5 ) 23 ratings
RCS Audio-Systems PFM-308 C
This image may differ from the desired article.
1.071,60 EUR
( 1.275,20 EUR incl. VAT )
≈ £892.64  |  ≈ $1,175.55
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems PFM-308 C ›VARES-3000‹ fire department desk station, digital
Datasheet:file_download Download
Lieske Part No.:102222
Mfg Part No: PFM-308 C
UPC/EAN: 4250458272702
Weight:1.1 kg
Type:PFM-308C
Graduated prices net
From piecesPrice per pieces
2999,27 EUR
4926,93 EUR
6854,60 EUR
8782,27 EUR

Product information for RCS Audio-Systems PFM-308 C:

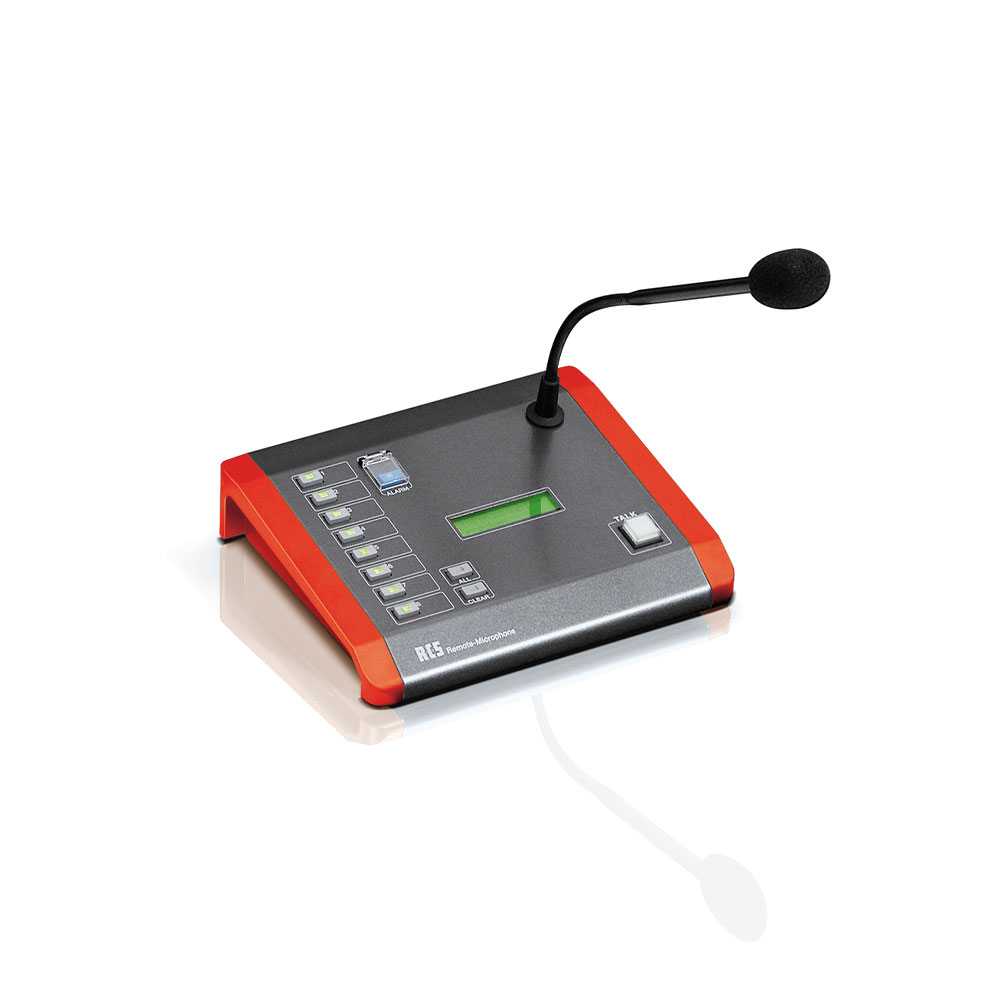

The fire department desk station PFM-308 C from RCS Audio-Systems is a digital communication device for use in emergency warning systems, particularly in the field of fire department and security monitoring. It is part of the VARES-3000 system and serves as a central station for controlling speaker groups and issuing alarm and evacuation commands. The station features integrated electronic monitoring in accordance with VDE 0828 / EN 50849, ensuring reliable functional control in emergency situations. The red side panels indicate its specific use in fire department applications and support quick identification during operations.

Applications

The PFM-308 C is designed for use in buildings equipped with emergency warning and evacuation systems, particularly in administrative buildings, hospitals, schools, or industrial facilities. It enables targeted alarm activation of individual rooms or entire building zones via up to 8 programmable speaker groups. The station can also retrieve pre-recorded messages from the text module PMM-132 B of the central unit PSS-224 C, allowing standardized alarm messages such as evacuation" or "fire to be transmitted. The integrated busy indicator ensures that simultaneous speaking attempts are avoided.

Functions and Equipment in Detail

The station features 8 memory keys, which are freely programmable. Each key can be assigned to any speaker line, group, or alarm function such as gong or alarm tone. The large speaking key is equipped with an integrated LED for the busy indicator, facilitating use in team operations. Additionally, an All-Call key and a covered alarm key are provided, intended for emergency situations. Microphone monitoring is performed via the integrated monitoring module PMO-400 B, which continuously checks the microphone's functionality.

Technology Explained Simply

The microphone is an electret condenser microphone with a cardioid polar pattern, designed for targeted voice pickup and minimal pickup of background noise. The integrated preamplifier includes a gate to suppress background noise and a compressor to improve speech intelligibility and prevent overloading. The frequency bandwidth of 100 to 15,000 Hz ensures clear and natural voice transmission. Power supply is provided via the external bus of the central unit PSS-224 C at 24 V DC, eliminating the need for a separate power source. The station is designed to be feedback-resistant, enabling clear communication even at high volume levels.

Compatibility and Accessories

The PFM-308 C is designed for use in the VARES-3000 system and can be connected to any bus socket with a 25-pin Sub-D connector (types PBA-, PWS-, PAS-300A). Configuration is performed using the ConfigV3000 software, accessible from any bus connection. Firmware updates can be carried out via the integrated update socket on the device. The station is compatible with the central unit PSS-224 C and the text module PMM-132 B.

Mounting and Installation

Installation is performed via the 25-pin Sub-D connector to a bus socket of the VARES-3000 system. The station is symmetrically designed and can be mounted at any location within the building. Power supply is provided via the bus, so no additional power lines are required. Configuration is done using the ConfigV3000 software, allowing flexible assignment of memory keys and functions according to specific requirements.

Advantages in Operation

The PFM-308 C offers intuitive operation with clear function keys and a clear busy indicator display. The freely programmable memory keys allow individual adaptation to the specific building structure. The integrated microphone monitoring ensures high reliability in emergency situations. The use of the VARES-3000 system ensures centralized control and monitoring of all stations, guaranteeing efficient communication during alarms. The station is MADE IN GERMANY and complies with standards EN 54-16, VDE 0833-4, VDE 0828, and DIN EN 50849.

Technical data
Bus connections25-pin Sub-D cable; bus connector socket PBA-,PWS-, PAS-300A
Current supplyvia external bus from PSS-224C, 24V DC
Control elements8 keys
Directional characteristicKidney
Dimensions (W x H x D)225 x 320 x 180 mm
Frequency range100 - 15.000 Hz
System compatibilityVARES-3000


Product data sheet
Datasheet for RCS Audio-Systems PFM-308 C, EAN: 4250458272702
