RCS Audio-Systems BC-110R Cabinet Speaker, 10 W, white, with controller, 100 V
|
85,50 EUR |
|||||||||||
|
( 101,75 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 200781 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BC-110R | ||||||||||
| Weight: | 0.2 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems BC-110R:
Product Description (English):

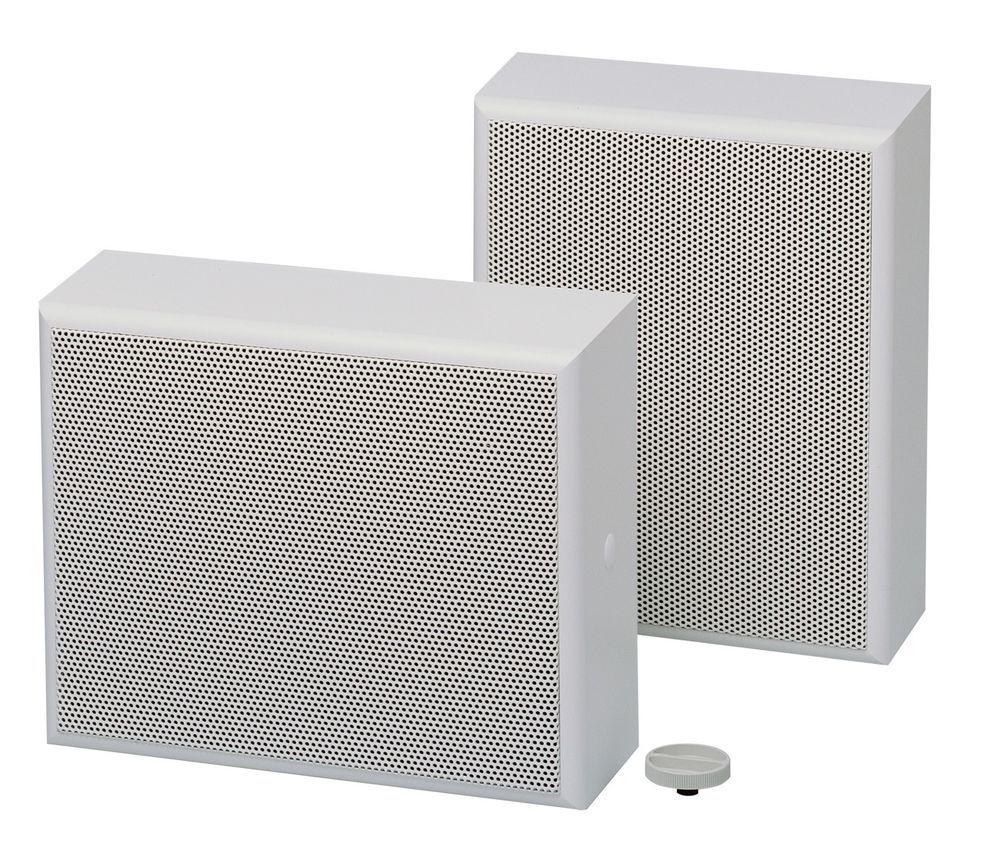

The BC-110 R is a high-quality cabinet loudspeaker that excels in both technical performance and modern design. Engineered using advanced plastic manufacturing techniques, it features a durable, impact- and scratch-resistant housing that minimizes unwanted vibrations and resonance. Its softline-style body and acoustically transparent perforated front panel make it architecturally pleasing and ideal for unobtrusive installations.
At its core is a powerful and wide-range 165 mm speaker driver with an integrated high-frequency cone. Paired with a premium 100 V transformer, the BC-110 R delivers excellent speech intelligibility and balanced music playback.
A key feature is the built-in low-impedance volume control, discreetly located at the bottom or side (depending on orientation). The control is accessed via a screwdriver under a protective cap, or optionally operated with the included control knob.
The speaker's installation is simple yet tamper-resistant: just lift the front grille with a screwdriver to access the concealed mounting screws. It can be mounted horizontally, vertically, or even on ceilings. Internal space is provided for optional relay integration or later upgrades.
Technical Data:
- Model: BC-110 R
- Product type: Cabinet loudspeaker with integrated volume control
- Rated power: 10 W (15 W program power)
- 100 V taps: 10 / 5 / 2.5 W
- Frequency response (±10 dB): 90 – 16,000 Hz
- SPL at 1 W / 1 m: 96 dB
- Max SPL (Pmax / 1 m): 107 dB @ 5 kHz
- Dispersion angle (-6 dB):
- 1 kHz: 90°
- 4 kHz: 55°
- 8 kHz: 40°
- Speaker driver: 165 mm / 8 Ohms
- Dimensions (H × W × D): 250 × 200 × 85 mm
- Weight: approx. 1.7 kg
- Color:
- Enclosure: Alpine white
- Front grille: White
- Volume control: Built-in low-impedance control, recessed with removable cap
- Mounting: Wall or ceiling mount, horizontal or vertical
- Enclosure material: Impact- and scratch-resistant plastic, paintable
- Special features: Space inside for relay or module retrofit
Included Items:
- 1x BC-110 R cabinet loudspeaker with built-in volume control
- 1x Control cap
- 1x Optional control knob
- 1x Mounting accessories
Special Features:
- Architect-approved softline design
- Feedback-resistant, wide-range audio performance
- Integrated volume control with concealed adjustment
- Simple and secure mounting design
- Upgradeable internal layout for future componentsColor:
- Cabinet: Alpine white
- Grille: White
Included in Delivery:
- BC-110 R speaker
- Control cap and knob for volume adjustment
