Portech MV-370-4G GSM/UMTS-VoIP Gateway 1x SIM / 1x LAN

Your rating:
Average rating
product review for Portech MV-370-4G GSM/UMTS-VoIP Gateway 1x SIM / 1x LAN
( 4 / 5 ) 1 ratings

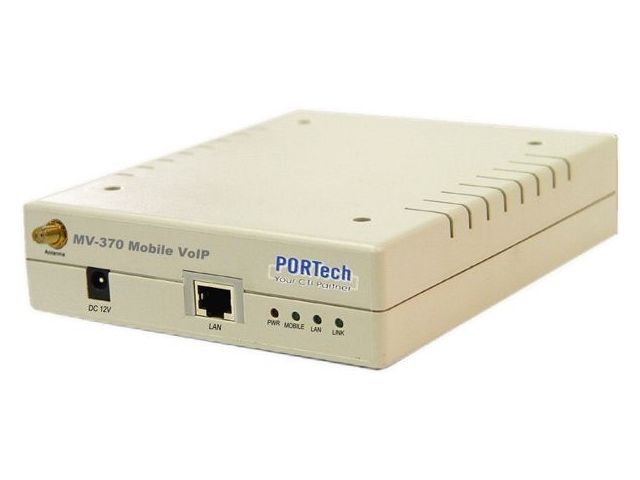

Portech MV-370-4G
This image may differ from the desired article.
348,18 EUR
( 414,33 EUR incl. VAT )
≈ £290.03  |  ≈ $381.95
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Portech MV-370-4G GSM/UMTS-VoIP Gateway 1x SIM / 1x LAN
Lieske Part No.:1632521
Mfg Part No: MV-370-4G
Weight:0.3 kg

Product information for Portech MV-370-4G:

The Portech MV-370-4G is a 1-Port VoIP GSM/UMTS/LTE Gateway that enables the connection between VoIP networks and mobile networks. It serves as a bridge for converting VoIP calls into mobile calls (Call Termination) and for converting mobile calls into VoIP calls (Call Origination). The device supports integration into existing VoIP infrastructures such as Asterisk, Trixbox or SIP-proxy servers and enables communication over the Internet, so SIM cards do not need to be installed directly in the gateway. This allows the gateway to be deployed at various locations, while the management and monitoring of all SIM cards can be done centrally.

Applications
This gateway is designed for businesses and service providers requiring a flexible and scalable connection between fixed and mobile networks. It is suitable for applications such as call centers, security services, remote maintenance systems, or for integrating mobile communication channels into existing IP telephony systems. The global support for LTE-FDD and LTE-TDD bands, as well as WCDMA and GSM frequencies, makes it suitable for use in various regions worldwide.

Functions and Features in Detail
The device offers 50 entries for routes from LAN to mobile (LAN → MOBILE) and 50 entries for routes from mobile to LAN (MOBILE → LAN). It supports single-stage dialing as well as two-stage dialing in two modes: assigned mode and free mode. Configuration and status queries can be performed via voice response by calling from a mobile phone. The functions are configurable via a web interface, enabling centralized control. The gateway supports SMS message reception and sending, and allows control via AT commands, facilitating integration into custom software solutions.

Technology Explained Simply
The gateway operates according to the SIP (Session Initiation Protocol) standard as defined in RFC2543 and RFC3261, enabling connection with other SIP-compatible devices and servers. It supports various codec formats such as G.711 u-Law, G.711 a-Law, G.729A and G.729A/B to optimize voice quality. Additional features such as VAD (Voice Activity Detection), CNG (Comfort Noise Generation), AEC (Acoustic Echo Cancellation), and LEC (Line Echo Cancellation) improve sound quality and reduce interference. Support for NAT-Traversal, STUN, and uPnP simplifies network configuration in complex environments. The IP address can be assigned statically, via DHCP, or PPPoE.

Compatibility and Accessories
The gateway is designed for use with SIM cards connected via the Internet. It is compatible with various VoIP systems and SIP servers. Support for LTE-FDD bands B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, LTE-TDD bands B38, B39, B40, B41, WCDMA bands B1, B2, B4, B5, B6, B8, B19, and GSM bands B2, B3, B5, B8 enables use in a wide range of mobile networks worldwide. Communication occurs via TCP/IP protocols such as IP, TCP, UDP, RTP, RTCP, ICMP, ARP, RARP, SNTP, DHCP, DNS Client, IEEE802.1P/Q, ToS/DiffServ.

Installation and Mounting
Installation is performed via a LAN connection, with the gateway configured through a web interface. Setup requires entering network settings, SIP server parameters, and routing rules. The configuration is accessible via a web browser, allowing setup even from remote locations. Device configuration is done via the web interface, where all functions such as SMS processing, call forwarding, and voice responses are controlled through the interface.

Operational Advantages
Thanks to central SIM card management and the ability to operate the gateway at various locations, the MV-370-4G offers high flexibility. Support for 4G LTE and global frequency bands ensures stable connectivity in different regions. Integration into existing VoIP systems requires no additional hardware, enabling efficient use of infrastructure. The web-based configuration and the ability to perform status queries via voice response simplify maintenance and monitoring of the device.

General
Number of ports1 Port
FunctionVoIP to GSM/UMTS/LTE and vice versa
Supported protocolsSIP (RFC2543, RFC3261), TCP/IP, IP, TCP, UDP, RTP, RTCP, ICMP, ARP, RARP, SNTP, DHCP, DNS Client, IEEE802.1P/Q, ToS/DiffServ, NAT Traversal, STUN, uPnP, IP Assignment, Static IP, DHCP, PPPoE
Codec supportG.711 u-Law, G.711 a-Law, G.729A, G.729A/B
Speech qualityVAD, CNG, AEC, LEC, packet loss
Routing settings50 LAN → MOBILE, 50 MOBILE → LAN
LTE FDD bandsB1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE TDD bandsB38/B39/B40/B41
WCDMA bandsB1/B2/B4/B5/B6/B8/B19
GSM bandsB2/B3/B5/B8
CompatibilityAsterisk, Trixbox, SIP Proxy Server
IP address assignmentStatic, DHCP, PPPoE
Callback functionYes
CDR specificationYes


Questions & answers

What is the delivery time of Portech MV-370-4G GSM/UMTS-VoIP Gateway 1x SIM / 1x LAN ?

The article Portech MV-370-4G GSM/UMTS-VoIP Gateway 1x SIM / 1x LAN is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Portech MV-370-4G to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Portech MV-370-4G GSM/UMTS-VoIP Gateway 1x SIM / 1x LAN always at the best possible price. We can give you a discount of 2% on Portech MV-370-4G GSM/UMTS-VoIP Gateway 1x SIM / 1x LAN if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
