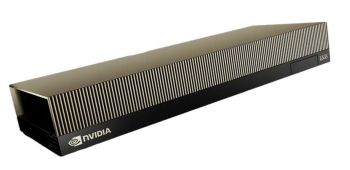

PNY TCSRTXPRO6000SE-PB 96GB RTX PRO 6000 Blackwell Server Edition (passive) 4xDP content_copy

The PNY NVIDIA RTX PRO 6000 Blackwell Server Edition is a professional graphics card designed for use in servers and data centers, based on the NVIDIA Blackwell architecture. It is specifically designed for AI workloads, visual computing, and data-intensive applications, offering 96 GB of GDDR7 memory with ECC functionality for high capacity and reliability. The card features passive cooling, making it suitable for use in enclosed server environments where fan noise should be avoided. The PCI Express 5.0 x16 interface enables high data transfer rates and supports modern, high-performance applications.

Applications
This graphics card is designed for enterprises engaged in artificial intelligence, 3D rendering, scientific computing, or multimodal AI infrastructure. It is used in industries such as healthcare, manufacturing, geosciences, media production, and live streaming. Support for NVIDIA AI Enterprise and NVIDIA Omniverse enables the development and deployment of AI agents, generative models, and simulated environments. The card is also suitable for physical AI applications and computer vision.

Features and Specifications in Detail
The RTX PRO 6000 Blackwell Server Edition features 24,064 CUDA cores, 752 fifth-generation Tensor Cores, and 188 fourth-generation RT Cores. The fifth-generation Tensor Cores deliver up to five times higher performance in processing LLM models compared to the previous generation, supported by FP4 precision, which increases processing speed and reduces memory requirements. The fourth-generation Ray-Tracing Cores double the rate of ray-triangle intersections, enabling photorealistic, physically accurate scenes and immersive 3D designs. The card includes four NVENC and four NVDEC engines of the ninth and sixth generations, respectively, with support for 4:2:2 encoding and decoding, which is essential for professional video applications.

Technology Explained Simply
The graphics card uses GDDR7 memory with a bandwidth of up to 1.6 TB/s, enabling fast processing of large data volumes. The 96 GB memory capacity allows processing of large models and complex 3D scenes without performance degradation. The passive cooling ensures silent operation, as there are no fans. The PCIe Gen 5 interface offers double the bandwidth of PCIe Gen 4, accelerating data transfer between CPU and GPU. The Multi-Instance GPU (MIG) feature allows the card to be divided into up to four fully isolated instances, each with 24 GB of memory. This enables simultaneous execution of different applications or users with dedicated resources.

Compatibility and Accessories
The graphics card is designed for server platforms with a PCI Express 5.0 x16 interface. It is compatible with NVIDIA AI Enterprise and NVIDIA Omniverse, enabling integration into existing AI and visualization infrastructures. The card features four DisplayPort 2.1 connectors, which can be used to connect monitors or displays. No additional accessories are included in the package.

Installation and Mounting
The graphics card has a Full-Height, Full-Length form factor and requires two PCIe slots. Its dimensions are 10.5 × 4.4 inches. Installation is performed in a server with a compatible PCIe slot. Power is supplied via a single PCIe CEM5 16-pin connector. The maximum power consumption is 600 W, with configurable power settings ranging from 400 to 600 W. The passive cooling requires sufficient airflow within the server enclosure.

Operational Advantages
The card offers high scalability and reliability for critical enterprise applications. The MIG feature enables efficient resource utilization and secure application isolation. The passive cooling reduces operational noise and maintenance requirements. The high memory capacity and bandwidth ensure low latency when processing large models and complex scenes. Support for FP4 precision and DLSS 4 with multi-frame generation improves efficiency and image quality in supported applications.

Key Terms in the Text: graphics card, server, NVIDIA Blackwell architecture, GDDR7 memory, passive cooling, PCI Express 5.0, MIG, FP4 precision, DLSS 4.

Package Contents: The graphics card is delivered without additional accessories. No cables, adapters, or documentation are included in the package.
