Planet 2-Port SFP+ Managed Media Converter XT-915A
|
174,72 EUR |
|
|
( 207,92 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1198256 |
|---|---|
| Mfg Part No: | XT-915A |
| UPC/EAN: | 4711605287319 |
| Weight: | 0.7 kg |

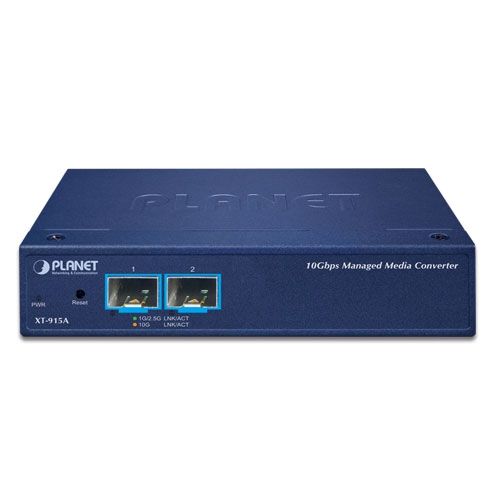

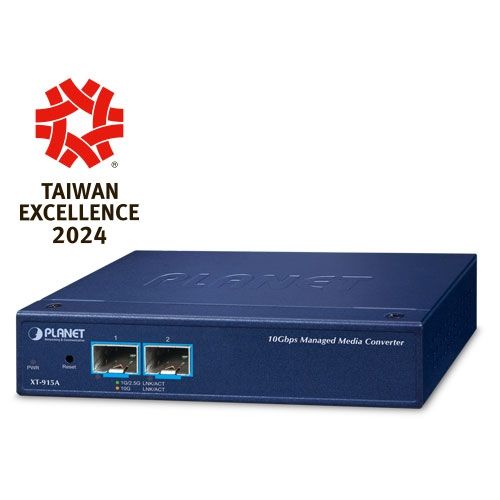

Product information for Planet XT-915A:
The PLANET XT-915A is a high-performance industrial-grade media converter featuring dual 10G SFP+ ports and secure remote management capabilities. It is the industry’s first 10G converter with standalone HTTPS, SSH, SNMPv3, and Telnet control, allowing IT teams to manage fiber connections without local access.
Designed for advanced telecom, ISP, and enterprise fiber deployments, it supports G.8032 ERPS (<500ms recovery), VLAN, QoS, and intelligent diagnostics. Integrated with PLANET UNI-NMS and CloudViewer, it allows centralized monitoring and control across multiple locations.
Ports:
Mechanical & Environmental:
Designed for advanced telecom, ISP, and enterprise fiber deployments, it supports G.8032 ERPS (<500ms recovery), VLAN, QoS, and intelligent diagnostics. Integrated with PLANET UNI-NMS and CloudViewer, it allows centralized monitoring and control across multiple locations.
Key Specifications:
Ports:
- 2x 10G/2.5G/1G/100BASE-X SFP+ ports
- Reset Button (<5 sec: reboot, >5 sec: factory reset)
- LED Indicators: PWR, Link/ACT (1G/2.5G/10G)

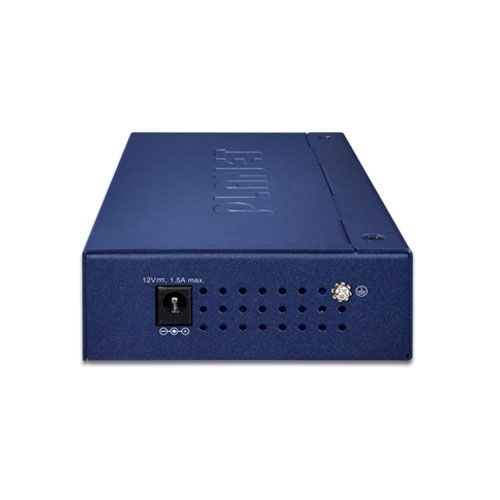

- Power: External 12VDC, 1.5A adapter
Switching Specs:
- Architecture: Store-and-Forward
- Switching Fabric: 40 Gbps
- Throughput: 29.76 Mpps @ 64 Bytes
- Jumbo Frame Support: up to 12K
- MAC Table: 16K entries
- Shared Data Buffer: 12Mbit
Layer 2 Features:
- VLAN: IEEE 802.1Q tagged VLAN, up to 256 groups (4096 IDs)
- Q-in-Q Provider Bridging (802.1ad)
- Link Layer Discovery Protocol (LLDP)
- ITU-T G.8032 ERPS Ring (software-based <500ms recovery)
- Storm Control: Broadcast, Multicast, Unknown Unicast
- Link Fault Pass-through for fault awareness
Quality of Service (QoS):
- 8 priority queues per port
- Ingress/Egress Rate Control: 16 Kbps – 10 Gbps
- Classification by 802.1p, DSCP, IP Precedence, TCP/UDP port, App
- Scheduling: Strict Priority, Weighted Round Robin (WRR)
Management:
- IPv4 and IPv6 Dual Stack
- Interfaces:
- Web (HTTP/HTTPS), CLI (Telnet), SNMP v1/v2c/v3, SSHv2, TLSv1.2
- Diagnostics:
- ICMPv4/v6, SFP-DDM, Syslog, SNMP Traps, Event Logs
- Tools & Platforms:
- PLANET Smart Discovery
- PLANET UNI-NMS, CloudViewer Mobile App
- Firmware: Dual Image support
- User Privilege Management
Security:
- Access Control via IP Address
- Static MAC and MAC Filtering
- Secure Management via SSHv2, HTTPS, SNMPv3
Mechanical & Environmental:
- Housing: Compact metal enclosure
- Dimensions: 135 x 87.8 x 32 mm
- Weight: 407 g
- Mounting: Wall-mount or DIN-rail (optional)
- Operating Temp: 0 – 50 °C
- Storage Temp: -10 – 70 °C
- Humidity: 5 – 95% (non-condensing)
- ESD Protection: 4KVDC contact / 8KVDC air
Target Use Cases:
- FTTH, FTTC, FTTB fiber deployments
- Data center fiber uplinks
- Remote ISP-managed media conversion
- Secure fiber backbone extensions
Questions & answers
What is the delivery time of Planet 2-Port SFP+ Managed Media Converter XT-915A?
The article Planet 2-Port SFP+ Managed Media Converter XT-915A is currently in stock
According to our experience the article is ready for dispatch within 1 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet XT-915A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Planet 2-Port SFP+ Managed Media Converter XT-915A always at the best possible price. We can give you a discount of 2% on Planet 2-Port SFP+ Managed Media Converter XT-915A if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
