PLANET WGS-804HPT – Compact 8-Port Gigabit Industrial PoE+ Switch with Layer 2 Management

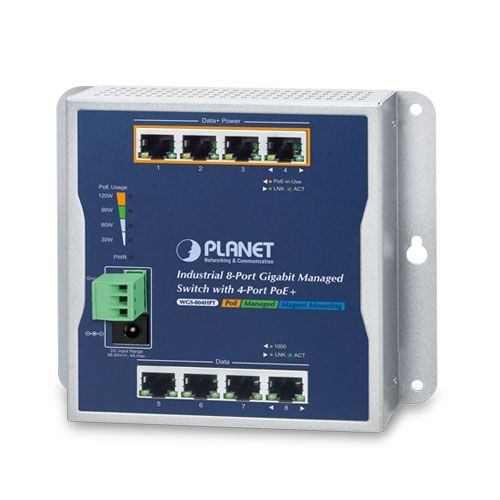

The PLANET WGS-804HPT is an 8-port Gigabit managed industrial switch with four PoE+ ports, providing up to 144 watts total PoE power. Built for harsh environments with a temperature range from -40 to 75 °C, it offers advanced features in a rugged IP30-rated metal housing. Its slim, flat design allows easy installation in wall enclosures, panels, or confined locations using wall-mount, magnet, or DIN rail options.

Ideal for IP surveillance, building automation, and IoT deployments, the WGS-804HPT includes intelligent PoE scheduling, PD alive check, real-time PoE LED indicators, and support for extended 250-meter PoE connections. It features secure Layer 2 switching with VLANs, ring protection (ERPS), link aggregation, IGMP/MLD snooping, and robust network security protocols like 802.1X and ACLs.

Technical Overview:

Network Interfaces:

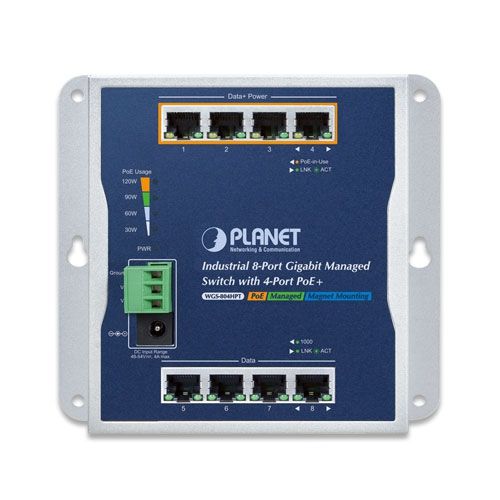

• 8x 10/100/1000BASE-T RJ45 (Ports 1–4 with PoE+, Ports 5–8 standard)
• Auto-negotiation, Auto MDI/MDI-X

Power over Ethernet:

• IEEE 802.3af/at compliant
• Up to 36W per PoE+ port
• Total PoE budget: 144W
• PoE Management: Scheduling, PD Alive Check, Power Limiting, Extend Mode
• 250m PoE extend mode
• Front panel PoE Power Usage LEDs: 30W, 60W, 90W, 120W

Switching Specs:

• Switching Fabric: 16Gbps
• Throughput: 11.9Mpps
• MAC Table: 8K entries
• Jumbo Frame: 10KB
• Data Buffer: 4.1Mbit
• Architecture: Store-and-Forward

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, Private, Voice, Management VLAN, GVRP
• Spanning Tree: STP, RSTP, MSTP with BPDU Guard
• Link Aggregation: 4 groups with up to 4 ports each (LACP/Static)
• IGMP/MLD Snooping (v1/v2/v3)
• Loop protection, LLDP/LLDP-MED
• ERPS (G.8032 Ethernet Ring)

Quality of Service:

• 8 priority queues
• Classification by 802.1p, DSCP, IP precedence
• Port-based rate control
• WRR and strict priority scheduling

Security:

• IEEE 802.1X, RADIUS, TACACS+
• Access Control Lists: IP- and MAC-based
• DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
• DoS prevention, Port security

Management:

• Web GUI, CLI via Telnet
• SNMP v1/v2c/v3
• Secure Access: SSHv2, TLSv1.2
• SNMP Traps, Syslog
• PLANET NMS, Smart Discovery, CloudViewer
• Tools: PoE LED Indicators, Cable Diagnostics, Remote Ping
• Configuration & firmware via HTTP/TFTP

Power Supply:

• 48–54V DC (max 4A)
• Redundant power via terminal block or DC jack
• Max Power Consumption: ~155W (full PoE load)

Mechanical / Environment:

• IP30-rated metal housing

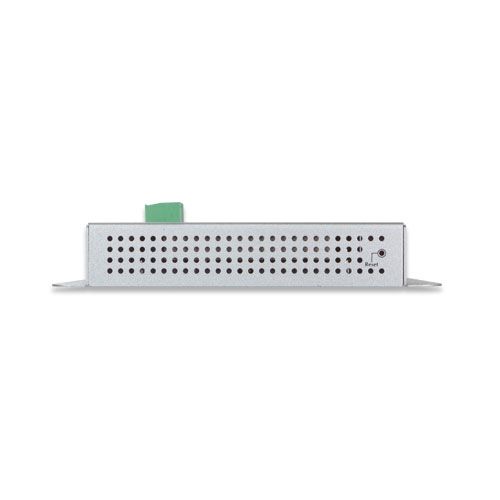

• Dimensions: 148 x 24.2 x 134 mm
• Weight: 532g
• Operating Temperature: -40 to 75 °C

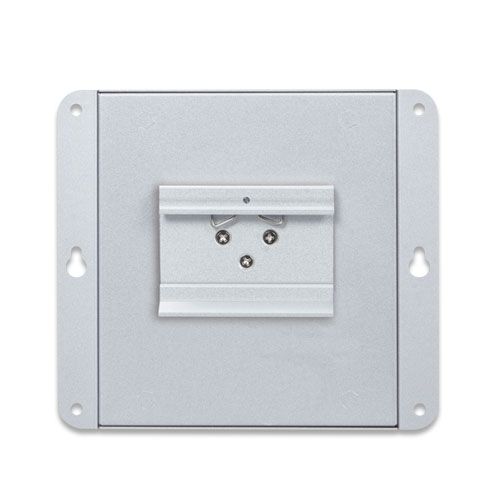

• Mounting: Wall, Magnetic, DIN Rail
• ESD Protection: 8KV

Package Contents:

• WGS-804HPT switch
• Quick Installation Guide
• 3-pin terminal block
• Wall mount kit, DIN rail kit, Magnet kit
• 8x RJ45 dust caps
