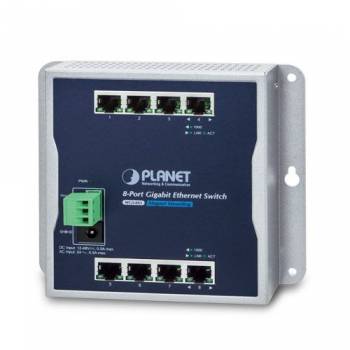

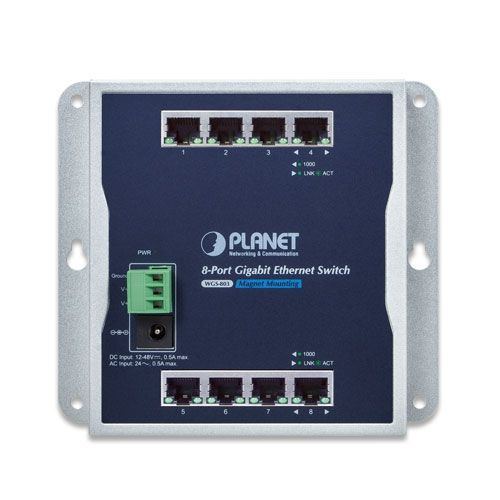

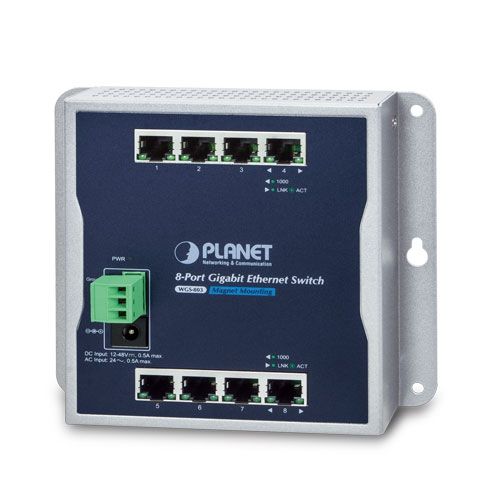

PLANET Industrial 8-Port 10/100/1000T Wall-mount Switch

The PLANET WGS-803 is a rugged, industrial-grade 8-port Gigabit Ethernet switch ideal for building automation, IoT deployments, and IP surveillance applications. Its slim, flat form factor with IP30 metal enclosure makes it perfect for wall enclosures and electrical boxes in space-constrained environments. With robust performance, including 16Gbps switch fabric and support for 9K jumbo frames, the WGS-803 guarantees high-speed, lossless data transmission even in demanding conditions.

Equipped with dual power inputs (12–48V DC or 24V AC) and automatic power failover, the switch ensures uninterrupted operation, ideal for mission-critical industrial and SOHO/home deployments. Its plug-and-play functionality, paired with flexible installation options (wall, magnetic, DIN rail), makes it a highly adaptable solution for modern Ethernet networks.

Technical Overview:

Network Interfaces:

• 8x 10/100/1000BASE-T RJ45 ports
• Auto-negotiation and auto MDI/MDI-X

Switching Features:

• Switch Fabric: 16Gbps non-blocking
• Throughput: 11.9Mpps
• Store-and-forward architecture
• 8K MAC address table
• Jumbo Frame support: up to 9KB
• Data Buffer: 1Mbit
• Flow Control: IEEE 802.3x (Full Duplex) / Back Pressure (Half Duplex)

Housing & Installation:

• IP30-rated metal enclosure
• Dimensions: 148 x 24.2 x 134 mm
• Weight: 498g

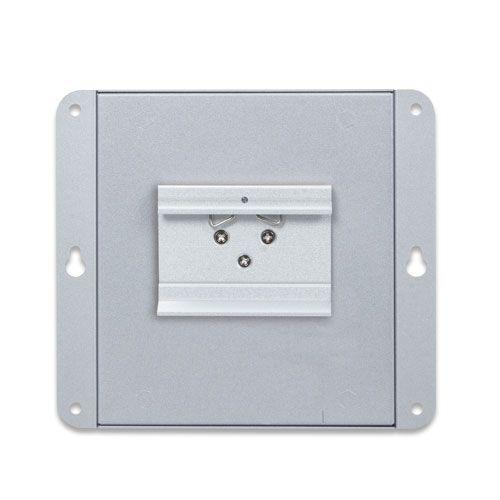

• Mounting: wall, magnetic, DIN rail

Power Supply:

• Input: 12–48V DC or 24V AC
• Max Power Consumption: 6W / 20 BTU
• Dual power input with hardware failover
• ESD Protection: 6KV
• EFT Protection: 6KV

Environmental Specs:

• Operating Temp: -10 to 60°C
• Storage Temp: -20 to 70°C
• Humidity: 5–95% (non-condensing)

Certifications:

• FCC Part 15 Class A, CE
• IEC 60068-2-32 / -2-27 / -2-6 (fall, shock, vibration)

Use Case Scenarios:

• Smart buildings and home automation
• IoT edge network environments
• IP surveillance and wireless infrastructure
• SOHO and home networking

Package Contents:

• WGS-803 Switch
• Magnetic Mounting Kit
• DIN Rail Kit
• Wall Mounting Kit
• 8x RJ45 dust caps
• 1x 3-pin terminal block
• User Manual
