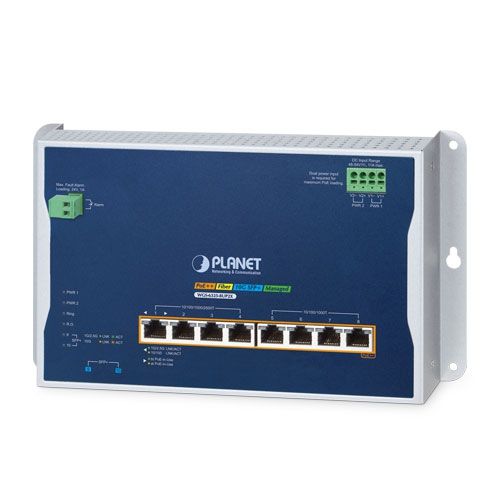

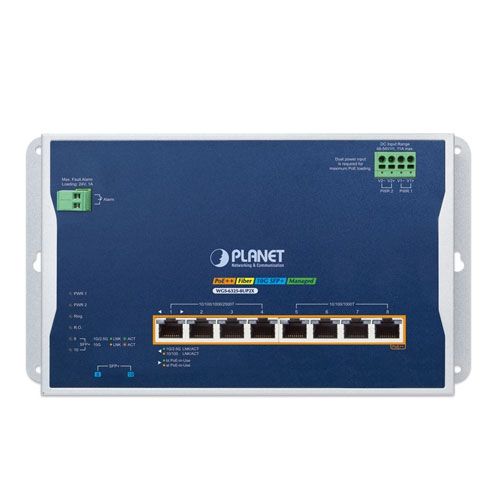

PLANET WGS-6325-8UP2X – 10G PoE++ Layer 3 Industrial Wall-mounted Managed Switch with Ultra-High Power Delivery

The PLANET WGS-6325-8UP2X is a high-performance, wall-mounted industrial PoE++ managed switch designed for mission-critical applications in surveillance, building automation, and factory networks. With four 2.5G multi-Gigabit ports and four 1G ports, all supporting IEEE 802.3bt PoE++ up to 95 watts per port, this switch ensures reliable operation of high-power PDs. It features dual 10G SFP+ uplinks, advanced L3 routing (RIP/OSPF), ONVIF camera integration, PTPv2 synchronization, and up to 480W PoE power budget for uninterrupted connectivity in harsh environments.

Key Features:

• 4x 10/100/1000/2500BASE-T + 4x 10/100/1000BASE-T ports with 802.3bt PoE++
• 2x SFP+ uplinks: 1G/2.5G/10GBASE-X
• Max. 95W per port, 480W total PoE power (dual input)
• Supports PoE scheduling, power monitoring, PD alive check, reboot
• L3 static & dynamic routing (RIPv2, OSPFv2/v3)
• Modbus TCP & IEEE 1588v2 PTP for factory integration
• ONVIF device auto-detection with topology mapping
• -40 to 75 °C operating temperature, fanless IP30 aluminum housing

Technical Specifications:

Ports:

• 4x 10/100/1000/2500BASE-T (RJ45)
• 4x 10/100/1000BASE-T (RJ45)

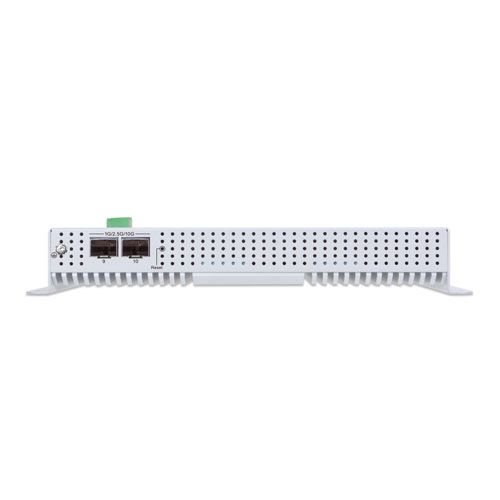

• 2x 1G/2.5G/10GBASE-X SFP+

PoE Capability:

• 8x IEEE 802.3bt PoE++ ports, backward compatible with 802.3at/af
• Max. 95W per port, up to 480W budget (dual power input)
• Supports Mid-span, End-span, Legacy, and Force mode
• Extended PoE distance up to 160m

Switching & Routing:

• Switch capacity: 68Gbps, Throughput: 50.6 Mpps
• Jumbo frame: 10KB
• 8K MAC addresses, 4.1Mb buffer
• Layer 3 Routing: Static (32), RIPv2, OSPFv2/v3 (dynamic), up to 1K entries

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, MAC/Protocol/Voice VLAN, PVE
• LACP: Up to 5 groups (10 ports max), Cisco ether-channel
• STP/RSTP/MSTP, ERPS (G.8032), UDLD
• IGMPv1/v2/v3, MLD Snooping v1/v2, MVR

Security Features:

• 802.1X port- & MAC-based auth, RADIUS, TACACS+
• ACLs: MAC/IP-based, up to 512 entries
• IP Source Guard, DHCP Snooping, DAI, DoS protection
• Guest VLAN, port isolation, MAC security

Advanced PoE Management:

• Per port power control, admin mode, priority, usage limits
• PD classification, auto power detection
• PD reboot, schedule, thermal alarm

Industrial-grade Design:

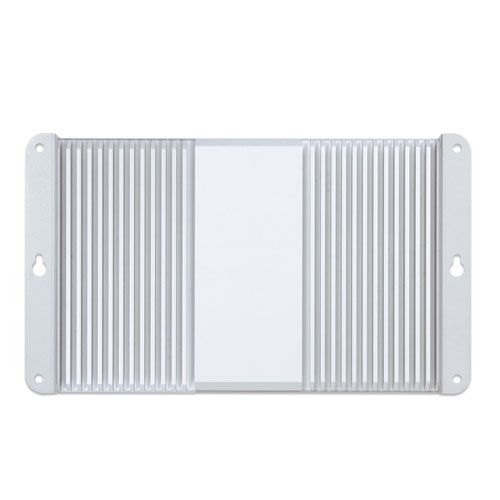

• Housing: IP30 aluminum, wall-mounted
• Operating Temp: -40 to 75 °C
• ESD Protection: 6kV

Diagnostics & Management:

• Interfaces: Web, CLI, Telnet, SNMP v1/v2c/v3, SSHv2, TLS
• Cable diagnostics, DDM, ONVIF floor map and status
• Remote syslog, SNMP traps, email alerts
• NTP, dual firmware image, PLANET UNI-NMS and CloudViewer

Dimensions & Power:

• Size: 245 x 36 x 140 mm
• Weight: 1.23 kg
• Power Input: 48–54V DC (dual input recommended)
• Max Power Draw: 496.9W (full PoE++ load)

Special Features:

• PTPv2 IEEE 1588 time synchronization (E2E, P2P)
• Modbus TCP for SCADA/automation systems
• Full ONVIF integration for surveillance management
