PLANET Industrial 8-Port 10/100/1000T Wall-mount Managed

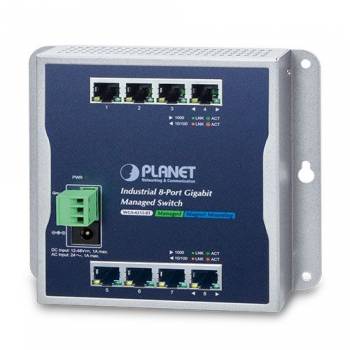

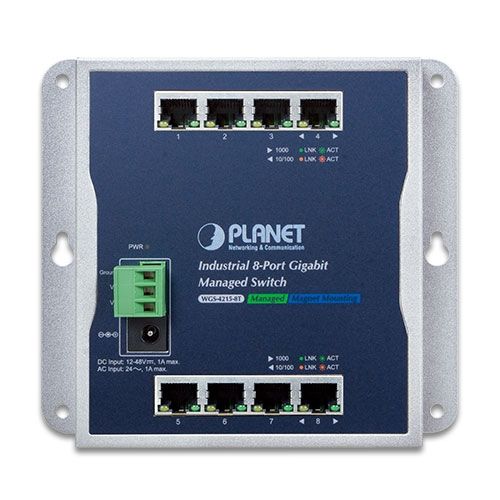

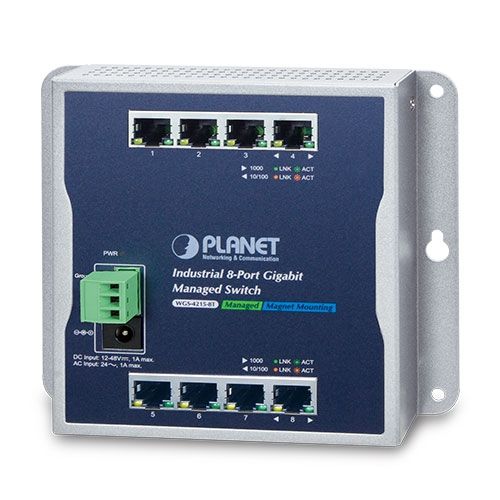

PLANET WGS-4215-8T – Compact Industrial L2 Managed Switch with Wall Mount Design and Hardened Protection

The PLANET WGS-4215-8T is an 8-port Gigabit Ethernet Layer 2 managed switch, built with a rugged, fanless IP30-rated metal housing and designed specifically for wall-mounted applications in tight spaces such as enclosures and industrial cabinets. With dual power inputs (12~48V DC or 24V AC), rich Layer 2 features, robust security, and support for IPv6, the WGS-4215-8T is a cost-effective solution for IoT networks, building automation, surveillance, and other industrial applications.

Key Features:

• 8x 10/100/1000BASE-T RJ45 ports with Auto MDI/MDI-X
• Dual power input: 12–48V DC or 24V AC via terminal block or DC jack
• Compact IP30 metal housing, fanless, -40°C to 75°C wide temperature range
• Supports IEEE 802.1Q VLAN, MSTP, LACP, IGMP/MLD snooping, LLDP
• Cybersecurity suite: DHCP Snooping, IP Source Guard, 802.1X, ARP Inspection
• ERPS (G.8032) ring redundancy protocol with fast failover (<10ms)
• Supports Web, Telnet, SNMPv3, SSH, and TLS-based secure management

Technical Specifications:

Network Ports:

• 8x 10/100/1000BASE-T RJ45 ports

Switching Performance:

• Switch Fabric: 16 Gbps
• Throughput: 11.9 Mpps
• Jumbo Frames: up to 10 KB
• MAC Table: 8K entries

Layer 2 Features:

• VLANs: 802.1Q, Voice VLAN, Private VLAN, Q-in-Q, GVRP
• Spanning Tree: STP/RSTP/MSTP, BPDU Guard, Loop protection
• Link Aggregation: up to 4 groups, 8 ports per group
• Port Mirroring (many-to-1)
• IGMPv2/v3 & MLDv1/v2 snooping (256 multicast groups)
• ERPS (Ethernet Ring Protection Switching) for <10ms recovery

Quality of Service (QoS):

• 8 priority queues per port (802.1p, DSCP)
• Strict priority and WRR scheduling
• Ingress/Egress rate limiting

Security Functions:

• Port-based 802.1X, RADIUS, TACACS+
• DHCP Snooping, ARP Inspection, IP Source Guard, MAC filtering
• ACLs (IPv4/IPv6, MAC-based)
• DoS protection, Port security

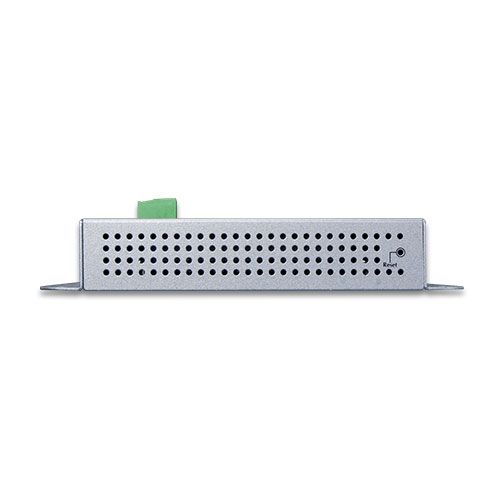

Housing and Installation:

• Dimensions: 148 x 24.2 x 134 mm
• Weight: 496 g

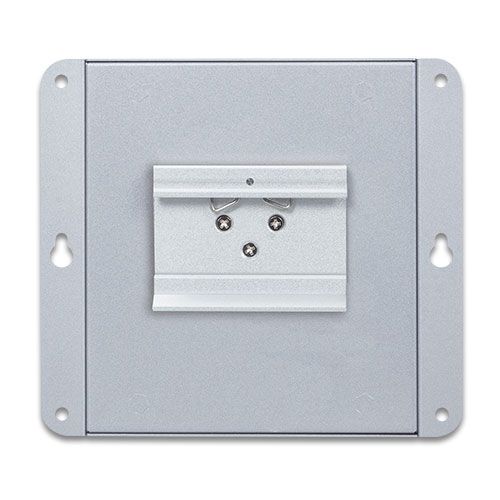

• Mounting: Wall, magnetic, or DIN rail
• Enclosure: IP30 metal
• ESD Protection: 8kV (air), 4kV (contact)
• Operating Temp: -40 to 75 °C

Power Input:

• Redundant: 12–48V DC or 24V AC
• Max. Power: 7W
• Input via 3-pin terminal block or DC jack

Management & Monitoring:

• Interfaces: Web, Telnet CLI, SNMPv1/v2c/v3, SSHv2, TLS
• LLDP/LLDP-MED, SNTP, RMON (4 groups), Syslog
• PLANET Smart Discovery, NMS & CloudViewer support

Included Accessories:

• Wall-mount kit, Magnet kit, DIN rail kit
• RJ45 & Terminal Block dust caps
