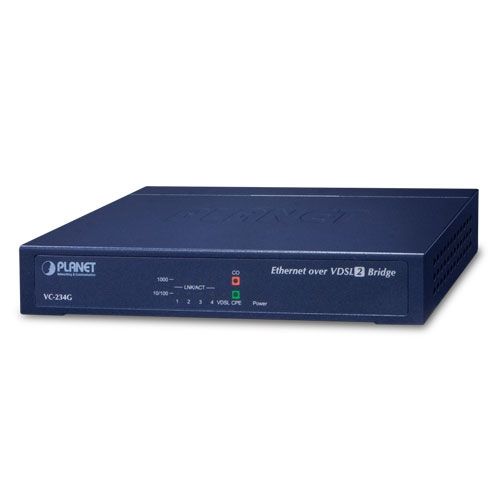

PLANET 4-Port 10/100/1000T Ethernet to VDSL2 Bridge

The PLANET VC-234G is a high-performance Gigabit Ethernet-over-VDSL2 converter designed to deliver up to 200/100 Mbps (G.INP, Asym, 8dB) over existing telephone wiring with no re-cabling required. Featuring ITU-T G.993.5 Vectoring support, it cancels crosstalk interference for optimal line bandwidth – even over distances up to 1.4 km.

Equipped with four Gigabit Ethernet ports, one VDSL port, and an integrated POTS splitter, the VC-234G is ideal for triple-play service delivery, such as IPTV, VoIP, and broadband distribution. It supports both CPE and CO modes, making it suitable for point-to-point and point-to-multipoint applications.

Key Technical Specifications:

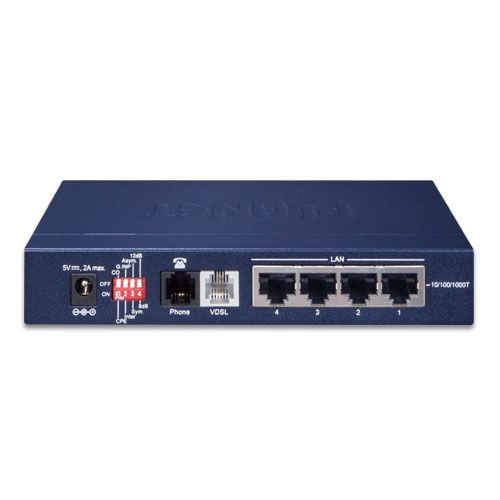

Interfaces:

• 4 × 10/100/1000BASE-T RJ45 ports with auto-MDI/MDI-X
• 1 × RJ-11 VDSL2 line interface
• 1 × RJ-11 phone interface with built-in POTS splitter

DSL Features:

• Compliant with VDSL2 (ITU-T G.993.2, Profiles 17a/30a)
• Supports G.Vectoring (G.993.5), G.INP, DMT coding
• ADSL2/2+ fallback supported
• CO or CPE mode switchable via DIP
• Max data rates: 200Mbps down / 100Mbps up (G.INP, Asym)

Switching Capabilities:

• Store-and-Forward architecture
• 2K MAC address table
• Jumbo frame support: 9KB
• VLAN tag transparency, 802.3x flow control

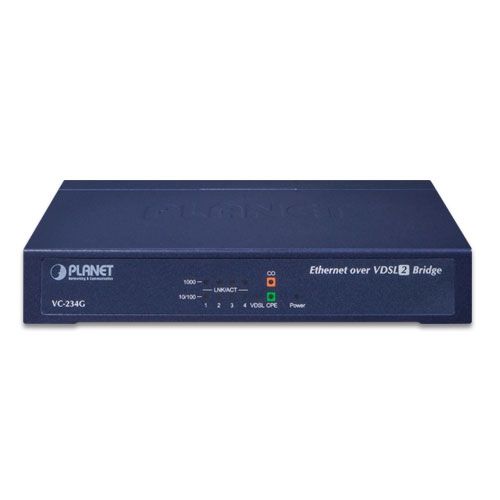

LED Indicators:

• Power, CO/CPE mode, VDSL status
• Link/Activity for each Ethernet port

Housing & Power:

• Metal enclosure, wall-mountable
• External power: 5V DC, 2A
• Dimensions: 154.6 × 86.0 × 26.3 mm
• Weight: 350g

Environmental Conditions:

• Operating temperature: 0–50 °C
• Humidity: 5–95% (non-condensing)

Applications:

• Long-reach Ethernet extension over phone lines
• Last-mile fiber-to-building (FTTx) deployment
• MTU/MDU networks in residential, hospitality, and healthcare sectors
