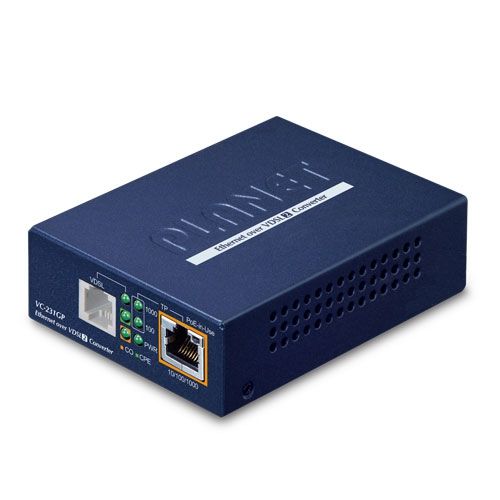

PLANET 1-Port 10/100/1000T PoE+ Ethernet to VDSL2 Converter

The PLANET VC-231GP is a high-performance Gigabit Ethernet-over-VDSL2 converter with built-in IEEE 802.3at PoE+ injector, making it the ideal solution for powering remote IP cameras, wireless access points, or VoIP door phones over a single cable. Combining VDSL2, Gigabit Ethernet, and PoE+, the VC-231GP delivers up to 150/150Mbps symmetric throughput (G.INP, 8dB) over 300 meters of telephone wire.

With plug-and-play setup, CO/CPE mode switching, and an included splitter for voice/data sharing, it simplifies deployment in new or existing installations. The VC-231GP can operate in point-to-point scenarios or point-to-multipoint topologies with PLANET IP DSLAMs like the VC-820M.

Key Technical Specifications:

Ports:

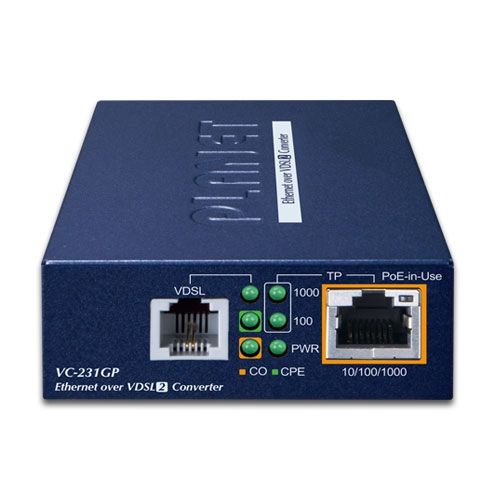

• 1 × 10/100/1000BASE-T RJ-45 port with PoE+ injector
• 1 × RJ-11 VDSL2/ADSL2+ interface
• 1 × POTS splitter included

PoE+ Features:

• IEEE 802.3at compliant (up to 30 W output)
• End-span PSE with auto PD detection and 100m range
• Compatible with 802.3af/at splitter devices

DSL Compatibility:

• ITU-T G.993.2 VDSL2 (Profiles 17a/30a), G.993.5 (G.Vectoring)
• G.INP retransmission support
• ADSL2/2+ fallback (up to 24Mbps down/1Mbps up)

Configuration & Monitoring:

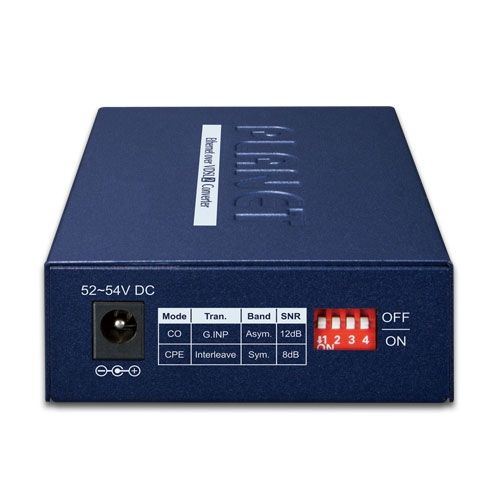

• DIP switches for CO/CPE mode, band plan, G.INP, SNR margin
• LED indicators: Power, Link, PoE status, DSL mode
• Supports IEEE 802.1Q VLAN tag transparency

Installation:

• Compact metal housing, wall-mountable or DIN-rail (optional)
• Dimensions: 94 × 70.3 × 26.2 mm; Weight: 206g

Power Supply:

• External 54V DC, 0.74A
• Power consumption (PoE active): up to 32 W

Environment:

• Operating temperature: 0–50°C
• Humidity: 5–95% (non-condensing)

Applications:

• Power and data extension over phone lines
• FTTx last-mile deployments
• Point-to-point LAN bridging or DSLAM-based distribution
