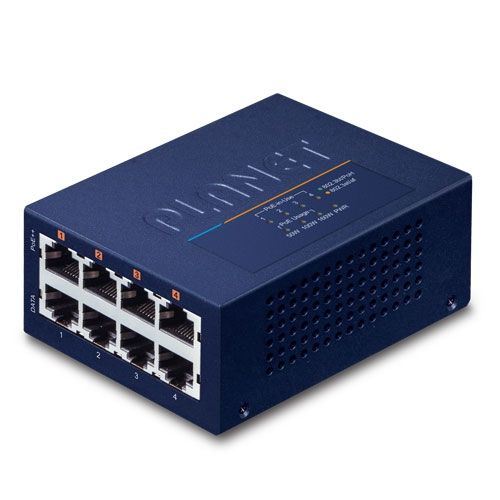

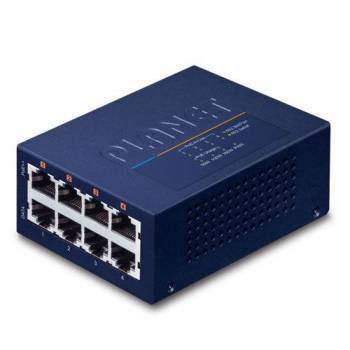

PLANET 4-Port Multi Gigabit 802.3bt PoE++ Injector Hub

The PLANET UPOE-400 is a compact and rugged 4-Port Multi-Gigabit PoE++ Injector Hub, fully compliant with IEEE 802.3bt Type-4, delivering up to 90 watts per port. With a total power budget of 160 watts, it enables easy and efficient PoE++ deployment for high-powered network devices without replacing the existing Ethernet switch infrastructure. Supporting 10/100/1G/2.5G/5GBASE-T, it supplies both data and power over standard Cat5e/6 UTP cabling up to 100 meters.

Ideal for office, industrial, retail, or remote installations, the UPOE-400 powers demanding PDs such as PTZ IP cameras, touch-panel PCs, PoS terminals, thin clients, signage displays, and LED lighting. It includes intelligent LED indicators for system and power usage (50W/100W/160W) and a DIP switch for selecting PoE modes (802.3bt, PoH, Force). By using PLANET PoE Extenders, the power reach can be extended beyond 100 meters.

Technical Specifications (Overview):

Interfaces:

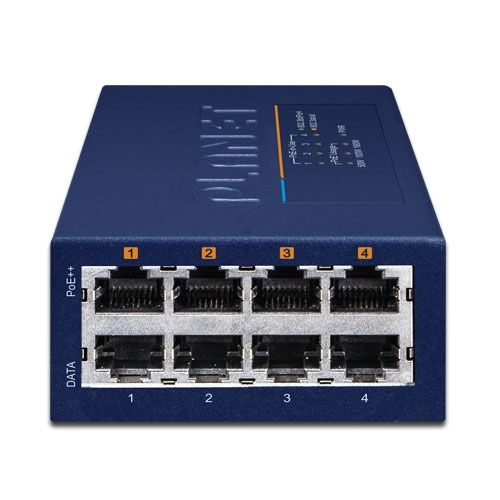

• 4 x RJ45 “Data” input ports (10/100/1G/2.5G/5G)
• 4 x RJ45 “Data + Power” output ports (PoE++)

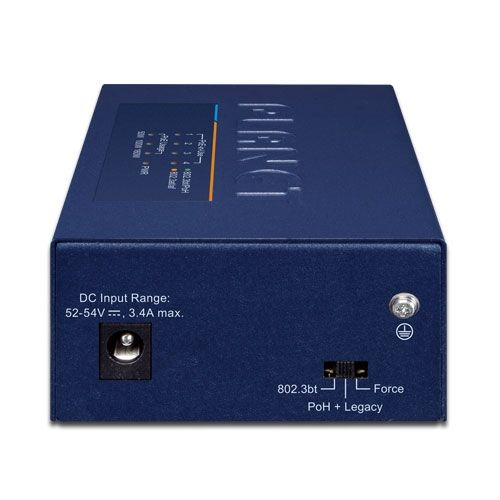

• 1 x DC input port (52–54V DC)

PoE Output:

• Standard: IEEE 802.3bt PoE++ Type-4
• Compatible with IEEE 802.3at
• 4 ports delivering up to 90W (802.3bt) or 95W (PoH)
• DIP switch for selecting PoE mode (bt / PoH / Force)
• End-span and mid-span support
• Max PoE power budget: 160 watts
• Power and data delivered up to 100 meters

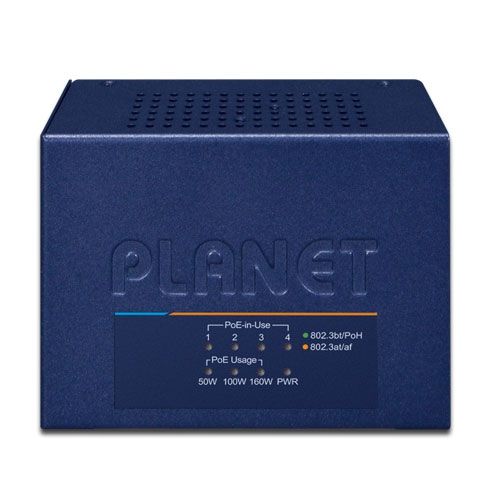

Indicators:

• System power LED (Green)
• Per-port PoE-in-use: 802.3bt/PoH (Green), 802.3at/af (Orange)
• PoE usage level: 50W, 100W, 160W (Amber LEDs)

Hardware & Environment:

• Dimensions: 94 x 70.3 x 39.2 mm | Weight: 275g
• Metal enclosure, wall-mountable or DIN-rail mount (optional)
• Operating temp: 0–50 °C | Storage: -10–70 °C
• Humidity: 5–95% non-condensing

Compliance:

• FCC Part 15 Class B, CE
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3af/at/bt
