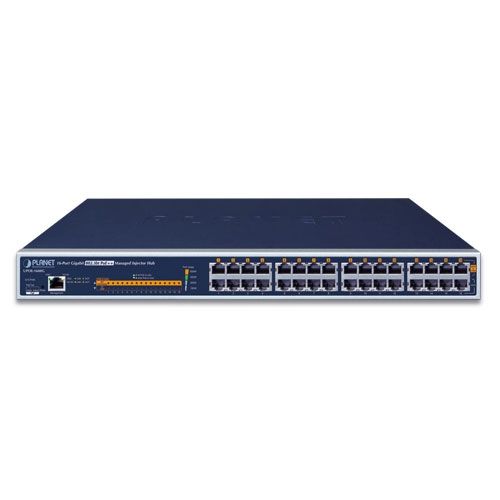

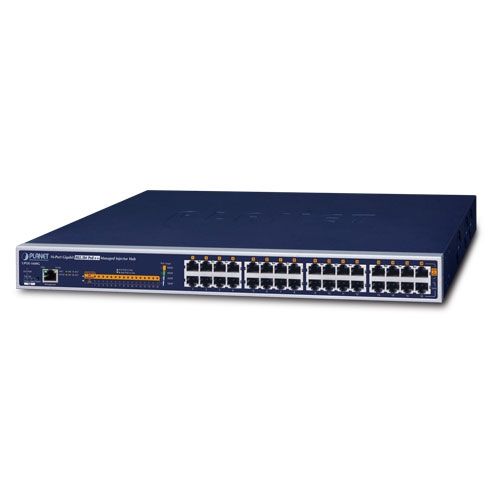

PLANET 16-Port 60W Managed Gigabit Ultra PoE Injector Hub

The PLANET UPOE-1600G is a robust and fully-managed PoE++ injector hub equipped with 16 Gigabit ports, supporting the next-generation IEEE 802.3bt PoE++ standard. With eight ports delivering up to 90 watts (Type-4) and another eight up to 60 watts (Type-3), it delivers a total PoE power budget of 600 watts—ideal for powering high-wattage PDs such as PTZ cameras, signage displays, and thin clients via standard Ethernet cables.

Through its intuitive web interface, users can remotely manage PoE scheduling, device health (PD Alive Check), port-level power control, mode selection (802.3bt, UPoE, Force, Mid/End-span), and even monitor real-time power consumption using power usage LEDs and usage charts.

Its smart fan design ensures silent and efficient thermal control, and with support for PLANET PoE Extenders, it can stretch PoE coverage well beyond 100 meters. The UPOE-1600G is the perfect upgrade path for any network requiring centralized high-power PoE without needing to replace existing Ethernet switches.

Technical Specifications:

Interfaces:

• 16 x RJ45 “Data” input ports
• 16 x RJ45 “Data + Power” output ports
• 1 x RJ45 management port (10/100/1000 Mbps)

PoE Capabilities:

• Total PoE budget: 600W
• 8 ports @ 90W (IEEE 802.3bt Type-4)
• 8 ports @ 60W (IEEE 802.3bt Type-3)
• Also supports UPoE (95W), Mid/End-span (36W), Force Mode
• 4-pair power delivery up to 100m
• Auto PD detection and circuit protection

PoE Management:

• Per-port scheduling
• Enable/disable per port
• Priority control
• Power mode selection
• PD alive check with auto-reboot
• Temperature protection
• LED indicators: 150W / 300W / 450W / 600W usage levels

Management Features:

• Web interface (HTTP)
• SNMP v1/v2c/v3, NTP, Syslog
• PLANET Smart Discovery tool
• Remote firmware updates
• SNMP traps for fault alerts

Hardware:

• 19” rack mountable, 1U | Dimensions: 444 x 301 x 44 mm
• Weight: 4.8 kg | Fans: 3x with smart control

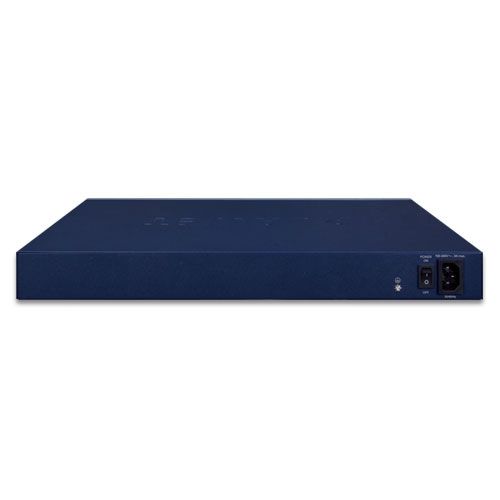

• Power: 100–240V AC, 50/60 Hz, max 800W
• LED Indicators: SYS, Fan Failure, PoE Failure, Power Usage, Link/Speed

Environmental:

• Operating temp: 0 to 50°C
• Storage temp: -10 to 70°C
• Humidity: 5–90% (non-condensing)

Compliance:

• FCC Class A, CE
• Fully compliant with IEEE 802.3af / 802.3at / 802.3bt
