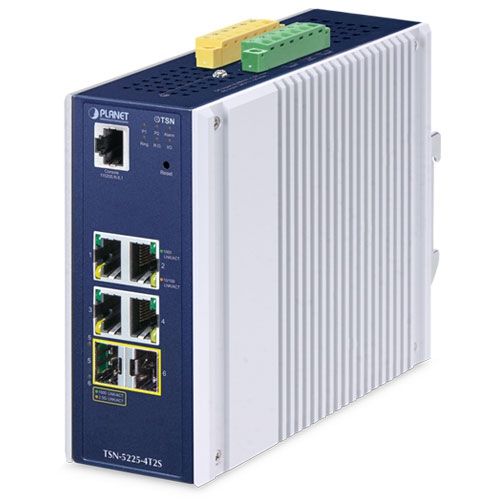

Planet Industrial L2+ 4-Port Managed TSN Switch TSN-5225-4T2
|
611,18 EUR |
|
|
( 727,30 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1238060 |
|---|---|
| Mfg Part No: | TSN-5225-4T2S |
| UPC/EAN: | 4711605287821 |
| Weight: | 1.27 kg |
Product information for Planet TSN-5225-4T2S:
Designed for -40 to 75°C environments, with redundant power input, IP30 aluminum enclosure, and support for key TSN IEEE standards (802.1AS-Rev, Qbv, Qci, Qbu, CB), it integrates seamlessly with real-time systems. The switch also supports IEEE 1588v2 PTP, ensuring synchronization down to the microsecond.
It includes advanced Layer 2/3 functionalities, VLAN-based routing, ACL security, QoS, Modbus TCP, and remote management through PLANET UNI-NMS/NMSViewerPro. Digital input/output (DI/DO) terminals allow integration into alarm systems, while the SFP-DDM function facilitates real-time monitoring of optical transceivers.
Key Technical Specs (Summary):

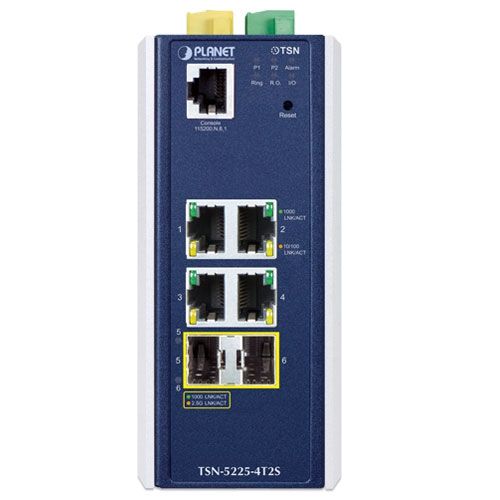

Ports:
- 4 x 10/100/1000BASE-T RJ45 (Auto-MDI/MDI-X)
- 2 x 1000/2500BASE-X SFP slots (auto-detecting)
- 1 x RJ45 console port

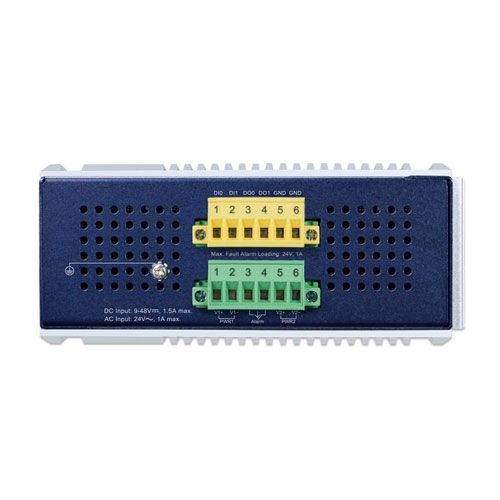

- 2 x DI, 2 x DO (via terminal block)
Chassis & Power:
- IP30 aluminum housing | DIN-rail or wall-mountable
- Operating Temp: -40 to +75 °C
- Power: DC 9–48V or AC 24V (redundant)
- ESD/Surge: 5KV / 6KV
Switching:
- Architecture: Store-and-Forward
- Switching Fabric: 18 Gbps | Throughput: 13.3 Mpps
- MAC Table: 8K | Jumbo Frame: 10 KB | Buffer: 32 Mbit
Time-Sensitive Networking:
- IEEE 1588v2 PTP (Master, Slave, Transparent, Boundary)
- 802.1AS-Rev (gPTP), 802.1Qbv (scheduled traffic)
- 802.1Qbu + 802.3br (frame preemption, IET)
- 802.1Qci (per-stream policing), 802.1CB (redundancy)
L2/L3 Features:
- VLANs: 4K, Q-in-Q, MAC/IP/Protocol/Voice VLANs
- Link Aggregation: 3 trunks up to 6 ports each
- STP, RSTP, MSTP, BPDU Guard
- IGMP v1–v3, MLD v1/v2 Snooping, MVR
- Up to 32 static routes (IPv4/IPv6)
- Software VLAN routing, Ingress/Egress rate limiting
Security:
- 802.1X port/MAC-based, RADIUS, TACACS+
- ACLs (MAC/IP-based), 512 entries
- DHCP Snooping, DAI, IP Source Guard
Management:
- Web GUI, Telnet/CLI, SNMPv1/v2c/v3
- Secure: SSHv2, TLSv1.2, HTTPS
- Tools: PLANET UNI-NMS, NMSViewerPro, CloudViewerPro
- Syslog, SMTP, NTP, SFP-DDM, dual firmware support
Use Case:
- Industrial automation, factory Ethernet, SCADA, AIoT
- TSN edge infrastructure, real-time data systems, smart buildings
