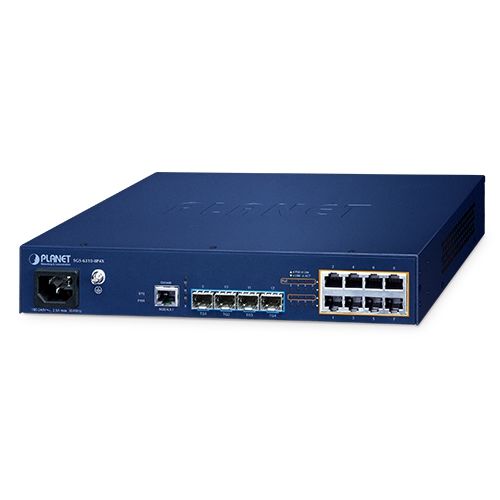

Planet 8-Port L3 PoE+ Managed Switch SGS-6310-8P4X

The PLANET SGS-6310-8P4X is a fanless Layer 3 Gigabit managed switch equipped with 8 IEEE 802.3at PoE+ ports and 4 SFP+ uplink slots, offering a robust 128Gbps switching capacity in a compact 12-inch chassis. It's ideal for business and industrial networks, delivering silent operation, centralized management, and resilient 10G connectivity.

With support for PLANET UNI-NMS and NMSViewerPro, administrators can manage and monitor up to 102,400 devices from one platform, including mobile-based alerts and real-time visualization. The switch features full Layer 3 routing, IPv6 dual stack, multicast optimization, VLAN-based routing, and secure failover with VRRP and ERPS (<10ms). Integrated PoE+ (up to 120W total) powers high-end devices like Wi-Fi 6 APs or surveillance cameras.

Fanless and energy-efficient, the SGS-6310-8P4X fits perfectly in medical, retail, and edge environments where noise and space are concerns. It supports ISSU for zero-downtime firmware upgrades, PoE scheduling for energy savings, and advanced Layer 2-4 ACL security features.

Technical Specifications:

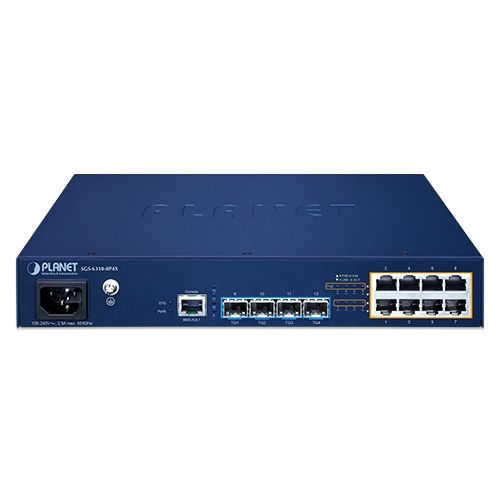

Ports:

• 8 x 10/100/1000BASE-T RJ45 (PoE+, max. 30W per port)
• 4 x 10GBASE-SR/LR SFP+ (1G/10G supported)
• 1 x RJ45-to-RS232 Console port

Hardware:

• Switch Fabric: 96 Gbps | Backplane: 128 Gbps
• Throughput: 72 Mpps
• MAC Address Table: 16K | ARP IPv4: 2042 / IPv6: 2039
• VLAN Interfaces: 64 | Jumbo Frames: 9 KB
• DRAM: 256 MB | Flash: 16 MB
• Power: 25W (System), 408W (with PoE)
• Size: 280 × 180 × 44 mm | Weight: 1.62 kg
• Temp: 0–50°C (operating), -20–70°C (storage)

Layer 3 Routing:

• Static Routing, RIP, OSPF, Policy-Based Routing
• VLAN Routing, VRRP v1/v3
• IPv6: OSPFv3, RIPng, ISATAP, GRE, Manual Tunnel

Multicast Support:

• IGMP v1/v2/v3 Snooping, MLD v1/v2, MVR
• Fast Leave, IGMP Filtering, 1024 groups

Layer 2 Features:

• 4K VLANs, Q-in-Q, GVRP, Private/Voice VLAN
• Link Aggregation: 64 groups (8 ports max.)
• STP/RSTP/MSTP, BPDU/Root Guard
• LLDP, Cisco UDLD, ERPS Ring (<10ms recovery)

PoE+:

• Standard: IEEE 802.3at/af (End-Span)
• Output: 54V, 30W per port | Budget: 120W max.
• PoE Scheduling, Prioritization, Control
• 6KV Surge Protection

QoS:

• 8 Queues per port | SP, WRR, Hybrid
• Classification: DSCP, CoS, VLAN, 802.1p
• Traffic Shaping, WRED, Flow Monitoring

Security:

• 802.1X (Port/MAC), RADIUS/TACACS+
• ACL: MAC/IP/Time-based (1024 entries)
• DHCP Snooping, IP Source Guard, ARP Inspection
• DDoS/TCP SYN/UDP Flood protection

Management:

• Web GUI, CLI (Console/Telnet), SNMPv1/v2c/v3
• SSHv1/v2, HTTPS, TLSv1.2
• Tools: sFlow, Syslog, RMON (1,2,3,9)
• Supports PLANET Smart Discovery, UNI-NMS, NMSViewerPro (Cloud QR ready)

Certifications & Compliance:

• FCC Class A, CE
• IEEE Standards: 802.3/ab/z/ae/at/ad/x/Q/1X/1D/1w/1s/1p/1ab
