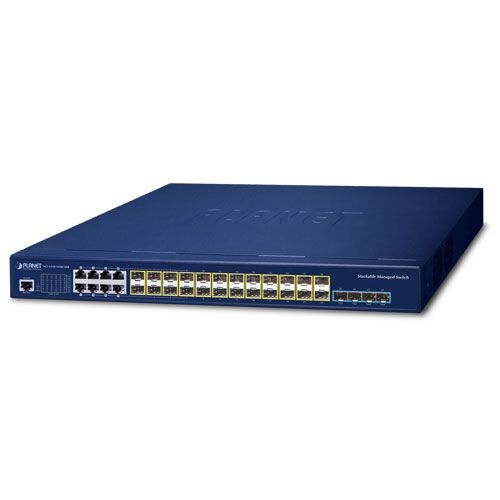

PLANET L3 16*GE SFP 8*GE TP/SFP 4*10G SFP+ SGS-6310-16S8C4XR

The PLANET SGS-6310-16S8C4XR is a high-performance Layer 3 stackable managed switch designed for enterprise, service provider, and data center environments. Featuring a 128Gbps non-blocking switching fabric, 10Gbps uplink support, and hardware-based routing capabilities, this switch ensures high availability, redundancy, and bandwidth scalability for demanding applications.

With 24 100/1000BASE-X SFP ports, 8 shared 10/100/1000BASE-T RJ45 ports, and 4 10GBASE-SR/LR SFP+ uplink ports, the SGS-6310-16S8C4XR offers exceptional port flexibility. It supports hardware stacking of up to 8 units through its 10G SFP+ ports, providing unified management via a single IP and a resilient ring-based stack architecture.

The device supports full Layer 3 routing with RIP, OSPF, VLAN interface routing, and VRRP. Its multicast capabilities include IGMP Snooping, MVR, and IPv6 MLD Snooping. Security features like ACLs, 802.1X, DHCP snooping, DAI, and IP source guard help create a robust, protected network.

Management is made easy via CLI, Web GUI, Telnet, and SNMP, while features like DDM, redundant power supply, and advanced QoS policies make the SGS-6310 series a smart and future-ready solution for modern networking demands.

Technical Specifications:

General:

• Switch Fabric: 128Gbps (non-blocking)
• Throughput: 95.23 Mpps
• Stackable: Up to 8 units

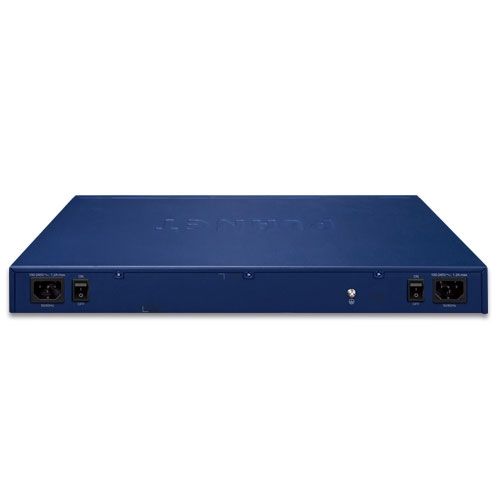

• Power: 100–240V AC dual redundant
• Power Consumption: 38 Watts
• Dimensions: 440 x 279.8 x 44 mm
• Weight: 4 kg
• Operating Temp: 0–50 °C

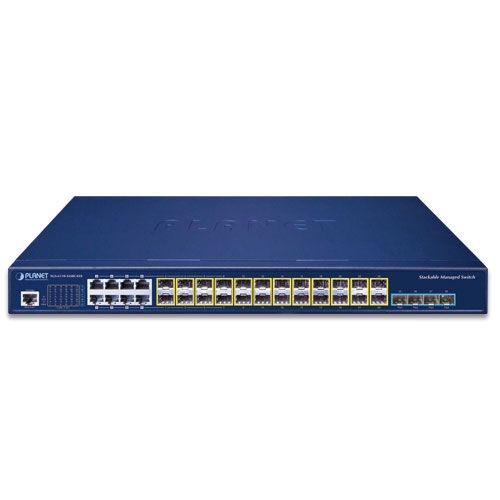

Physical Ports:

• 24 x 100/1000BASE-X SFP
• 8 x 10/100/1000BASE-T RJ45 (shared with SFPs 1–8)
• 4 x 10G SFP+ (1000BASE-SX/LX/BX compatible)
• 1 x RJ45-to-DB9 console port

Routing & Layer 3:

• IPv4/IPv6: RIP, OSPF, Static Routing, PBR
• VRRP v1/v3, VLAN-based Routing
• GRE, ISATAP, 6-to-4, Manual Tunnel support
• Routing Table: 2040 entries

Layer 2 Features:

• 16K MAC table, VLANs (802.1Q, Q-in-Q, MAC, IP subnet, Voice)
• Link Aggregation: 64 groups, 8 ports each
• STP, RSTP, MSTP, BPDU Guard, LLDP, Cisco UDLD
• ERPS G.8032 (<10ms recovery)

Security:

• ACL: MAC/IP/time-based, 1024 entries
• 802.1X, MAC-based authentication, RADIUS/TACACS+
• DHCP Snooping, IP Source Guard, DAI
• Port Isolation, Broadcast Storm Control

Multicast & QoS:

• IGMPv1/v2/v3, MLD Snooping, MVR, Querier
• 1024 multicast groups (IPv4 + IPv6)
• 8 queues per port, Strict Priority, WRR
• DSCP, 802.1p, Port-based, flow monitoring

Management:

• Interfaces: Web, CLI, Telnet, SNMPv1/v2c/v3
• Secure: SSHv1/v2, TLSv1.2, HTTPS
• DDM monitoring for SFP/SFP+
• SNMP: RMON, MIB-II, Syslog, sFlow
• DHCP Client/Relay/Server, firmware upgrades via TFTP/HTTP

Standards & Compliance:

• IEEE 802.3/ab/z/ae/ad/w/s/x/p/Q/1X/1AB
• IPv6-Ready
• Compliance: CE, FCC Part 15 Class A
