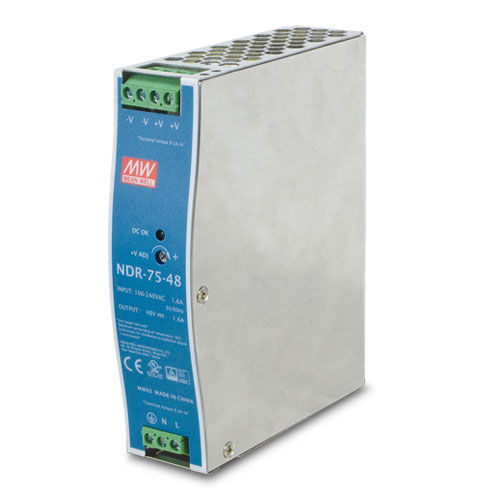

PLANET Din-Rail Power Supply (PWR-75-48) 75 watts, 48V
|
39,80 EUR |
|
|
( 47,36 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1225949 |
|---|---|
| Mfg Part No: | PWR-75-48 |
| Weight: | 0.47 kg |
Product information for Planet PWR-75-48:
The PLANET PWR-x-48 series delivers stable 48V DC power for industrial PoE network equipment. Designed for harsh industrial environments, these compact DIN-rail-mounted power supplies are ideal for powering PoE Ethernet switches, wireless access points, and other industrial devices.
Stable Operation in Harsh Conditions
Equipped with short circuit, overload, overvoltage, and overtemperature protection, the PWR-x-48 series ensures safe operation in demanding environments. The fanless convection cooling enables silent functioning, while the wide temperature range (up to -30°C to 70°C) allows deployment in extreme industrial settings.

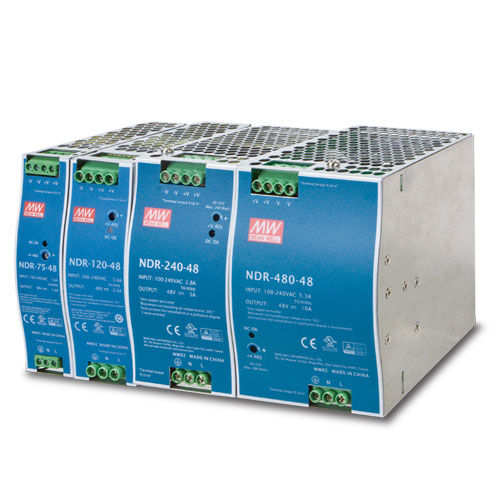

Model Overview and Output Ratings:
- PWR-75-48 – 75W, 48V, 1.6A

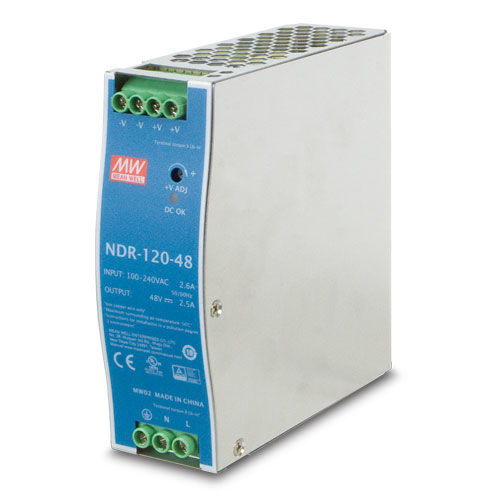

- PWR-120-48 – 120W, 48V, 2.5A

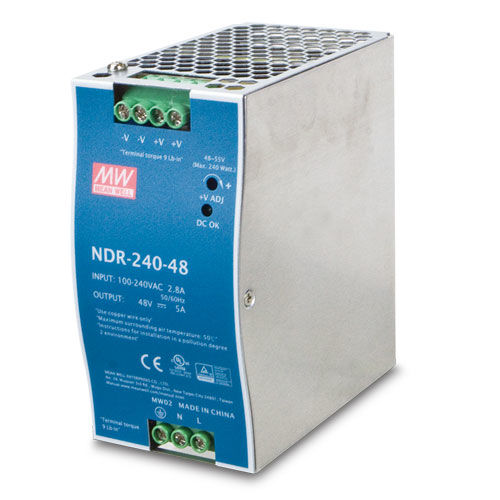

- PWR-240-48 – 240W, 48V, 5A

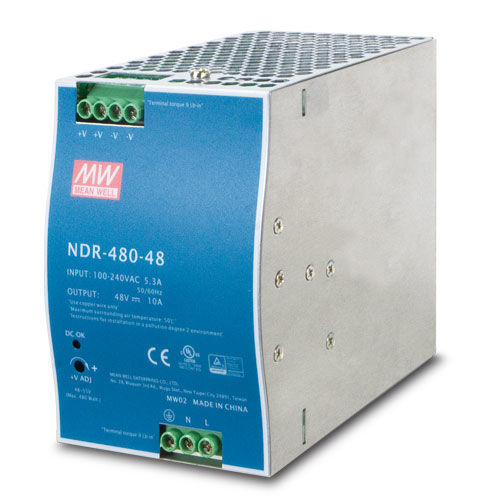

- PWR-480-48 – 480W, 48V, 10A

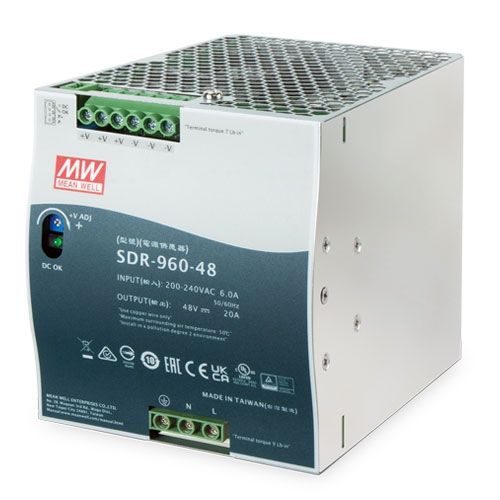

- PWR-960-48 – 960W, 48V, 20A
Key Features:
- Universal input: 90–264V AC / 127–370V DC (PWR-960-48: 180–264V AC / 254–370V DC)
- DIN rail mounting (TS-35/7.5 or 15)
- Fanless free air convection cooling
- Full protection: short circuit, overload, overvoltage, overtemperature
- Built-in active PFC from PWR-240-48 and up
- UL508, TUV EN60950-1, EN60204-1, EN62368-1 certified
- 100% full load burn-in test
Technical Specifications:
- PWR-75-48
- Dimensions: 32 x 125 x 102 mm
- Weight: 0.51 kg
- Output: 48V, 1.6A
- PWR-120-48
- Dimensions: 40 x 125 x 113 mm
- Weight: 0.6 kg
- Output: 48V, 2.5A
- PWR-240-48
- Dimensions: 63 x 125 x 113 mm
- Weight: 1.0 kg
- Output: 48V, 5A
- PWR-480-48
- Dimensions: 85 x 125 x 128 mm
- Weight: 1.5 kg
- Output: 48V, 10A
- PWR-960-48
- Dimensions: 110 x 125 x 150 mm
- Weight: 2.47 kg
- Output: 48V, 20A
- Operating Temp: -30 ~ 70 °C
Applications:
- Industrial PoE Ethernet switches
- Industrial PoE wireless access points
- Cabinet-mounted PoE network devices powered by 48V DC
Questions & answers
What is the delivery time of PLANET Din-Rail Power Supply (PWR-75-48) 75 watts, 48V?
The article PLANET Din-Rail Power Supply (PWR-75-48) 75 watts, 48V is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet PWR-75-48 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Din-Rail Power Supply (PWR-75-48) 75 watts, 48V always at the best possible price. We can give you a discount of 2% on PLANET Din-Rail Power Supply (PWR-75-48) 75 watts, 48V if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
