PLANET Din-Rail Power Supply (SDR-480-48) 48V 480W DC Single
|
154,68 EUR |
|
|
( 184,07 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 1521139 |
|---|---|
| Mfg Part No: | PWR-480-48 |
| UPC/EAN: | 4016032385790 |
| Weight: | 1.67 kg |
Product information for Planet PWR-480-48:
Stable Operation in Harsh Environments
Equipped with protections against short circuit, overload, overvoltage, and overtemperature, the units support convection cooling to ensure quiet, fanless operation. Operating temperatures range from -20°C to +70°C, with the PWR-960-48 model rated down to -30°C.

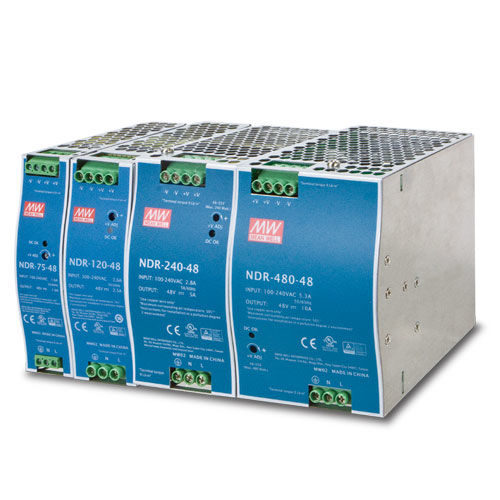

Available Models:
- PWR-75-48: 75W / 48V / 1.6A
- PWR-120-48: 120W / 48V / 2.5A
- PWR-240-48: 240W / 48V / 5A
- PWR-480-48: 480W / 48V / 10A
- PWR-960-48: 960W / 48V / 20A
General Features:
- Wide input range: 90–264VAC (180–264VAC for PWR-960-48)
- Passive convection cooling, silent design
- DIN rail mountable (TS-35/7.5 or 15)
- Industrial certifications: UL508, TUV, EN61000-6-2
- Built-in active PFC (from PWR-240-48 onward)
Technical Specifications:

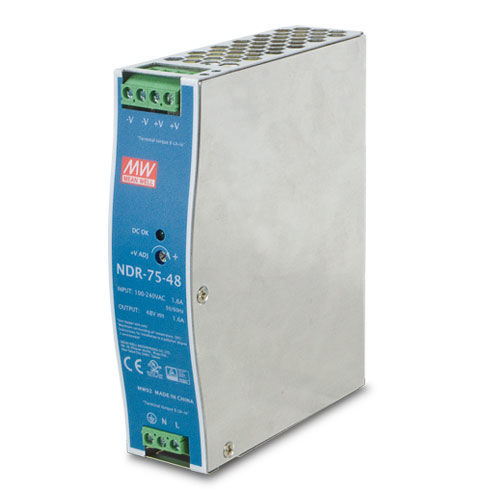

- PWR-75-48
- Dimensions: 32 x 125 x 102 mm, Weight: 0.51 kg
- Input: 90–264VAC / 127–370VDC
- Output: 48V, 1.6A

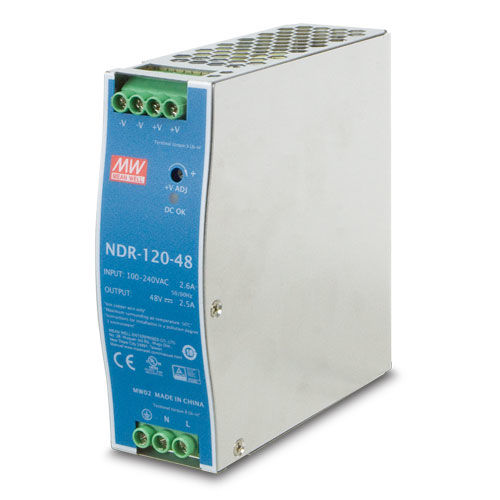

- PWR-120-48
- Dimensions: 40 x 125 x 113 mm, Weight: 0.6 kg
- Output: 48V, 2.5A

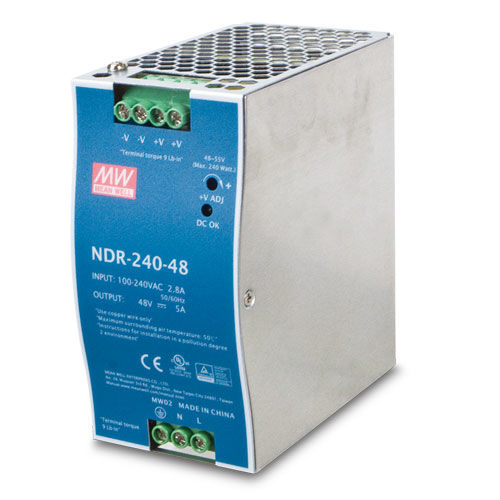

- PWR-240-48
- Dimensions: 63 x 125 x 113 mm, Weight: 1.0 kg
- Output: 48V, 5A

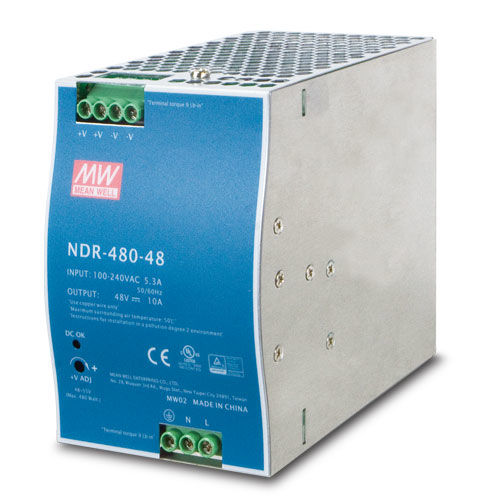

- PWR-480-48
- Dimensions: 85 x 125 x 128 mm, Weight: 1.5 kg
- Output: 48V, 10A
- PWR-960-48
- Dimensions: 110 x 125 x 150 mm, Weight: 2.47 kg
- Input: 180–264VAC / 254–370VDC
- Output: 48V, 20A
Typical Applications:
- Industrial PoE Ethernet switches
- PoE-enabled wireless access points
- IP surveillance systems
- Industrial cabinet-mounted devices
