PLANET Din-Rail Power Supply (PWR-240-48) 240 watts, 48V, 5A
|
77,65 EUR |
|
|
( 92,40 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1225953 |
|---|---|
| Mfg Part No: | PWR-240-48 |
| Weight: | 0.98 kg |
Product information for Planet PWR-240-48:
PLANET’s PWR-x-48 series offers a range of 48V DC single-output industrial DIN-rail power supplies designed for harsh industrial environments. Compact in size and highly reliable, they provide a steady DC voltage to power PoE-enabled industrial Ethernet switches, access points, and other mission-critical devices.
Reliable Operation in Extreme Conditions
These units are equipped with protection against short circuit, overload, overvoltage, and overheating. Operating in temperatures from -20°C to +70°C (up to -30°C for the PWR-960-48), they use fanless free-air convection cooling to ensure quiet and stable performance even under load.

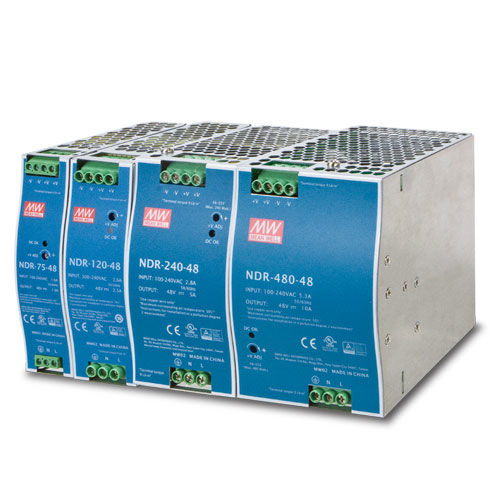

Available Models and Specs:

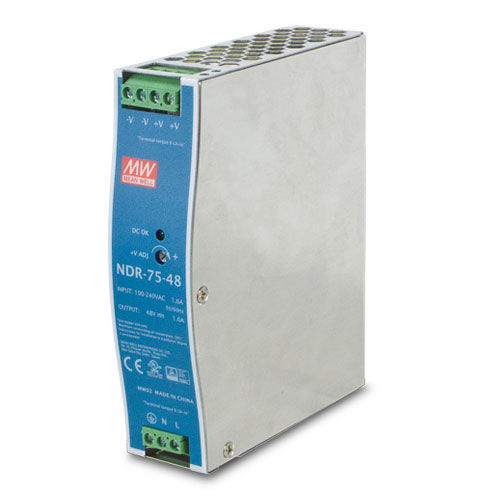

- PWR-75-48 (75W, 48V, 1.6A)
- Dimensions: 32 x 125 x 102 mm
- Weight: 0.51 kg
- Input: 90~264VAC, 127~370VDC
- Operating Temp: -20°C ~ +70°C

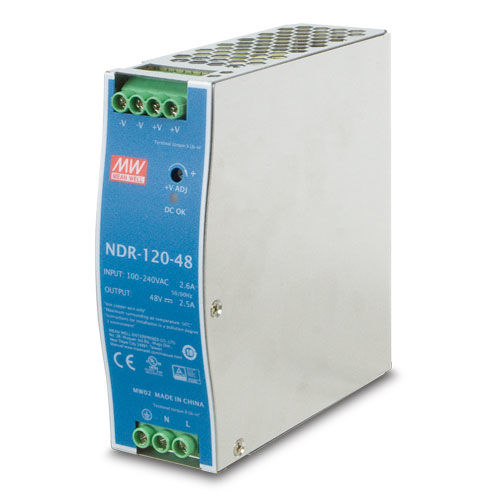

- PWR-120-48 (120W, 48V, 2.5A)
- Dimensions: 40 x 125 x 113 mm
- Weight: 0.6 kg

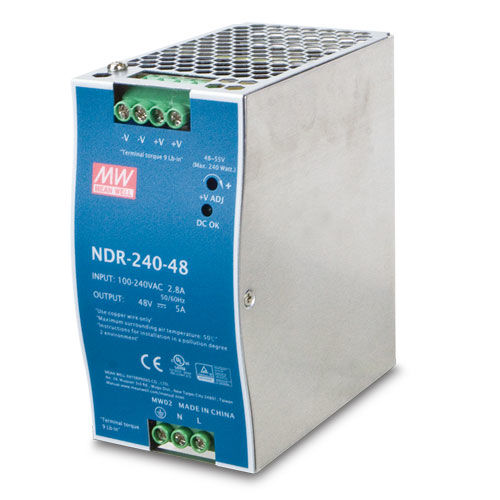

- PWR-240-48 (240W, 48V, 5A)
- Dimensions: 63 x 125 x 113 mm
- Weight: 1.0 kg
- Built-in active PFC

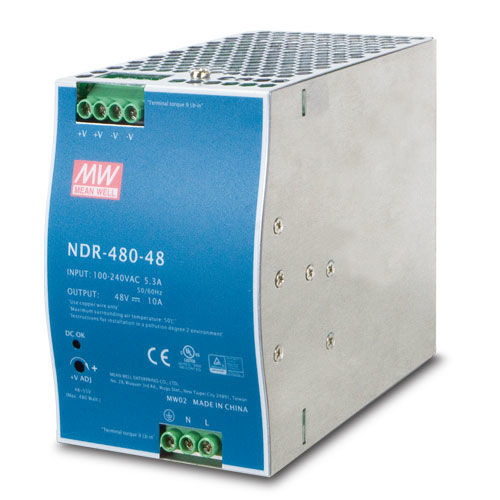

- PWR-480-48 (480W, 48V, 10A)
- Dimensions: 85 x 125 x 128 mm
- Weight: 1.5 kg
- Built-in active PFC

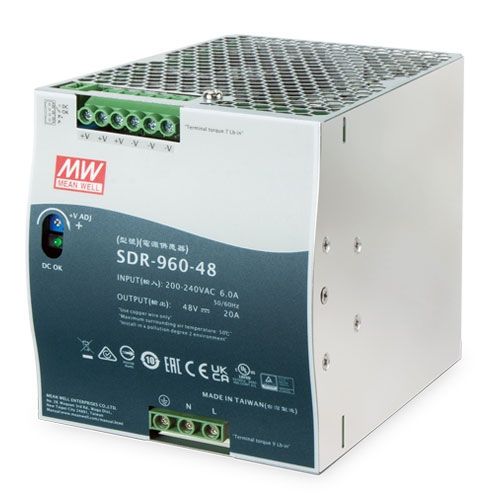

- PWR-960-48 (960W, 48V, 20A)
- Dimensions: 110 x 125 x 150 mm
- Weight: 2.47 kg
- Input: 180~264VAC, 254~370VDC
- Operating Temp: -30°C ~ +70°C
- Built-in active PFC
Key Features:
- Wide input voltage range (90–264VAC)
- Protection against short circuit, overload, overvoltage, and overheat
- Fanless cooling for silent operation
- Mountable on DIN rail TS-35/7.5 or 15
- UL508 and EN61000-6-2 certified
- 100% full-load burn-in tested
Ideal Applications:
- Industrial PoE switches and access points
- Wireless backhaul systems
- IP surveillance and edge computing equipment
- Remote control and SCADA installations
