PLANET Din-Rail Power Supply (PWR-120-48) 120 watts, 48V
|
43,42 EUR |
|
|
( 51,67 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1225954 |
|---|---|
| Mfg Part No: | PWR-120-48 |
| Weight: | 0.58 kg |
Product information for Planet PWR-120-48:
PLANET’s PWR-x-48 series offers a comprehensive range of 48V DC single output industrial power supplies designed for DIN rail mounting (TS-35/7.5 or 15). These power units provide a reliable and stable power source for industrial-grade PoE switches, wireless APs, or other field equipment in rugged environments.
High Reliability in Harsh Conditions
With a universal AC input (90~264VAC / 127~370VDC), the PWR-x-48 series units are equipped with overload, short circuit, over-voltage, and over-temperature protection. Passive air cooling ensures silent operation, and operational temperatures range from -20°C up to +70°C (or -30°C for the 960W model), making them suitable for demanding industrial applications.

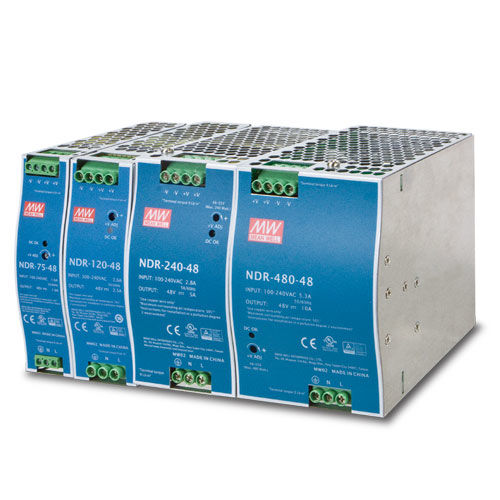

Available Models & Electrical Ratings:

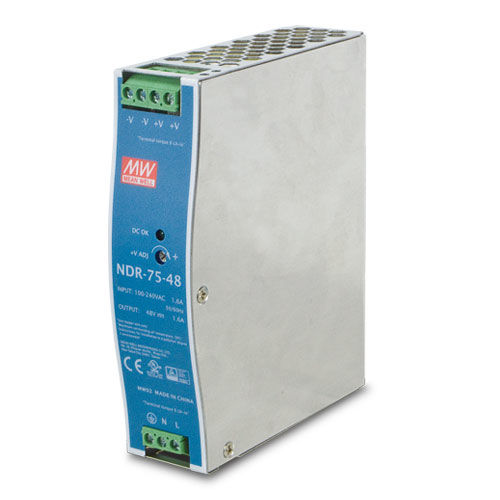

- PWR-75-48 (NDR-75-48)
- Output: 75W, 48V, 1.6A
- Dimensions: 32 × 125 × 102 mm, Weight: 0.51 kg
- Temp. range: -20°C ~ +70°C

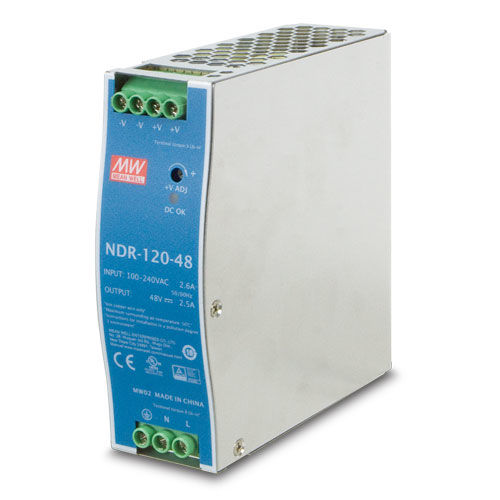

- PWR-120-48 (NDR-120-48)
- Output: 120W, 48V, 2.5A
- Dimensions: 40 × 125 × 113 mm, Weight: 0.6 kg

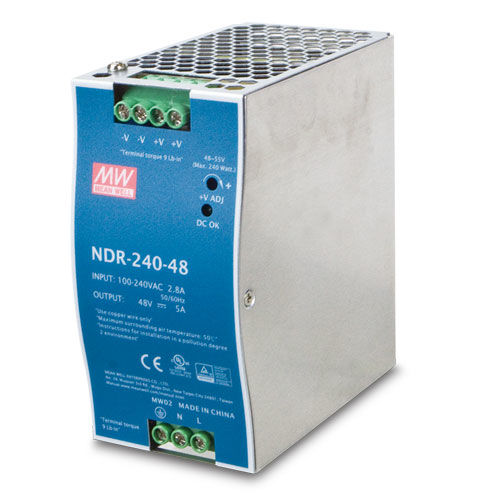

- PWR-240-48 (NDR-240-48)
- Output: 240W, 48V, 5A
- Dimensions: 63 × 125 × 113 mm, Weight: 1 kg
- Built-in active PFC

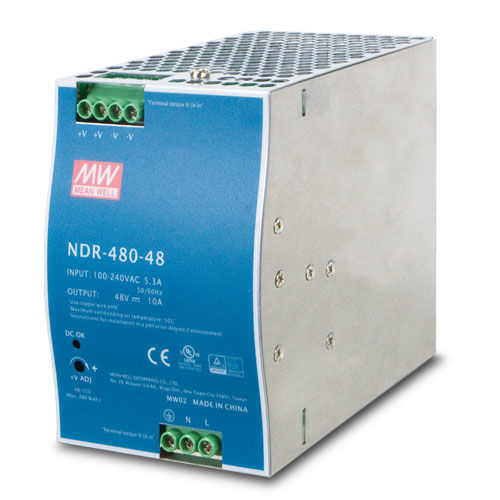

- PWR-480-48 (NDR-480-48)
- Output: 480W, 48V, 10A
- Dimensions: 85 × 125 × 128 mm, Weight: 1.5 kg
- Built-in active PFC

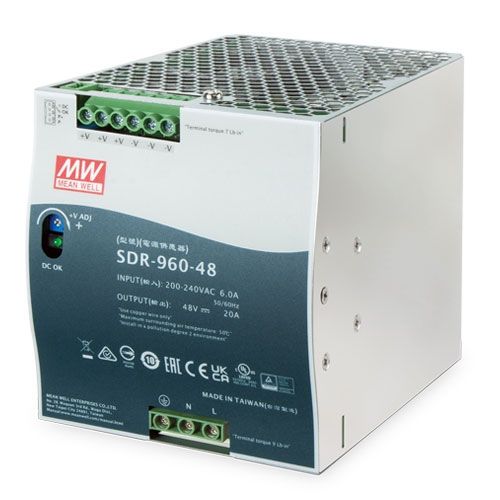

- PWR-960-48 (SDR-960-48)
- Output: 960W, 48V, 20A
- Dimensions: 110 × 125 × 150 mm, Weight: 2.47 kg
- Temp. range: -30°C ~ +70°C
- Built-in active PFC
Key Features:
- Universal AC input
- Protection: short circuit, overload, over-voltage, over-temperature
- Fanless, convection-cooled design
- UL508, EN61000-6-2 certified
- 100% full load burn-in tested
Application Scenarios:
Perfect for powering:
- Industrial PoE switches
- Wireless access points
- IP cameras
- Remote monitoring systems
- Digital signage
Questions & answers
What is the delivery time of PLANET Din-Rail Power Supply (PWR-120-48) 120 watts, 48V?
The article PLANET Din-Rail Power Supply (PWR-120-48) 120 watts, 48V is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet PWR-120-48 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET Din-Rail Power Supply (PWR-120-48) 120 watts, 48V always at the best possible price. We can give you a discount of 2% on PLANET Din-Rail Power Supply (PWR-120-48) 120 watts, 48V if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
