PLANET Single Port 10/100/1000Mbps Ultra PoE Splitter

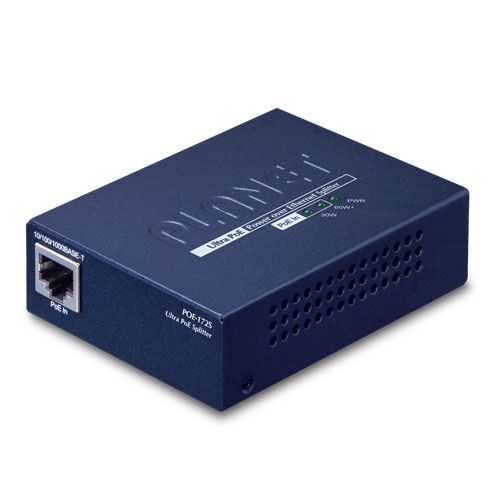

The PLANET POE-172S is a Gigabit Ultra Power over Ethernet splitter that complies with IEEE 802.3bt and supports selectable DC output (12V, 19V, or 24V) for powering high-performance non-PoE network devices. It receives both data and power over standard Ethernet cabling from an Ultra PoE injector or switch and splits it into separate data and DC power outputs, supporting up to 100 meters of transmission distance.

The innovative DIP switch design allows the user to choose the appropriate output voltage for specific devices such as PTZ speed dome cameras, digital signage displays, thin clients, or AIO touch PCs. With its fanless, rugged metal housing and compact design, the POE-172S ensures quiet and stable operation, ideal for enterprise and industrial environments.

Technical Specifications (English):

Interfaces:

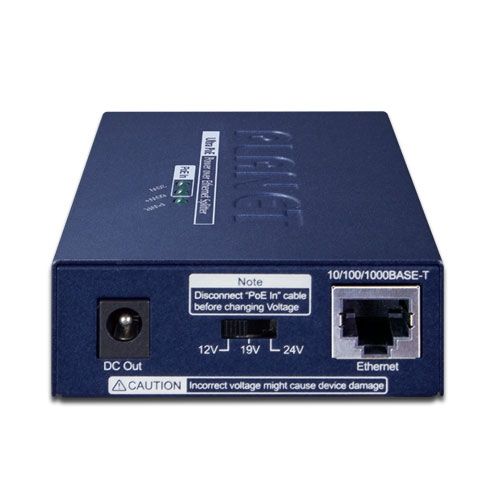

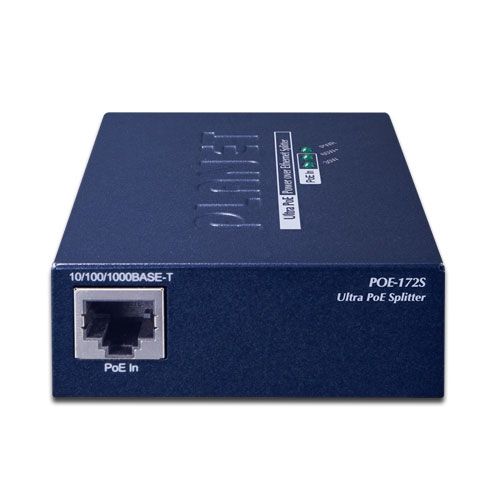

• 1 x RJ45 PoE Input Port (Data + Power)
• 1 x RJ45 Ethernet Data Output Port
• 1 x DC Output Socket (2.5mm)
• 1 x DIP Switch for DC Output Voltage Selection (12V/19V/24V)

PoE Features:

• Compliant with IEEE 802.3bt Type 3/4
• Backward compatible with IEEE 802.3at/af and Cisco UPOE
• Power transmission up to 100 meters
• Output: 12V (5A), 19V (3.15A), 24V (2.5A)

Hardware:

• Metal enclosure
• Compact, all-in-one design

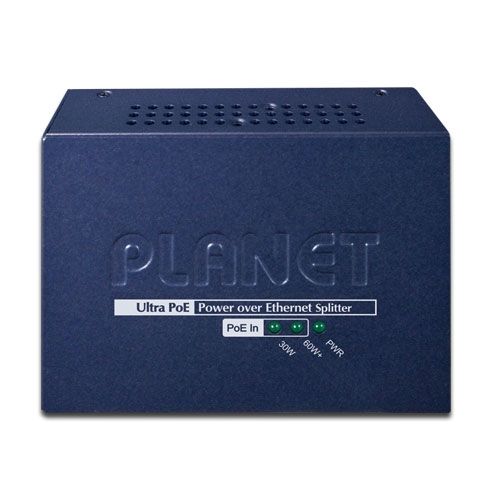

• LED Indicators: Power, PoE-in-use
• Dimensions: 94 x 70.3 x 26.2 mm
• Weight: 300g
• Mounting: Desktop or wall mount

Power:

• Input Voltage: 50~56V DC PoE
• Power Consumption:
• Full Ethernet load, no DC output: 3.7W
• Max DC output (12V @ 5A): 75W

Cabling Support:

• Ultra PoE: 4-pair Cat.5e/6 UTP, up to 100m
• 802.3af/at: 2-pair Cat.3/5 UTP, up to 100m

Environmental:

• Operating Temperature: 0 ~ 50°C
• Storage Temperature: -10 ~ 70°C
• Humidity: 5 ~ 90% (non-condensing)

Included Accessories:

• 1 x 15cm straight Ethernet cable
• 2 x DC adapter cables (5.5/2.5mm to 5.5/2.5mm and 5.5/2.5mm to 5.5/2.1mm)

Compliance:

• Standards: IEEE 802.3 / 802.3u / 802.3ab / 802.3af / 802.3at / 802.3bt
• Certifications: FCC, CE
