PLANET Single-Port 10/100/1000Mbps IEEE 802.3at PoE+

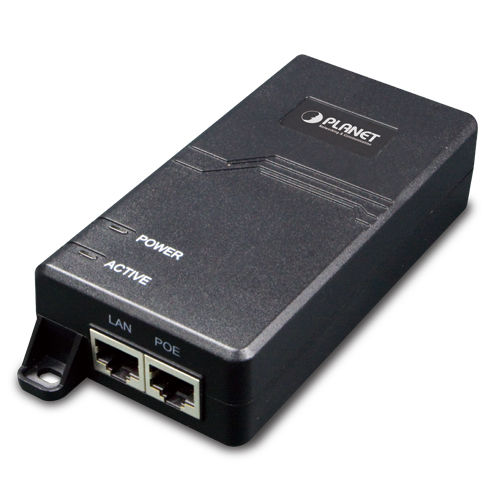

The PLANET POE-163 is a compact and powerful single-port Gigabit PoE+ injector compliant with IEEE 802.3at/af standards, delivering up to 30 watts of power over a single Ethernet cable. It’s ideal for powering high-consumption devices such as PTZ cameras, wireless access points, and VoIP phones in locations where power outlets are limited or unavailable.

Its integrated power supply, compact wall-mountable design, and plug-and-play functionality make the POE-163 a cost-effective and user-friendly solution for both home and enterprise users.

Technical Specifications (English):

Interfaces:

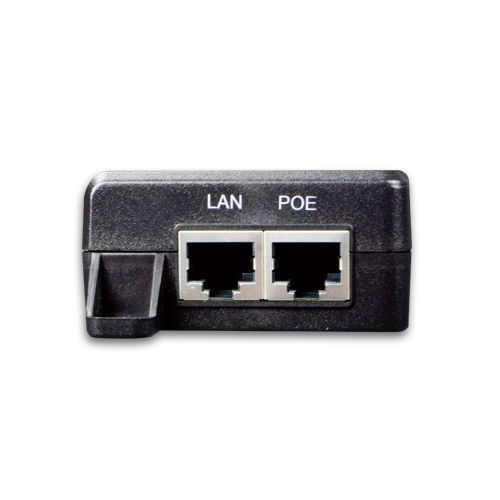

• 1 x RJ45 Data Input Port (LAN)
• 1 x RJ45 Data + Power Output Port (PoE)

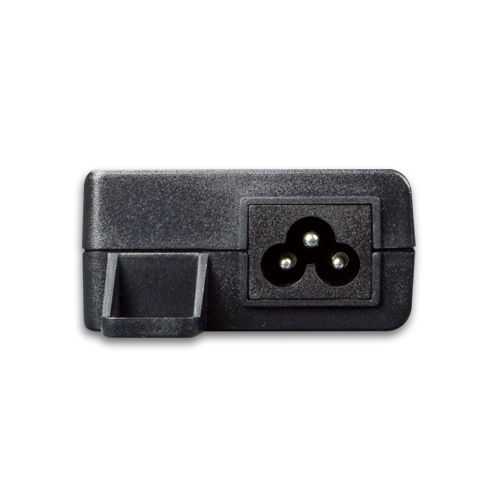

• 1 x AC 100–240V Power Socket

PoE:

• IEEE 802.3at compliant (PoE+), backward compatible with 802.3af
• Mid-span injector delivering up to 30 watts
• Power over Ethernet via pins 4/5(+) and 7/8(-)
• Auto-detects PoE-compatible devices and protects against incorrect installation
• Transmission distance up to 100 meters over Cat5/5e/6 cables

Hardware:

• Built-in power supply, plastic housing

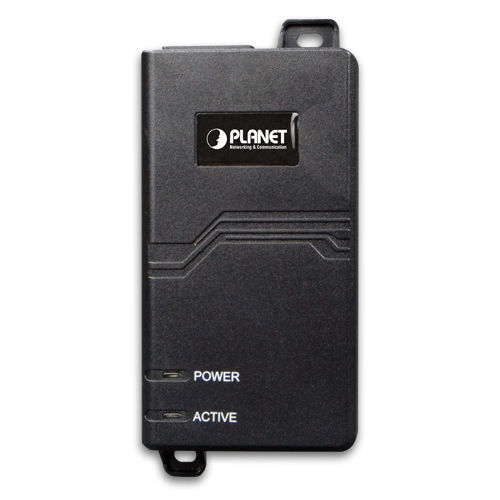

• LED indicators: Power (green), PoE Active (green)
• Dimensions: 115 x 62.5 x 31 mm
• Weight: 185g
• Power Output: DC 53V, 0.6A
• Power Consumption: max. 30W

Environmental:

• Operating Temperature: 0 ~ 50 °C
• Storage Temperature: -10 ~ 70 °C
• Humidity: 5 ~ 95% (non-condensing)

Standards:

• IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T
• IEEE 802.3af / 802.3at Power over Ethernet
• Regulatory Compliance: FCC Part 15 Class B, CE
