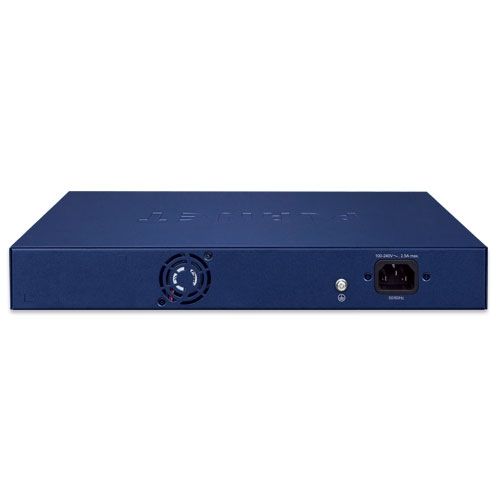

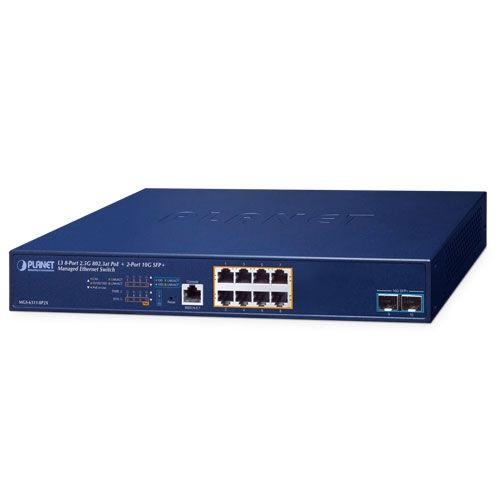

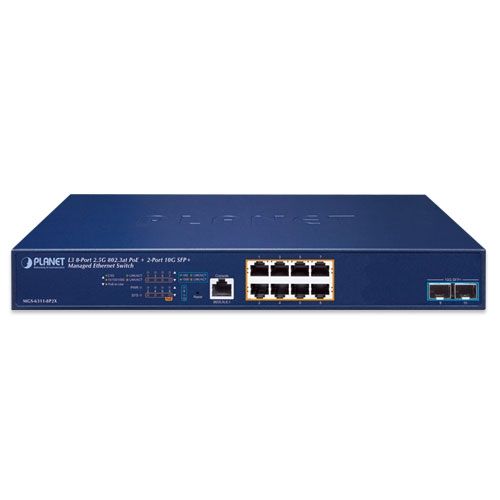

Planet 8-Port PoE+ Managed Switch MGS-6311-8P2X

The PLANET MGS-6311-8P2X is a powerful Layer 3 managed multigigabit switch with PoE+ support, designed for high-bandwidth network devices such as Wi-Fi 6 APs, NAS, VoIP systems and IP surveillance cameras. It features 8 10/100/1000/2500BASE-T ports with IEEE 802.3at PoE+ support and two 10G SFP+ uplinks for seamless fiber expansion.

With an 80Gbps switching fabric, robust Layer 2–4 traffic control, PoE scheduling, PD alive check, and advanced routing via RIP, OSPF, and static routes, this switch is a cost-effective, energy-efficient, and secure solution for enterprise networks.

Technical Specifications (English):

Ports:

• 8 x 10/100/1000/2500BASE-T RJ45 ports with IEEE 802.3af/at PoE+ (32W per port)
• 2 x 1G/10GBASE-X SFP+ slots (dual-rate, compatible with SX/LX/BX)
• 1 x Console port (RJ45 to RS232)

PoE:

• PoE Budget: 150W total
• Intelligent PD Alive Check
• PoE scheduling and power priority per port

Performance:

• Switching Fabric: 80Gbps (non-blocking)
• Forwarding Rate: 59.52 Mpps
• MAC Table: 16K, Jumbo Frame: 12K
• CPU: MIPS 800MHz, RAM: 512MB, Flash: 32MB
• Dimensions: 330 × 230 × 43.6 mm (1U), Weight: 2172g
• Power Consumption: 10.7W (system), 174W (with PoE)
• ESD: ±6KV, Surge: ±2KV/±4KV

Layer 3 Routing:

• Static, RIPv1/v2, OSPFv2
• VLAN-based interface routing
• IGMP Proxy, ARP Proxy
• IPv6: ICMPv6, ND, DNSv6

Layer 2 Functions:

• VLAN: 802.1Q, Q-in-Q, MAC/IP/protocol/subnet VLANs, PVE
• LACP: 64 trunk groups with 8 ports each
• STP, RSTP, MSTP, G.8032 ERPS
• IGMP v1/v2/v3 snooping, MLD v1/v2 snooping, MVR

QoS:

• 8 queues per port, WRR & Strict Priority
• Traffic classification: 802.1p, DSCP, port-based

Security:

• ACLs (IP, MAC, time-based, 4K entries)
• 802.1X, MAC/RADIUS/TACACS+ authentication
• DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
• Port isolation, DoS mitigation

Management:

• Web GUI, CLI (Telnet/Console), SNMP v1/v2c/v3, SSHv2, TLSv1.2
• IPv4/IPv6 dual-stack, Syslog, SNTP, RMON, sFlow, LLDP-MED
• PLANET Smart Discovery Utility
• DDM support for SFP diagnostics

Certifications:

• FCC Part 15 Class A, CE
• Standards: IEEE 802.3af/at/bz/ae/ab/u/z, 802.1Q/D/W/S/X/P, RFC-compliant (RIP, OSPF, IGMP, MLD)

Environment:

• Operating Temperature: 0 – 50°C
• Storage Temperature: –10 – 70°C
• Humidity: 5 – 90% (non-condensing)
