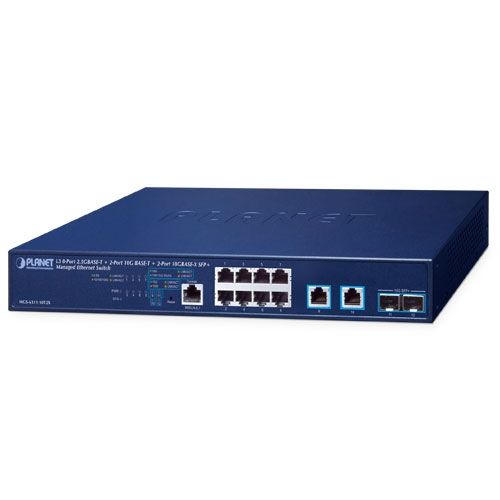

Planet 8-Port Managed Switch MGS-6311-10T2X

The PLANET MGS-6311-10T2X is a high-performance Layer 3 managed multigigabit switch, purpose-built for demanding data environments like Wi-Fi 6 networks, NAS systems, and server backbones. It delivers eight 2.5GBASE-T ports, two 10GBASE-T ports, and two 10GBASE-X SFP+ ports, enabling high-speed copper and fiber uplinks with flexible deployment.

Supporting advanced Layer 3 routing (Static, RIP, OSPF), ERPS Ring Protection, full IPv6 support, IGMP/MLD snooping, and robust QoS and security capabilities, the MGS-6311-10T2X is ideal for next-gen enterprise and data center networks.

Technical Specifications (English):

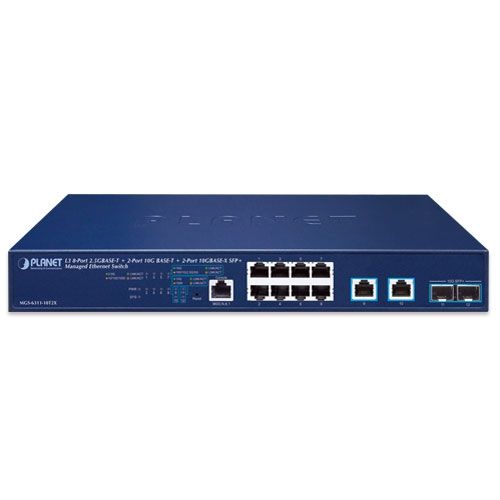

Physical Ports:

• 8 x 10/100/1000/2500BASE-T RJ45 ports
• 2 x 100M/1G/2.5G/5G/10GBASE-T RJ45 ports
• 2 x 1G/10GBASE-X SFP+ slots
• 1 x RJ45 to RS232 console port

Hardware:

• Switching Fabric: 120Gbps
• Forwarding Rate: 89.28 Mpps
• MAC Address Table: 16K
• Jumbo Frames: 12KBytes
• Shared Buffer: 12 MB
• CPU: MIPS 800MHz, RAM: 512MB, Flash: 32MB
• Dimensions: 330 x 230 x 43.6 mm (1U)
• Weight: 1953 g
• Power Consumption: 26.6W

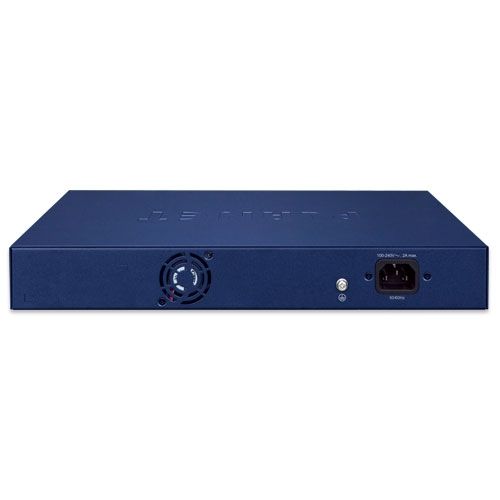

• Cooling: 1 internal fan

Layer 3 Routing:

• Static routing, RIP v1/v2, OSPF v2
• ARP, ARP Proxy, IGMP Proxy
• IPv6 support: ICMPv6, ND, DNSv6

Layer 2 & VLAN:

• IEEE 802.1Q VLAN tagging, Q-in-Q, GVRP, PVE
• MAC, IP-subnet, protocol-based VLANs
• LACP: 64 groups, up to 8 ports each
• STP/RSTP/MSTP
• G.8032 ERPS Ring, port mirroring

QoS:

• 8 queues per port, strict priority & WRR
• 802.1p, DSCP, and port-based classification

Multicast:

• IGMP snooping v1/v2/v3, MLD v1/v2
• MVR and querier mode supported

Security:

• 802.1X, RADIUS, TACACS+
• ACL: IP, MAC, time-based (up to 4K entries)
• DHCP Snooping, IP Source Guard, ARP Inspection
• DoS protection, traffic suppression

Management:

• Interfaces: Web, CLI (console/Telnet), SNMP v1/v2c/v3, SSHv2
• IPv4/IPv6 dual-stack management
• Features: Syslog, sFlow, LLDP/LLDP-MED, Smart Discovery Utility
• Firmware upgrade via TFTP/HTTP
• SNMP MIBs and RMON groups 1, 2, 3, 9

Certifications:

• FCC Part 15 Class A, CE
• Compliant with: IEEE 802.3 series, 802.1 series, RFCs for routing and multicast

Environmental:

• Operating Temperature: 0 – 50 °C
• Storage Temperature: –10 – 70 °C
• Humidity: 5 – 90% (non-condensing)
