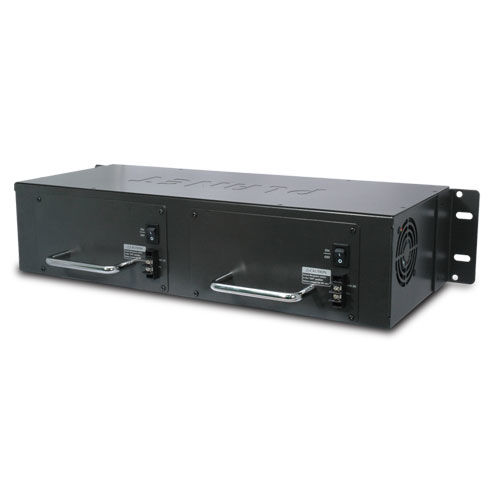

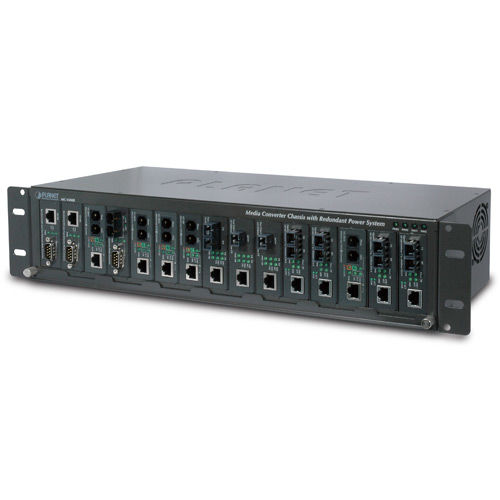

PLANET 15-Slot Media Converter Chassis (-48VDC) Redundant
|
422,30 EUR |
|
|
( 502,54 EUR incl. VAT ) ≈ £364.02 | ≈ $478.89 plus delivery charges: 53,00 € |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1225980 |
|---|---|
| Mfg Part No: | MC-1500R48 |
| UPC/EAN: | 4711213687778 |
| Weight: | 0.12 kg |
Product information for Planet MC-1500R48:
Each slot operates independently with its own power feed, allowing hot-swappable installation and removal. The built-in dual-fan system ensures consistent cooling, while system and fan status are clearly indicated by LED lights for streamlined monitoring.
Technical Specifications (English):
General:
- Number of Slots: 15 open slots
- Slot Dimensions: 27 × 95 × 71 mm (W × D × H)
- Hot-swappable design
- Form Factor: 19” rack-mountable, 2.4U height
- Weight: 4.2 kg
Compatibility:
- Supported Media Converters:
- Fast Ethernet: FT-80x, FT-90x, FT-1205A
- Gigabit Ethernet: GT-70x, GT-80x, GT-90x, GT-1205A
- VDSL2: VC-201A, VC-202A, VC-231
- Serial over Ethernet: ICS-10x series
Power Supply:
- Input: -48V DC (Range: -40V ~ -60V), 2A
- Output per Slot: 5V DC, 1A
- Power Consumption:
- System only: 6 Watts (20.46 BTU)
- Fully loaded: 96 Watts (327 BTU)
- Protections: Over-voltage, Over-current, Short-circuit
- Electrically isolated slots for each bay
Cooling & Indicators:
- Cooling: 2 built-in fans
- LED Indicators: Power 1, Power 2, Fan 1, Fan 2
Environmental:
- Operating Temperature: 0 ~ 50 °C
- Operating Humidity: 5% ~ 90% RH (non-condensing)
Storage:
- Storage Temperature: -20 ~ 70 °C
- Storage Humidity: 5% ~ 90% RH (non-condensing)
Certifications:
- FCC Class A, CE marked
Questions & answers
What is the delivery time of PLANET 15-Slot Media Converter Chassis (-48VDC) Redundant?
The article PLANET 15-Slot Media Converter Chassis (-48VDC) Redundant is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 16 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Planet MC-1500R48 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you PLANET 15-Slot Media Converter Chassis (-48VDC) Redundant always at the best possible price. We can give you a discount of 2% on PLANET 15-Slot Media Converter Chassis (-48VDC) Redundant if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
