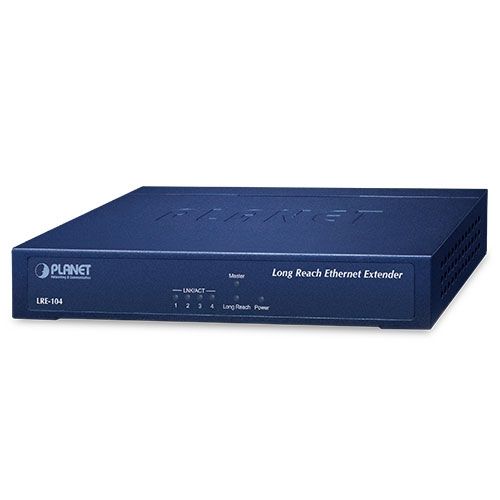

Planet 4-Port Long Reach Ethernet Extender LRE-104

The PLANET LRE-104 is a high-performance Long Reach Ethernet Extender designed for transmitting Ethernet data over UTP cables, phone wires, or coaxial cables across long distances. With four 10/100BASE-TX RJ45 ports and one combo RJ45/BNC Long Reach port, it provides outstanding flexibility for extending Ethernet to IP cameras, wireless APs, NVRs, or digital signage applications.

Offering up to 100 Mbps full-duplex over distances up to 1.2 km (phone wire) and 2 km (coaxial), the LRE-104 enables smooth analog-to-digital system upgrades without the need to lay new cabling. A built-in DIP switch allows simple Master/Slave setup, and the unit supports Daisy-Chaining via BNC T-connectors for further expansion.

Built with a durable metal enclosure and equipped with LED status indicators, the LRE-104 is ideal for industrial, campus, and community deployments requiring robust and reliable Ethernet extension.

Technical Specifications (English):

Interfaces:

• 4 x 10/100BASE-TX RJ45 ports (Auto-Negotiation, Auto-MDI/MDI-X)

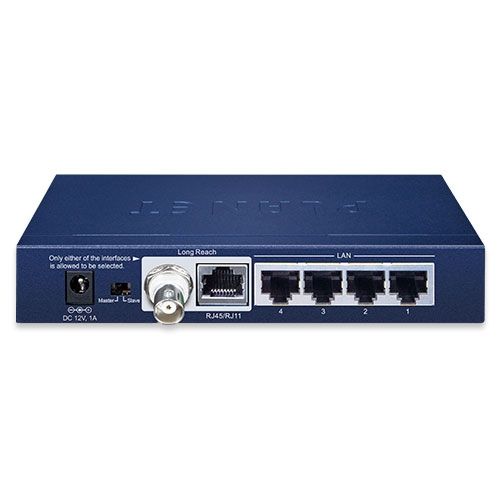

• 1 x RJ45 Long Reach port (for UTP/phone wire)
• 1 x BNC female Long Reach port (for coaxial cable)

Cabling & Distances:

• UTP: up to 800 m
• Phone wire (RJ11): up to 1200 m
• Coaxial (RG-6/U, RG-59/U): up to 2000 m
• *Only one cable type can be used at a time for long reach function

Data Rates (Up/Down Examples):

• UTP @ 200 m: 78/78 Mbps
• Phone wire @ 400 m: 82/76 Mbps
• BNC @ 1000 m: 79/77 Mbps
• BNC @ 2000 m: 46 Mbps (downstream)

Technology:

• Standard: IEEE 1901 Long Reach Ethernet
• Modulation: Wavelet-OFDM
• Frequency Band: 2–28 MHz
• Encryption: 128-bit AES

Features:

• VLAN: IEEE 802.1Q tag transparent
• Multicast Pass-through
• DIP switch for Master/Slave mode
• Daisy-chaining via BNC T-connector (up to 4 nodes per port)

Housing & Power:

• Material: Metal
• Dimensions: 154.6 × 86.0 × 26.3 mm
• Weight: 347 g
• Power Supply: 12 V DC, 1A external adapter
• ESD Protection: 6KV DC

LED Indicators:

• Power, LAN (LNK/ACT), Long Reach, Master mode

Compatibility:

• Works with LRE-101, LRE-101C
• Fits PLANET Media Converter Chassis (MC-700, MC-1500 series)

Environment:

• Operating Temp: 0 – 50 °C
• Storage Temp: –10 – 70 °C
• Humidity: 5 – 95% (non-condensing)

Certifications:

• FCC Part 15 Class A, CE
• Compliant with: IEEE 802.3, 802.3u, 802.3x
