PLANET 1-Port 10/100TX over Coaxial Long Reach Ethernet Ext.
|
123,83 EUR |
|
|
( 147,36 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 2024813 |
|---|---|
| Mfg Part No: | LRE-101C |
| UPC/EAN: | 4711605286756 |
| Weight: | 0.12 kg |
Product information for Planet LRE-101C:
It supports simple Master/Slave configuration via DIP switch and is ideal for point-to-point or point-to-multi-point applications. Daisy-chaining is possible via BNC T-connectors, allowing up to four devices per port. With AES encryption, VLAN tag transparency, low power consumption, and plug-and-play deployment, the LRE-101C is ideal for digital surveillance, IPTV, educational broadcasting, and more.
Technical Specifications (English):
Interfaces:
- LAN Port: 1 x 10/100BASE-TX RJ45, auto-negotiation, auto-MDI/MDI-X
- Cabling: Cat5e or better, max. 100 m
- Max Frame Size: 1522 bytes
- Coaxial Port: 1 x BNC (75 Ω) for Ethernet over coax
- Supported cables: RG-6/U (≤12Ω/1000ft), RG-59/U (≤30Ω/1000ft)
- Max Distance: up to 2000 m (6561 ft)
Performance & Transmission:
- Modulation: Wavelet-OFDM
- Frequency Band: 2 – 28 MHz
- Encryption: 128-bit AES
- Long Reach Ethernet Standard: IEEE 1901
- Sample Data Rates:
- 200 m: 94/94 Mbps
- 1000 m: 76/73 Mbps
- 2000 m: 3/8 Mbps
Features:
- DIP Switch: Master or Slave mode selection
- VLAN: IEEE 802.1Q VLAN tag transparent
- Multicast Pass-through
- Daisy-chain: BNC T-connector (up to 4 nodes per port)
Housing & Dimensions:
- Material: Metal
- Dimensions: 94 × 70.3 × 26.2 mm
- Weight: 194 g

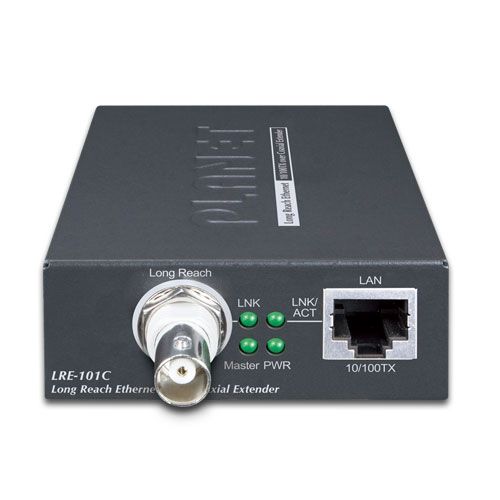

- LED Indicators:
- Power (Green), LAN (10/100 Mbps LNK/ACT), Long Reach (LNK/ACT), Master Mode (Green)
Power Supply:

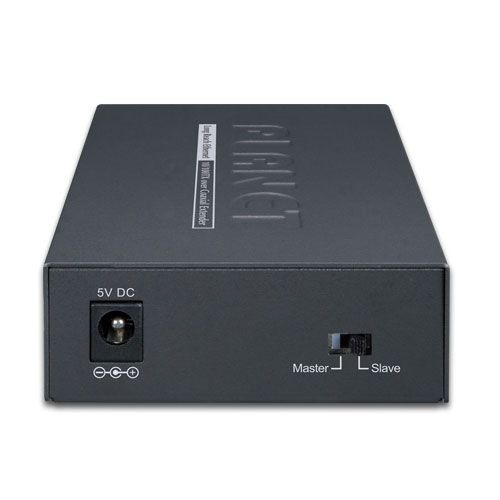

- Input: 5V DC, 2A external power
- Power Consumption: 1.5W (full load)
Environmental:
- Operating Temperature: 0 – 50 °C
- Storage Temperature: –10 – 70 °C
- Humidity: 5 – 95% (non-condensing)
Certifications:
- FCC Part 15 Class A, CE
- Standards: IEEE 802.3, 802.3u, 802.3x
- Compatible with PLANET MC-700 / MC-1500 chassis series
