Planet Industrial IP30 LoRa Node Controller LN1140
|
146,87 EUR |
|
|
( 174,78 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1197079 |
|---|---|
| Mfg Part No: | LN1140 |
| UPC/EAN: | 4711605287128 |
| Weight: | 0.12 kg |
Product information for Planet LN1140:
The device operates on multiple international LoRa frequency bands and comes in a compact, IP30-rated metal enclosure, suitable for space-limited industrial environments. Its fanless design ensures quiet operation, while its wide input voltage range (9–48V DC or 24V AC) enhances flexibility. With built-in status LEDs and a temperature sensor, the LN1140 provides real-time diagnostics and reliable performance.
Technical Specifications (English):
Wireless Technology:
- Transmission: LoRa, compatible with LoRaWAN (Class A/B/C)
- Modulation: LoRa and FSK
- Frequency Range: 863 – 930 MHz (EU868, US915, AU915, AS923, IN865, KR920, RU864)
- Tx Power: 16 dBm (EU868), 20 dBm (US915)
- Sensitivity: -136 dBm
- Antenna: 1 × 50 Ω SMA Connector (female)

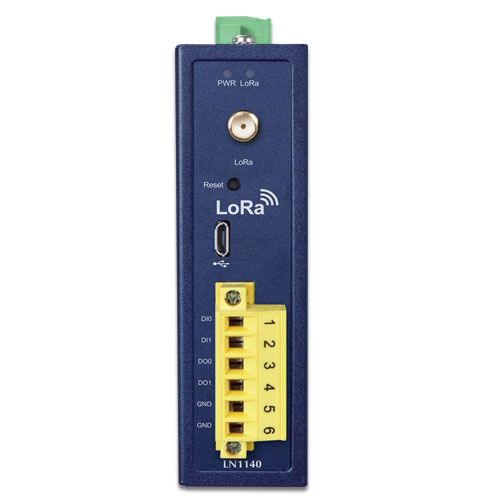

Digital I/O Interfaces:
- Digital Input:
- Pin 1: DI0
- Pin 2: DI1
- Level 0: –24V to 2.1V (±0.1V)
- Level 1: 2.1V to 24V (±0.1V)
- Input Load: max. 10 mA @ 24V DC
- Digital Output:
- Pin 3: DO0
- Pin 4: DO1
- Open collector: max. 100 mA @ 24V DC
- GND: Pin 5 and 6
Interfaces & Features:
- Configuration Port: 1 × Micro USB
- LED Indicators: 1 × PWR, 1 × LoRa
- Built-in Temperature Sensor

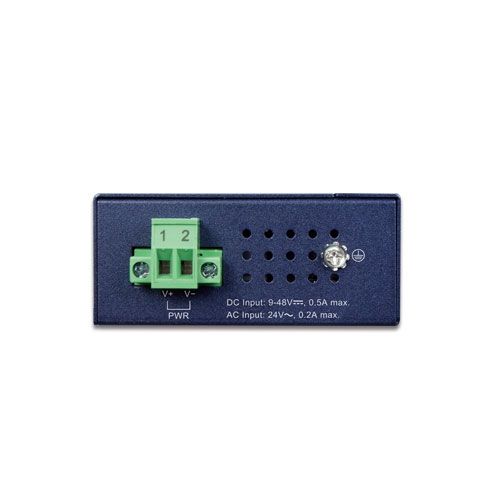

Power Supply:
- Input: 9 – 48V DC or 24V AC
- Connector: 2-pin removable terminal block
Enclosure & Mounting:
- Material: Metal, IP30 rated
- Dimensions: 30 × 70 × 104 mm
- Weight: 218 g
- Mounting: DIN-rail or wall-mountable
Environmental:
- Operating Temperature: –40 °C to +75 °C
- Relative Humidity: 5% – 95% (non-condensing)
Certifications:
- CE, FCC
