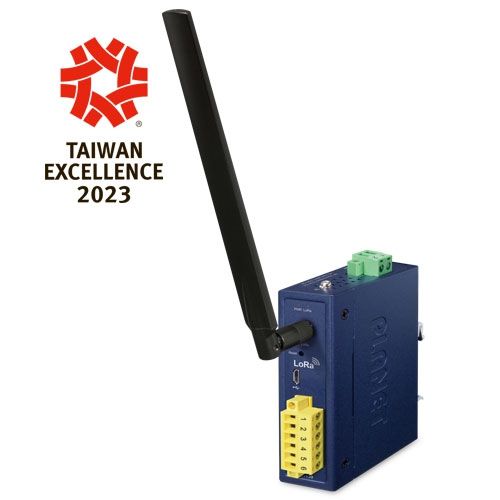

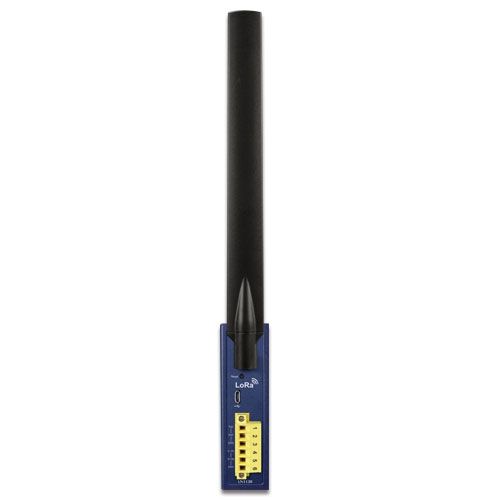

Planet Industrial IP30 LoRa Node Controller LN1130

The PLANET LN1130 is an industrial-grade LoRa Node Controller designed for building efficient and intelligent IoT environments. With built-in RS232 and RS485 serial interfaces, it allows seamless data acquisition from various types of embedded sensors and devices – including temperature sensors, access control systems, and security equipment.

Fully compliant with LoRaWAN Class C and compatible with standard LoRaWAN gateways like the PLANET LCG-300 series, the LN1130 is ideal for smart metering, building automation, and HVAC monitoring. Its support for a wide range of sub-GHz LoRa frequency bands makes it suitable for global deployment.

Featuring a compact, IP30-rated metal enclosure and an extended operating temperature range from -40 to +75 °C, the LN1130 is built for industrial environments. Flexible DIN-rail or wall mounting allows easy installation in tight spaces. The integrated temperature sensor, configuration via micro USB, and clear LED indicators provide convenience and real-time insight.

Technical Specifications (English):

Wireless Technology:

• Transmission Standard: LoRa, LoRaWAN Class A/B/C compatible
• Modulation: LoRa and FSK
• Frequency Range: 863 – 930 MHz (EU868, US915, AU915, AS923, IN865, KR920, RU864)
• Tx Power: 16 dBm (EU868) / 20 dBm (US915)
• Sensitivity: -136 dBm
• Antenna Connector: 1 x SMA (50 Ω, female)

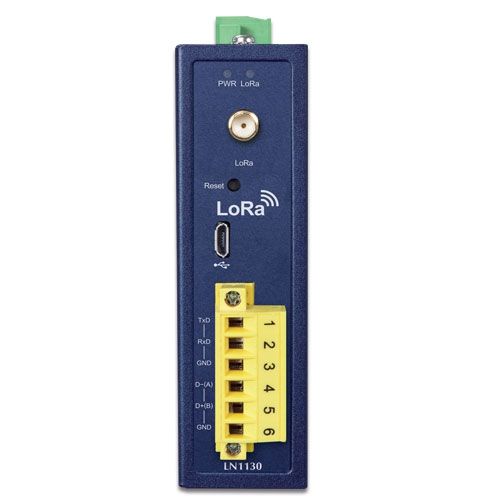

Interfaces:

• RS232 (Transparent Mode): Pin 1–3 (TxD, RxD, GND)
• RS485 (Modbus RTU): Pin 4–6 (D-(A), D+(B), GND)
• Configuration Port: 1 x Micro USB
• Data Interface Connector: 6-pin removable terminal block
• Power Connector: 2-pin removable terminal block

Serial Communication:

• Baud Rate: 600 – 256,000 bps (RS232 & RS485)
• Protocols: Transparent (RS232), Modbus RTU (RS485)

Sensors & Indicators:

• Built-in temperature sensor
• LED Indicators: 1 x PWR, 1 x LoRa

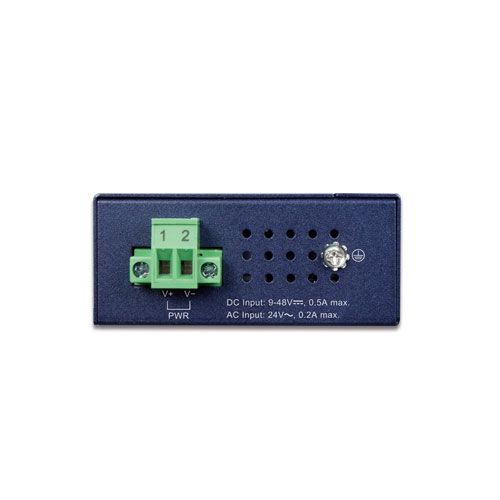

Power Supply:

• Input: 9 – 48V DC or 24V AC
• Connector: 2-pin terminal block

Enclosure & Mounting:

• Housing: Metal, IP30-rated
• Dimensions: 30 x 70 x 104 mm
• Weight: 218 g
• Mounting: DIN-rail or wall-mountable

Environmental:

• Operating Temperature: -40 °C to +75 °C
• Humidity: 5 – 95% (non-condensing)

Certifications:

• CE, FCC
