PLANET Industrial 10G Copper to 10GBASE-X SFP+ Media Conv.

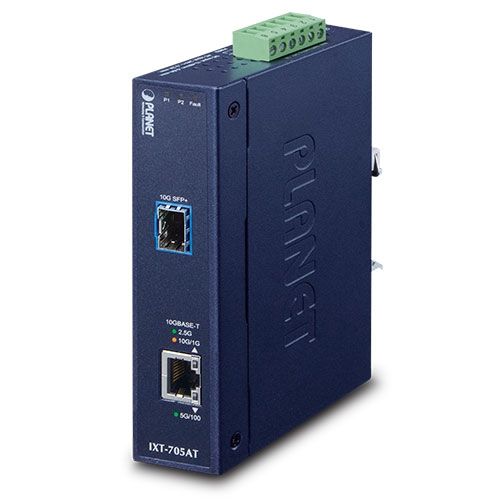

The PLANET IXT-705AT is a powerful, industrial-grade 10G Ethernet media converter that provides a reliable and flexible solution for extending network distances in harsh environments. Housed in a rugged, compact IP30-rated metal case, it features a 10GBASE-T RJ45 copper port and a 10GBASE-X SFP+ fiber port, enabling seamless media conversion between copper and fiber.

Supporting speeds from 100Mbps up to 10Gbps, a high switching fabric of 20Gbps, and jumbo frame capability up to 16K, the IXT-705AT is ideal for high-performance backbones, data centers, industrial automation, and carrier-grade infrastructure. It is engineered to operate in extreme conditions from –40 to 75 °C and withstand vibration and shock environments.

Redundant power inputs (12–48V DC or 24V AC), robust ESD and surge protection, and plug-and-play simplicity make the IXT-705AT a highly reliable and cost-effective networking solution for industrial deployments.

Technical Specifications (English):

Interfaces:

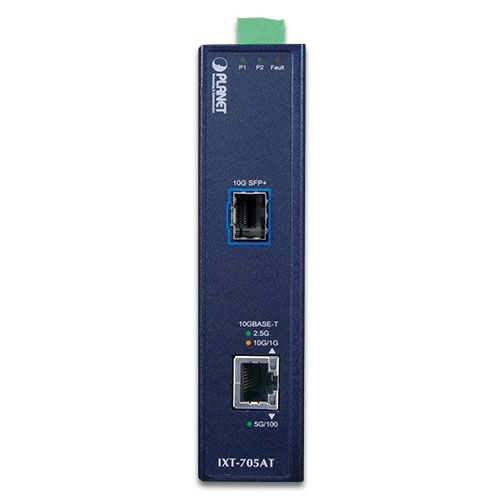

• Copper: 1 x RJ45 (100M/1G/2.5G/5G/10GBASE-T), Auto MDI/MDI-X, Auto-Negotiation
• Fiber: 1 x 10GBASE-X SFP+ (SR/LR compatible)

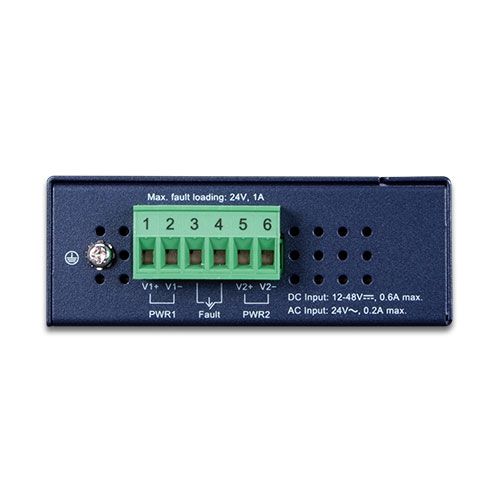

• Power Connector: 6-pin terminal block (1/2 Power 1, 3/4 Alarm, 5/6 Power 2)
• Alarm: 1 relay output for power failure (1A @ 24V DC)

Housing & Installation:

• Metal enclosure, IP30 rated
• DIN-rail and wall-mountable
• Dimensions: 32 x 87.8 x 135 mm
• Weight: 385g

Power Supply:

• DC 12–48V or AC 24V (redundant input with reverse polarity protection)
• Power consumption varies by SFP module used

Performance & Features:

• Switching Fabric: 20Gbps
• Jumbo Frames: up to 16K
• MAC Table: 9K entries
• Flow Control: IEEE 802.3x (full-duplex), back pressure (half-duplex)

Protection:

• ESD Protection: ±6KV contact discharge, ±8KV air discharge
• Surge Protection: ±4KV

Cable Support:

• Copper (up to 100 m):
• 10G: Cat 6A/7
• 5G: Cat 6/6A/7
• 2.5G/1G/100M: Cat 5e/6/6A/7
• Fiber (SFP+):
• Multi-mode: up to 300 m (50/125μm or 62.5/125μm)
• Single-mode: up to 60 km (9/125μm)

Environmental:

• Operating Temp: –40 ~ 75 °C
• Storage Temp: –40 ~ 75 °C
• Humidity: 5–95% (non-condensing)

Certifications & Standards:

• Standards: IEEE 802.3u/ab/bz/an/ae, IEEE 802.3x
• Certifications: CE, FCC Class A
• Stability Testing: IEC60068-2-32 (Drop), -27 (Shock), -6 (Vibration)
