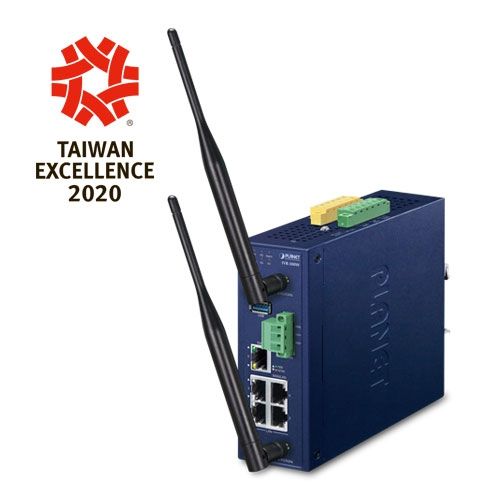

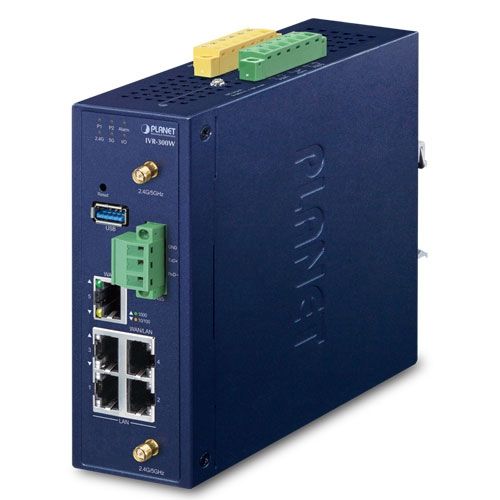

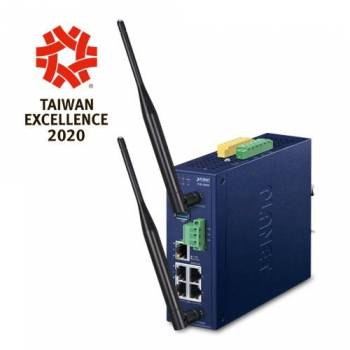

PLANET Industrial 5-Port WiFi VPN Security Gateway IVR-300W

The PLANET IVR-300W is a high-performance industrial Wi-Fi 6 VPN security gateway, specifically designed for industrial, factory, and transportation environments. With Wi-Fi 6 (802.11ax) support and dual-band wireless speeds of up to 1800 Mbps, it provides strong, stable wireless communication even in interference-heavy areas.

Encased in a rugged IP30-rated metal housing and built for extreme environments (–40 to 75 °C), the IVR-300W supports advanced networking and security functions, including SD-WAN, dual-WAN failover, load balancing, and a full range of VPN protocols: IPSec, SSL, PPTP, L2TP, and GRE.

Its built-in AP controller enables centralized management of PLANET Smart APs, supporting bulk configuration and firmware updates. With SPI firewall, DoS/DDoS prevention, and content filtering, this gateway ensures secure and controlled network operations. It also integrates Captive Portal and RADIUS for guest network authentication.

Technical Specifications (English):

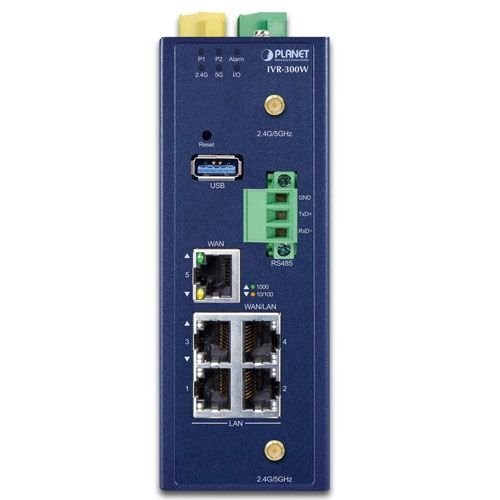

Interfaces:

• Copper: 5 x 10/100/1000BASE-T RJ45 (3 LAN, 1 LAN/WAN, 1 WAN)
• Serial: 1 x RS485 (3-pin terminal block)
• USB: 1 x USB 3.0
• Reset Button: < 5 sec = reboot, > 5 sec = factory reset

Digital I/O:

• 2 x DI: Level 0 (-24V~2.1V), Level 1 (2.1V~24V), max. 10mA @24V DC
• 2 x DO: Open Collector, max. 100mA @24V DC

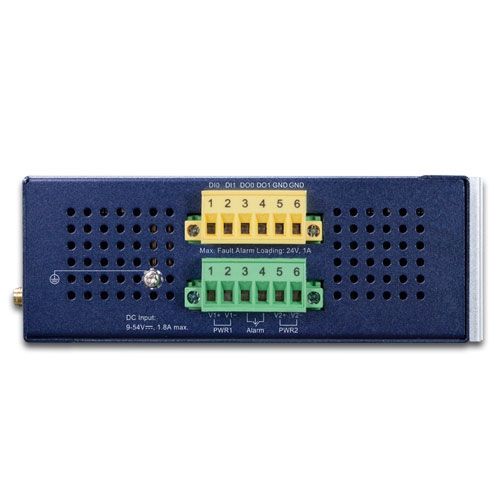

Power Input:

• 6-pin terminal block (1/2 = Power 1, 3/4 = Alarm, 5/6 = Power 2)
• Voltage: 9–54V DC, 1.8A
• Power Consumption: max. 3.8W (idle), 15.6W (full load)

Enclosure:

• Metal, IP30
• Mounting: DIN-rail, wall, desktop

LED Indicators:

• System: P1/P2 (Green), Alarm (Red), I/O (Red)
• Ethernet: 1000 LNK/ACT (Green), 10/100 LNK/ACT (Amber)
• Wi-Fi: 2.4G (Green), 5G (Green)

Dimensions & Weight:

• Size: 50 x 135 x 135 mm
• Weight: 773g

Wireless:

• Standards: IEEE 802.11a/b/g/n/ac/ax (Dual band)
• Band Mode: 2.4GHz & 5GHz concurrent
• Data Rates: up to 600 Mbps (2.4 GHz), 1200 Mbps (5 GHz)
• Antennas: 2 x 5 dBi external (SMA)
• Channel Width: 20/40/80 MHz
• Transmit Power Control and MAC Filtering

Security:

• Encryption: WEP (64/128-bit), WPA/WPA2/WPA3 (TKIP/AES), 802.1x
• SPI Firewall, Content Filtering, DoS/DDoS Protection
• MAC/IP Filtering, NAT ALG, SYN/ICMP Flood Defense

VPN Features:

• Protocols: IPSec, GRE, PPTP, L2TP, SSL (OpenVPN)
• VPN Tunnels: up to 60
• Throughput: up to 108 Mbps
• Encryption: DES, 3DES, AES-128/192/256
• Authentication: MD5, SHA-1/256/384/512

Networking:

• Dual WAN with auto-failover and load balancing
• Protocols: IPv4/IPv6, TCP/IP, UDP, SNMP v1/v2c/v3, IGMP, UPnP
• QoS, DMZ, Port Forwarding, MAC Clone
• DHCP Server/Client, DDNS (PLANET, Easy DDNS, DynDNS, No-IP)

Management:

• Web GUI (HTTP/HTTPS)
• Secure access: TLSv1.2, SNMPv1/v2c/v3
• Setup wizard, Dashboard, System Monitoring
• Auto Reboot, USB/Remote configuration and firmware upgrade

AP Management:

• Central Smart AP management with cluster support
• Captive Portal and RADIUS Server

Certifications:

• CE, FCC

Environment:

• Operating: –40 to 75 °C, 5–90% RH (non-condensing)
• Storage: –40 to 85 °C, 5–90% RH (non-condensing)
