PLANET ITS-6326 PoE Series – Layer-3 Managed PoE+ Switch for Rail and Industrial Applications

The PLANET ITS-6326 PoE Series is a rugged industrial-grade Layer-3 managed switch line, purpose-built for demanding applications in railway systems, vehicles, and heavy industry. Certified to EN50155, EN45545-2, and IEC 61373 standards, these switches guarantee stability in environments with extreme temperatures ranging from -40 °C to 70 °C.

Each model is equipped with M12 X-coded ports and IEEE 802.3at PoE+ support, offering up to 36 W per port. With Layer-3 capabilities like OSPFv2, VLAN-based routing, IPv6 support, and Layer-2 redundancy technologies (ERPS, MSTP), the series is engineered for mission-critical networking. Smart PoE functions such as alive check, scheduling, and energy saving make this line highly reliable and energy-efficient.

Model Overview:

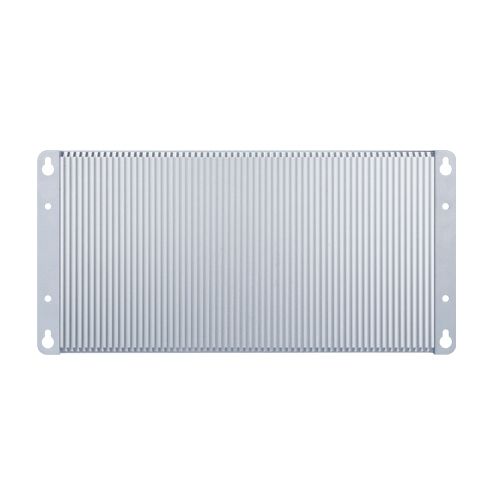

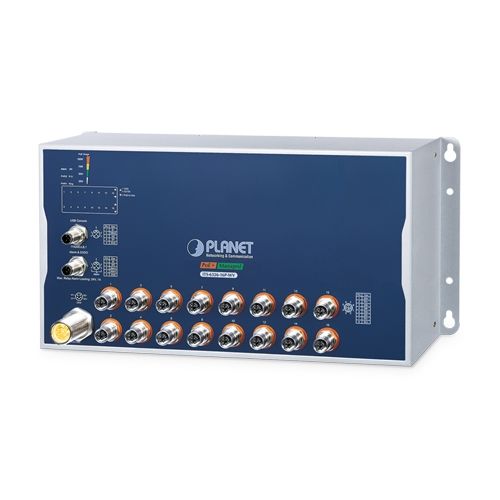

• ITS-6326-16P-WV: 16x PoE+ ports | 24–110 VDC | Heat-dissipating back panel

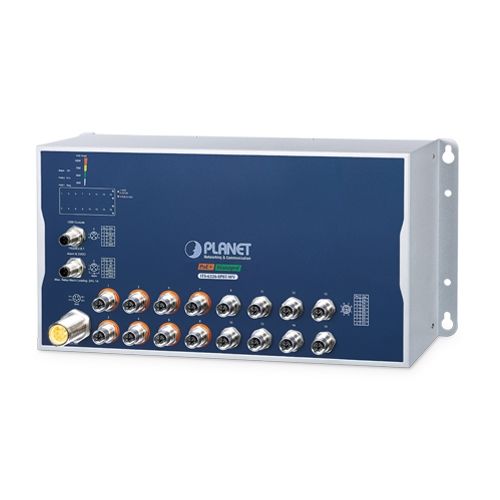

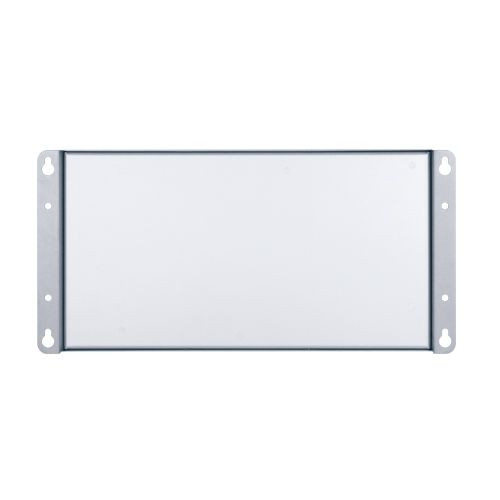

• ITS-6326-8P8T-WV: 8x PoE+ + 8x non-PoE ports | 24–110 VDC | Flat back panel

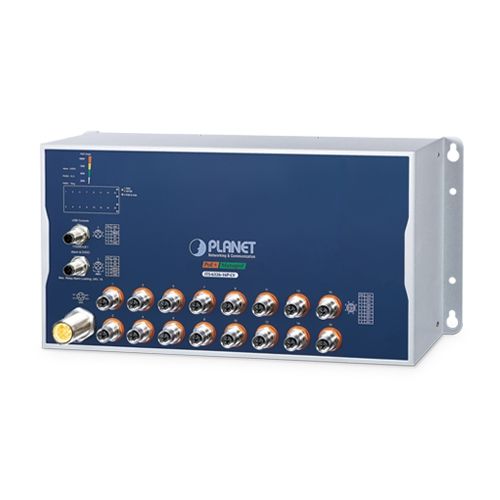

• ITS-6326-16P-LV: 16x PoE+ ports | 24–54 VDC | Heat-dissipating back panel

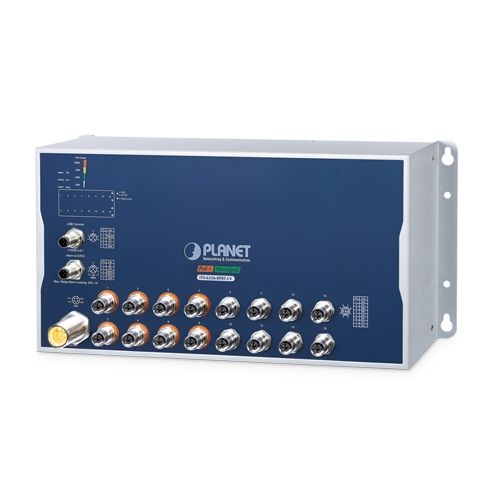

• ITS-6326-8P8T-LV: 8x PoE+ + 8x non-PoE ports | 24–54 VDC | Flat back panel

Key Specifications:

Power:

• Dual DC input (M23 connector)
• WV Models: 24–110 VDC (16.8–137.5 VDC)
• LV Models: 24–54 VDC (16.8–54 VDC)

PoE+:

• IEEE 802.3at PoE+, 36W per port
• PoE Budget: up to 100 W
• Extended reach up to 250 m in extend mode
• Intelligent PoE: scheduling, PD alive check, power limiting

Switching:

• Switch Fabric: 32 Gbps
• Throughput: 23.8 Mpps @ 64 Byte
• 16K MAC table, 32Mbit buffer

Routing:

• OSPFv2/v3, RIPv2, static IPv4/IPv6 routing
• VLAN-based routing (up to 128 VLAN interfaces)

Layer-2:

• VLANs (up to 4K), Q-in-Q, Voice, MAC/Protocol VLAN
• Spanning Tree: STP, RSTP, MSTP
• Link Aggregation (LACP), ERPS Ring <10ms
• IGMP/MLD Snooping, LLDP, Port Mirroring

Security:

• ACLs (L2–L4), DHCP Snooping, IP Source Guard
• IEEE 802.1X (port/MAC-based), RADIUS, TACACS+
• DoS protection, private VLANs

Management:

• Web/CLI/Telnet/SNMPv3
• Secure Access: SSHv2, TLSv1.2
• PLANET NMS, NMSViewerPro, CloudViewerPro
• ONVIF discovery, PD reboot, dual firmware image

Highlights:

• IEEE 1588v2 PTP (Transparent Clock)
• Modbus TCP for SCADA/HMI integration
• Digital input/output alarms, Syslog/SMTP alerts
• Intelligent reboot of failed PDs via PoE

Mechanical:

• Housing: IP40 aluminum
• Mounting: Wall-mount
• Dimensions: 400 × 74 × 195 mm
• Weight: 3300–4500 g (model dependent)
