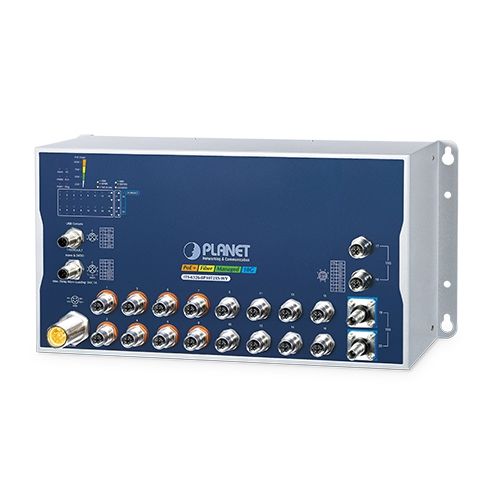

Planet Industrial L3 8-Port M12 Manag. ITS-6326-8P10T2XS-WV

PLANET ITS-6326 PoE Series – Advanced Layer-3 PoE+ Switch with 10G M12 for Railway and Industrial Use

The PLANET ITS-6326 PoE series is a robust Layer-3 managed switch lineup tailored for demanding railway, vehicle, and factory automation environments. Certified to meet EN50155, EN45545-2, and IEC 61373 standards, it delivers reliability in extreme conditions from -40 to +70°C, with shock and fire resistance built-in.

Featuring ruggedized M12 X-coded PoE+ ports, the ITS-6326 series provides up to 36 watts per port via IEEE 802.3at for powering high-demand devices such as PTZ cameras, wireless APs, or IP phones. High-speed data transmission is ensured by up to two 10GBASE-T M12 ports and two 10G Q-ODC fiber ports, enabling a future-proof Ethernet backbone.

For fail-safe performance, select models support power failure bypass relays that keep the network flowing even during power loss. Combined with ERPS, MSTP, and advanced Layer 3 routing, these switches guarantee top-tier network resilience.

Technical Specifications:

Models:

• ITS-6326-16P2TB2XS-WV: 16x PoE+ M12, 2x 10G M12 (with bypass), 2x 10G Q-ODC
• ITS-6326-16P2T2XS-WV: 16x PoE+ M12, 2x 10G M12, 2x 10G Q-ODC
• ITS-6326-8P10T2XS-WV: 8x PoE+ M12, 8x non-PoE M12, 2x 10G M12, 2x 10G Q-ODC

PoE Features:

• IEEE 802.3at PoE+ (up to 36W per port)
• Total budget: 80W (≤36V DC), 100W (>36V DC)
• PoE Scheduling, Alive Check, Auto Recovery, Long Reach PoE up to 250m

High Availability:

• ITU-T G.8032 ERPS (<10ms)
• MSTP/STP
• Optional Bypass Relay for uninterrupted traffic flow

Layer 3 Capabilities:

• IPv4/IPv6 Static Routing, OSPFv2/v3, RIPv2
• VLAN Interface Routing, up to 128 static routes

Layer 2 Features:

• VLAN: 4K groups, Q-in-Q, MAC/Protocol/Voice VLAN
• Link Aggregation (LACP): 10 groups
• IGMPv1–v3, MLDv1/v2 Snooping, LLDP, BPDU Guard

Security:

• ACLs (L2–L4), 802.1X (port & MAC-based)
• IP Source Guard, DHCP Snooping, Private VLANs
• RADIUS, TACACS+, DoS Protection

Management:

• Web, CLI, Telnet, SNMPv1/v2c/v3
• Secure: SSHv2, TLSv1.2
• PLANET UNI-NMS, CloudViewerPro, NMSViewerPro
• Dual firmware, Syslog, SMTP, TFTP

Highlights:

• IEEE 1588v2 PTP (transparent clock)
• Modbus TCP
• Digital Input/Output Alarm Interface
• ONVIF Integration with floor mapping
• IP40 metal housing, wall-mount
• Temperature: -40 to +70°C; Humidity: 5–95% non-condensing

Dimensions & Weight:

• Size: 400 × 74 × 195 mm
• Weight: 4700 g
