Planet Industrial L3 16-Port M12 Managed ITS-6326-18T2XS-WV

PLANET ITS-6326 – Advanced Layer-3 Managed Switch for Railway and Industrial Applications

The ITS-6326 series from PLANET is an industrial-grade Layer 3 managed switch line tailored for railway transport, vehicle deployments, and challenging industrial environments. Compliant with railway-specific standards including EN50155, EN45545-2, and IEC 61373, the series is built to endure extreme temperatures from -40 to +70 °C and harsh mechanical conditions.

Equipped with rugged M12 X-coded copper ports, optional 10GBASE-T and Q-ODC fiber interfaces, and featuring dynamic Layer 3 routing protocols (OSPFv2, RIPv2, static), the ITS-6326 series offers seamless, high-speed Ethernet with up to 112Gbps switch fabric. With redundant ring technology, ERPS, and MSTP, the series delivers rapid failover for mission-critical applications.

Powerful security features include ACLs, DHCP Snooping, IP Source Guard, 802.1X authentication, and support for secure protocols like SNMPv3, SSHv2, and TLS. Its flexible remote management options via Web, CLI, and PLANET’s NMS tools make it ideal for distributed and large-scale deployments.

Technical Specifications:

Models:

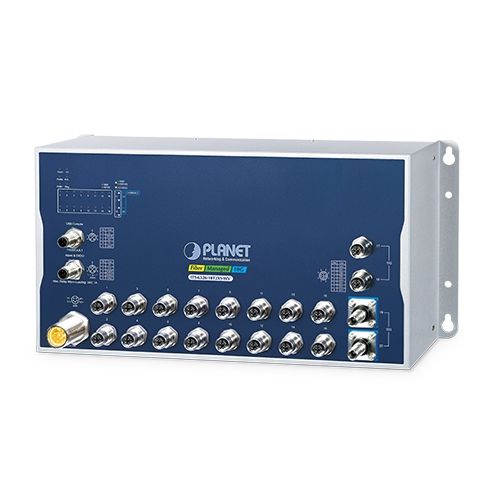

• ITS-6326-18T2XS-WV: 16x 10/100/1000BASE-T (M12), 2x 10GBASE-T (M12), 2x 10GBASE-X (Q-ODC)

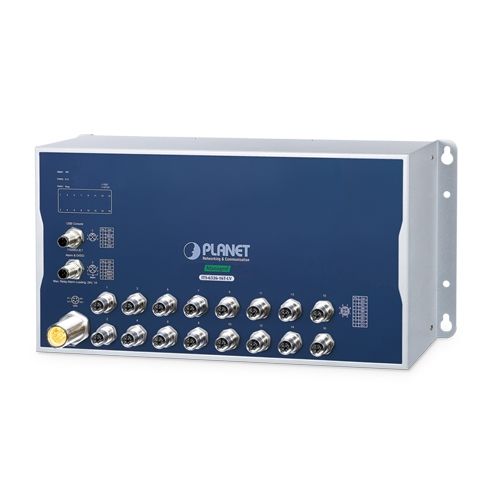

• ITS-6326-16T-WV: 16x 10/100/1000BASE-T (M12)
• ITS-6326-16T-LV: 16x 10/100/1000BASE-T (M12)

Enclosure:

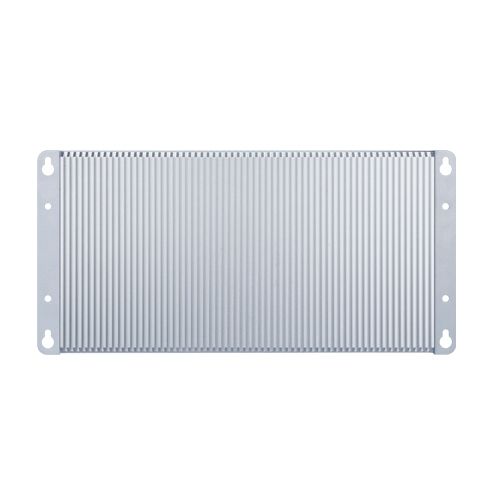

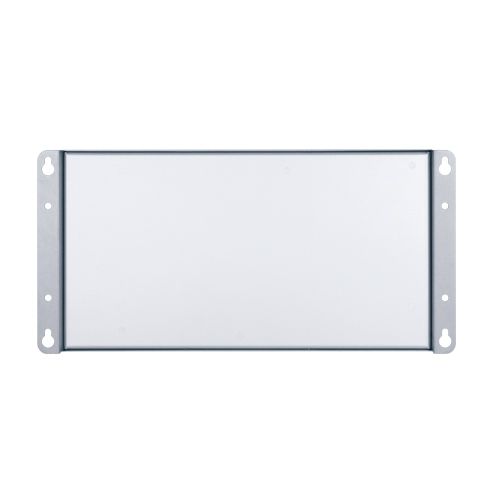

• IP40 aluminum, wall-mountable
• Dimensions: 400 × 74 × 195 mm
• Weight: 3250g to 4650g

Power Supply:

• Dual DC via M23 connector
• WV Models: 24–110 VDC (16.8–137.5 VDC)
• LV Model: 24–54 VDC (16.8–54 VDC)

Temperature Ranges:

• Operating: -40 to +70 °C
• Storage: -40 to +85 °C
• Humidity: 5–95% (non-condensing)

Switching Capacity:

• Fabric: up to 112 Gbps
• Throughput: up to 83.3 Mpps @ 64 Bytes
• 16K MAC table, 32Mbit shared buffer

Layer 3:

• IPv4/IPv6 static routing
• RIPv2, OSPFv2/v3 support
• VLAN-based routing

Layer 2:

• VLAN: up to 4K groups, Q-in-Q, Voice, MAC/Protocol-based
• Spanning Tree: STP, RSTP, MSTP
• LACP/Trunking: 10 groups, 20 ports each
• IGMPv1/v2/v3, MLDv1/v2 snooping
• LLDP, ERPS recovery <10ms

Security:

• Layer 2–4 ACLs, DHCP Snooping, ARP Inspection, IP Source Guard
• Port security, 802.1X authentication
• RADIUS, TACACS+, DoS prevention, Private VLAN

Management:

• Interfaces: Web, CLI, Telnet, SNMPv1/v2c/v3
• Secure: SSHv2, TLSv1.2
• PLANET NMS, Smart Discovery Utility
• Dual firmware, system logs, NTP, SMTP/Syslog alerts

Special Features:

• IEEE 1588v2 PTP (Transparent Clock)
• Modbus TCP, Digital I/O alarm system
• SFP-DDM diagnostics
• QoS with 8 queues per port

Certifications:

• EN50155, EN45545-2, IEC 61373
• CE, FCC, RoHS
• IEEE 802.3/802.1 compliant
