Planet Industrial L3 16-Port M12 Managed ITS-6326-16T-LV

The PLANET ITS-6326 Series is purpose-built for railway systems, vehicle installations, and heavy industrial environments. Certified to EN50155, EN45545-2, and IEC 61373, it provides reliable performance under conditions of extreme vibration, temperature, and electrical demands. Equipped with M12 X-coded connectors and Q-ODC fiber ports, it ensures secure, high-bandwidth data transmission in mission-critical networks.

The switches support dual-stack IPv4/IPv6 management, dynamic Layer 3 routing via OSPF and RIP, and robust cybersecurity including DHCP Snooping, ACLs, 802.1X authentication, and port-level access control. The ERPS protocol ensures sub-10ms recovery in case of link failure. For industrial applications, the series also supports Modbus TCP and IEEE 1588v2 PTP for precision timing in SCADA systems.

Available Models:

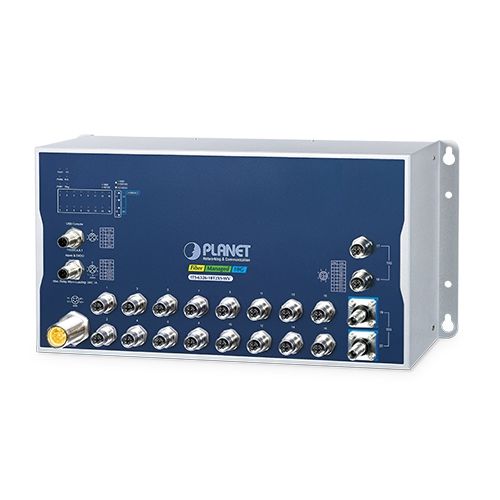

ITS-6326-18T2XS-WV:
– 16 x 10/100/1000BASE-T M12 X-coded ports
– 2 x 10GBASE-T M12 ports supporting 10G/5G/2.5G/1G/100Mbps
– 2 x 10GBASE-X Q-ODC fiber ports for single-mode transceivers

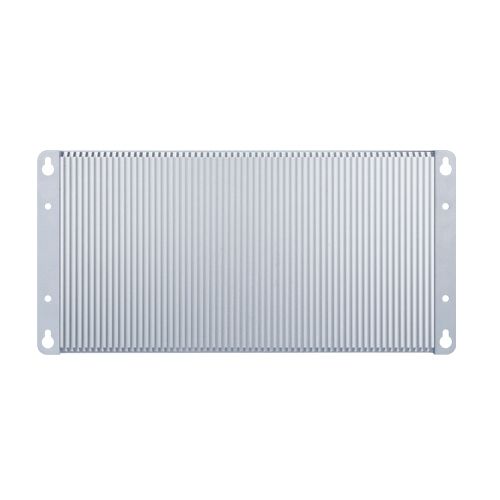

– Back panel with vertical cooling fins
– Input voltage: 24 to 110 VDC

ITS-6326-16T-WV:

– 16 x 10/100/1000BASE-T M12 X-coded ports
– No 10G or fiber ports

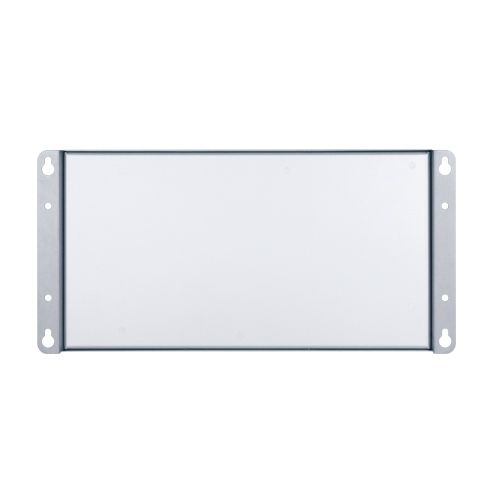

– Flat back panel without cooling fins
– Input voltage: 24 to 110 VDC

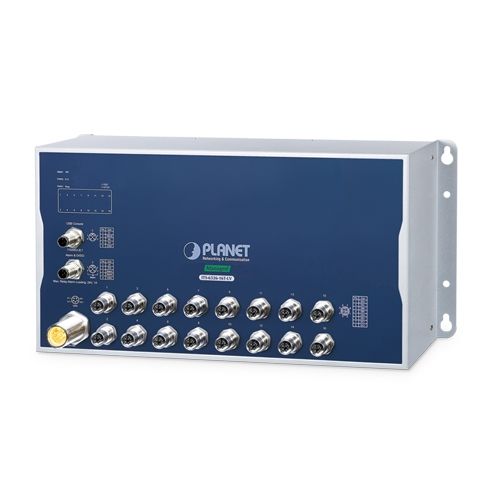

ITS-6326-16T-LV:

– 16 x 10/100/1000BASE-T M12 X-coded ports
– No 10G or fiber ports
– Flat back panel
– Input voltage: 24 to 54 VDC

Shared Features:

Interfaces:
– 1 x M12 A-coded USB-to-RS232 console interface
– 1 x M12 A-coded DI/DO and alarm port
– 1 x M23 A-coded 5-pin power connector

Construction and Installation:

– IP40-rated aluminum enclosure
– Wall-mountable design
– Operating temperature: -40 to 70 °C
– Dimensions: 400 x 74 x 195 mm
– Weight: 4650 g (18T2XS-WV), 4450 g (16T-WV), 3250 g (16T-LV)

Switch Performance:

– Switching fabric: 112 Gbps (18T2XS), 32 Gbps (16T models)
– Throughput: 83.3 Mpps (18T2XS), 23.8 Mpps (16T)
– 16K MAC address table
– Jumbo frames: 10K bytes

Layer 3 Functions:

– Static routing for IPv4/IPv6
– OSPFv2 and OSPFv3
– RIP v2
– VLAN-based routing (up to 128 interfaces)

Layer 2 Features:

– IEEE 802.1Q VLAN, Q-in-Q, Private VLAN
– Protocol- and MAC-based VLANs
– Spanning Tree Protocol (STP, RSTP, MSTP), BPDU Guard
– Link aggregation with LACP and static trunks (up to 10 groups)
– IGMP and MLD snooping v1–v3, Multicast VLAN Registration
– ERPS with sub-10ms recovery
– LLDP, loop protection

Security Features:

– ACLs for IP and MAC filtering (up to 512 entries)
– DHCP Snooping
– IP Source Guard
– Dynamic ARP Inspection
– IEEE 802.1X port and MAC authentication
– RADIUS and TACACS+ support
– DoS protection

Industrial Protocols:

– Modbus TCP
– IEEE 1588v2 PTP (peer-to-peer and end-to-end transparent clock)

Management and Diagnostics:

– Web interface, Telnet, console (CLI)
– SNMP v1, v2c, v3
– Secure access via SSHv2 and TLS 1.2
– Compatible with PLANET NMS, Smart Discovery, CloudViewerPro
– ONVIF device discovery and PoE reboot
– SFP-DDM diagnostics
– Digital inputs/outputs for external alarms
– Syslog, SNMP traps, SMTP alerts

Power Consumption:

– ITS-6326-18T2XS-WV: up to 43.57 watts
– ITS-6326-16T-WV and 16T-LV: up to 29.34 watts

Input Voltage Range:

– WV models: 24 to 110 VDC (operating range up to 137.5 VDC)
– LV model: 24 to 54 VDC (operating up to 54 VDC)

Certifications:

– Railway: EN50155, EN45545-2, IEC 61373
– EMC: FCC Part 15 Class A, CE EN55032/EN55035
– Mechanical: IEC60068-2-6/27/32 (vibration, shock, drop)
