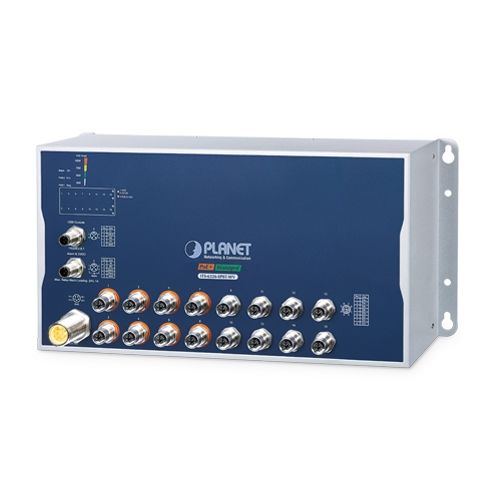

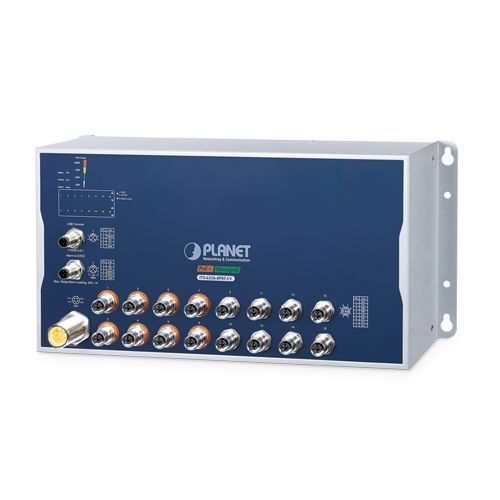

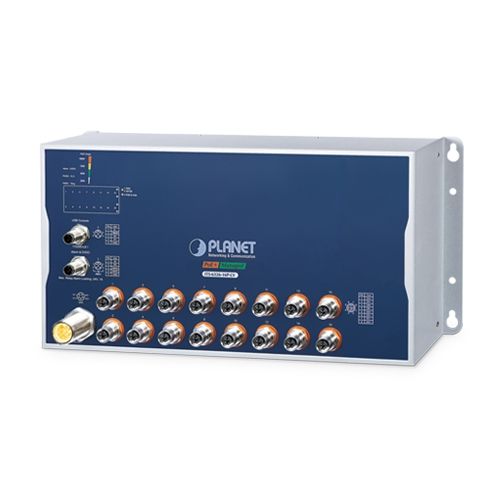

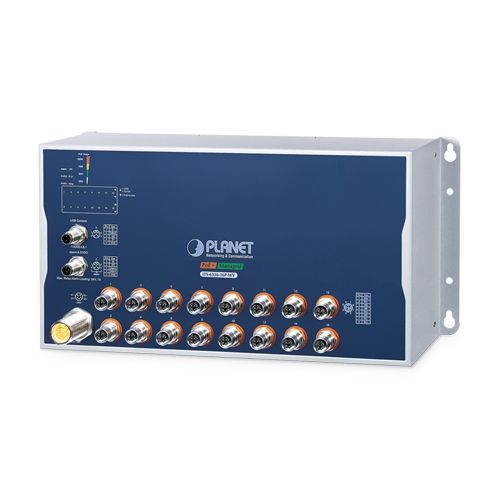

Planet Industrial L3 16-Port M12 Managed ITS-6326-16P2TB-WV

PLANET ITS-6326 Industrial Managed Switch Series – Advanced Layer 3 PoE+ Switches for Railway and Industrial Networks

The PLANET ITS-6326 series is a rugged industrial-grade Layer 3 switch family with Power-over-Ethernet Plus (PoE+), engineered for demanding rail and industrial environments. Certified to meet EN50155, EN45545-2, and IEC 61373 standards, it supports stable operation in environments with severe shock, vibration, and extreme temperatures (-40 to 70 °C). The design ensures secure M12 and Q-ODC connections and offers powerful Ethernet switching and routing performance.

Models in the series provide up to 16 PoE+ ports, 10G M12 Ethernet interfaces, Q-ODC fiber slots, and optional bypass relay for network resilience. Featuring dynamic routing (OSPF/RIP), advanced VLAN/QoS, cybersecurity protections, PoE monitoring, ONVIF camera support, and comprehensive management capabilities via Web, CLI, SNMP or CloudViewerPro – these switches are perfect for onboard, trackside and industrial automation systems.

Available Models and Port Overview:

| Model Name | PoE M12 Ports | Non-PoE M12 Ports | 10GBASE-T M12 | Q-ODC Fiber Ports | Bypass Relay |
|--------------------------------|----------------|--------------------|----------------|--------------------|---------------|
| ITS-6326-16P2TB2XS-WV | 16 | – | 2 | 2 | Yes |
| ITS-6326-16P2T2XS-WV | 16 | – | 2 | 2 | No |
| ITS-6326-8P10T2XS-WV | 8 | 8 | 2 | 2 | No |

Technical Overview:

Case & Installation:

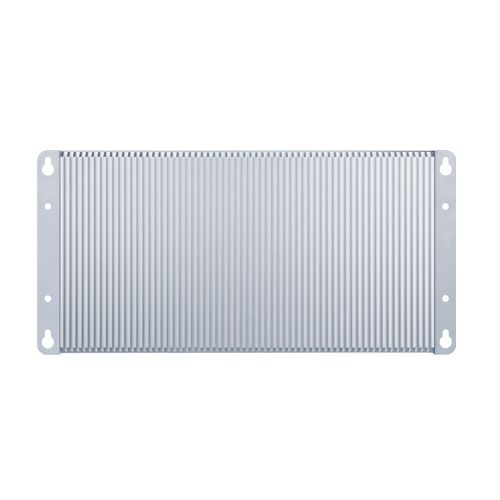

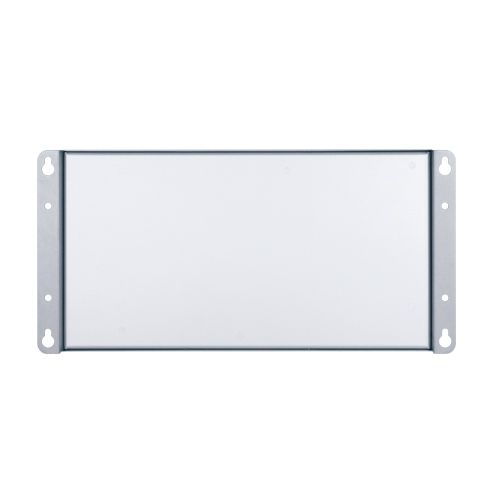

• IP40 aluminum housing
• Wall-mount
• Size: 400 x 74 x 195 mm
• Weight: 4.7 kg
• Operating temp: -40 to +70 °C
• Storage temp: -40 to +85 °C
• Dual DC input (24–110 VDC, operational up to 137.5 VDC)

PoE Capabilities:

• IEEE 802.3at PoE+ (up to 36W per port)
• Budget: up to 100W
• Features: Alive Check, Scheduling, Recycling, Extend Mode (up to 250 m)
• Active PD detection, individual PoE management

Switching & Routing:

• Switch fabric: 112 Gbps
• Throughput: 83.3 Mpps
• Jumbo frame: 10K Bytes
• MAC table: 16K entries
• Up to 4K VLANs, 128 routing entries

Layer 3 Routing:

• IPv4/IPv6 static & dynamic (RIP, OSPFv2/v3)
• 128 static routes, VLAN routing interface

Layer 2 Features:

• VLAN: 802.1Q, Q-in-Q, MAC/Protocol/Voice VLAN
• MSTP, RSTP, STP, BPDU Guard
• Link aggregation (LACP, static, up to 20 ports)
• IGMP/MLD snooping v1–v3, MVR
• Loop protection, LLDP, ERPS with <10ms recovery

Security & Access Control:

• IP-/MAC-based ACLs, Port Security
• DHCP Snooping, ARP Inspection, IP Source Guard
• 802.1X, MAC authentication
• RADIUS, TACACS+ integration

Industrial Protocols & Management:

• Modbus TCP/IP
• IEEE 1588v2 PTP (transparent clock)
• Alarm via DI/DO, SFP-DDM, SNMP trap alerts
• Access via Web, CLI, Telnet, SSHv2, SNMPv3, TLS
• Supports PLANET NMS, Smart Discovery, CloudViewerPro
• ONVIF device discovery and PoE camera control with GUI and floor maps

Certifications:

• Railway: EN 50155, EN 45545-2, IEC 61373
• EMC: FCC Class A, CE EN55032/EN61000-6-x
• Environmental testing per IEC 60068-2 standards

Package Includes:

• PLANET ITS-6326 switch (based on model)
• Mounting kit and user manual
• M12/M23 connectors for power, data, and alarms
