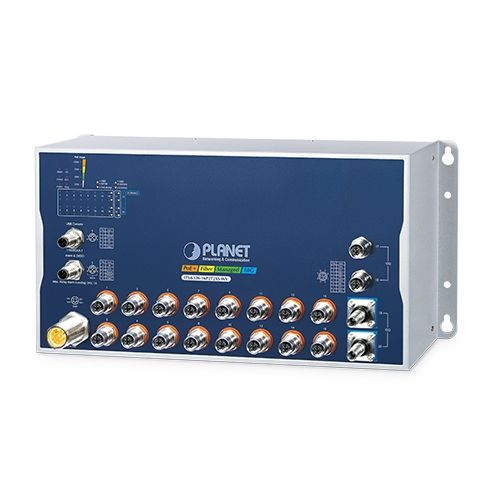

Planet Industrial L3 16-Port M12 Manag. ITS-6326-16P2T2XS-WV

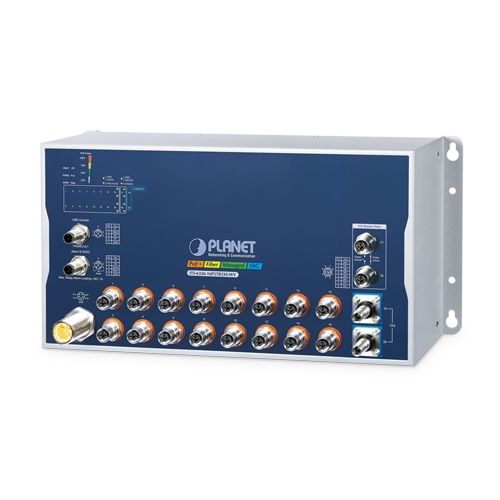

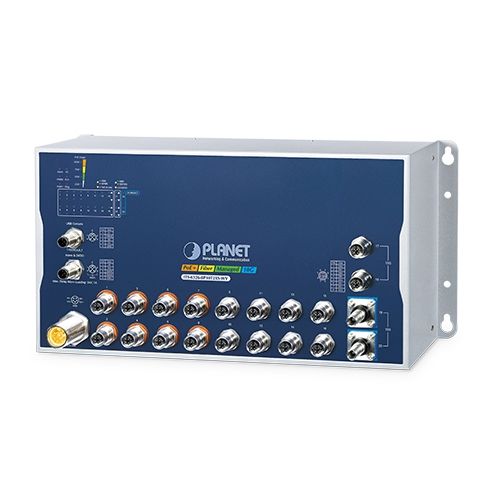

PLANET ITS-6326 Industrial Managed Switch Series – Engineered for Railway and Harsh Industrial Environments

The ITS-6326 series by PLANET is a powerful Layer 3 managed switch with PoE+ support, specifically built for challenging industrial and transportation applications. Certified to meet EN50155, EN45545-2, and IEC 61373 railway standards, it ensures dependable operation even under extreme conditions. Its rugged construction, extended temperature tolerance (-40 to 70 °C), and secure M12/Q-ODC connectors make it ideal for mission-critical deployments.

With IPv4/IPv6 dual-stack support, dynamic routing (OSPFv2, RIP), and robust Layer 2 switching, this switch series excels in bandwidth-demanding networks. Enhanced features such as ERPS ring recovery, advanced PoE control, intelligent PD Alive Check, and comprehensive security functionalities make it a top-tier solution for secure and reliable connectivity. Optional bypass relay models ensure uninterrupted data flow during power failures.

Technical Specifications:

Available Models:

• ITS-6326-16P2TB2XS-WV
• ITS-6326-16P2T2XS-WV
• ITS-6326-8P10T2XS-WV

Physical Ports (depending on model):

• 16/8 x 10/100/1000BASE-T M12 (X-coded) with IEEE 802.3at PoE+
• 2 x 10GBASE-T M12 (X-coded), some with bypass relay
• 2 x 10GBASE-X Q-ODC fiber ports
• USB-to-RS232 console via M12 A-coded connector
• DI/DO and alarm via M12 A-coded
• Dual DC input via M23 A-coded (24–110 VDC)

PoE Performance:

• IEEE 802.3at PoE+ with max. 36 watts per port
• Total PoE budget: up to 100 watts
• Features: Alive Check, scheduling, extend mode (up to 250m), recycling

Operating Temperature:

• Operation: -40 °C to 70 °C
• Storage: -40 °C to 85 °C

Mechanical & Mounting:

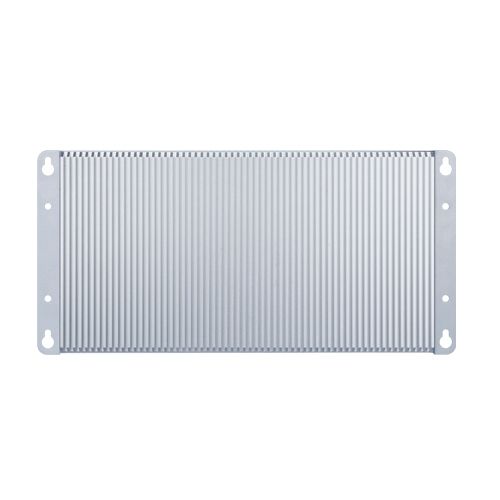

• IP40 aluminum housing
• Wall-mount
• Certified for shock, vibration, and free-fall

Layer 2/3 Features:

• VLAN, MSTP, STP, RSTP
• Link aggregation (LACP/Static)
• IGMP/MLD snooping & querier
• ACL, 802.1X, DHCP snooping, DAI, IP Source Guard
• IPv4/IPv6 static & dynamic routing (OSPF, RIP)

Security Functions:

• ACLs (IP-/MAC-based)
• MAC security, port security, ARP inspection
• RADIUS/TACACS+ authentication

Management & Protocols:

• Web interface, Telnet, console, SNMPv3, SSHv2, TLSv1.2
• PLANET Smart Discovery, NMSViewerPro, CloudViewerPro
• ONVIF support with device discovery and PoE control
• Protocols: Modbus TCP, IEEE 1588v2 PTP, LLDP

Switching & Routing Performance:

• Switch fabric: 112 Gbps
• Throughput: 83.3 Mpps
• Jumbo frames: 10K Bytes
• MAC table: 16K entries
• 4K VLANs, 128 routing entries

Alarm & Diagnostics:

• Digital alarm system (DI/DO)
• Email/SNMP trap
• SFP-DDM, cable diagnostics, event logging

Standards & Certifications:

• Railway: EN 50155, EN 45545-2, IEC 61373
• EMC: FCC Part 15 Class A, CE EN55032/EN55035
• Environmental: -40 to +70 °C, 5–95% RH (non-condensing)

Dimensions & Weight:

• 400 x 74 x 195 mm
• 4.7 kg

Package Contents:

• ITS-6326 unit per selected model
• Installation guide
• Mounting hardware
• Connectors (M12/M23, depending on model)
