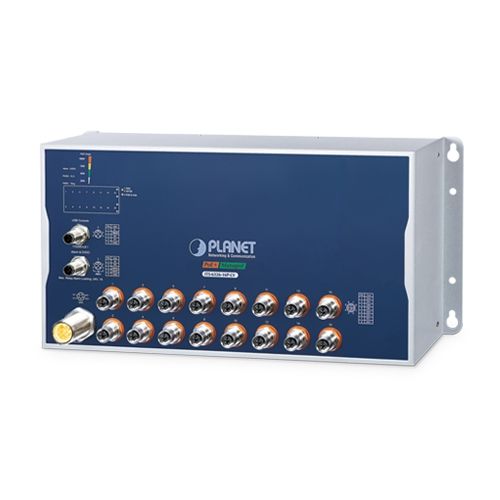

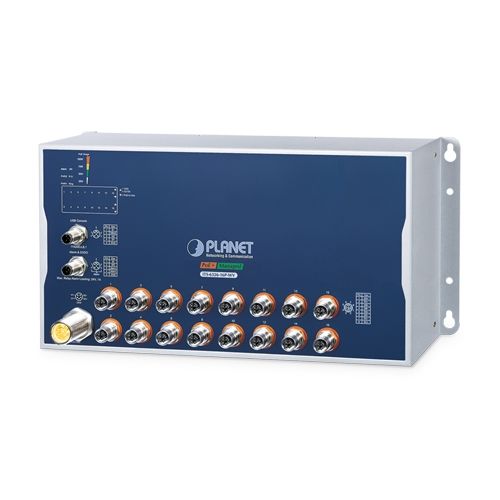

PLANET ITS-6326-16P-WV
Industrial L3 16-Port M12 Managed PoE
|
2.111,23 EUR |
|
|
( 2.512,36 EUR incl. VAT ) ≈ £1,815.66 | ≈ $2,400.47 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 9 workdaysinfo_outline | |
| Lieske Part No.: | 2184396 |
|---|---|
| Mfg Part No: | ITS-6326-16P-WV |
| UPC/EAN: | 4711605288552 |
| Weight: | 0 kg |
Product information for PLANET ITS-6326-16P-WV:
Equipped with dual-stack IPv6/IPv4 routing, OSPFv2, Modbus TCP, IEEE 1588v2 PTP support, ONVIF device discovery, extended PoE control and automation functions, the ITS-6326 series is ideal for industrial networks, traffic systems, smart surveillance, and factory automation.
Model Options:

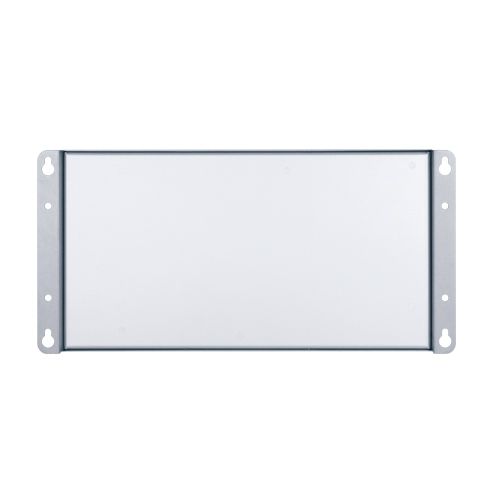

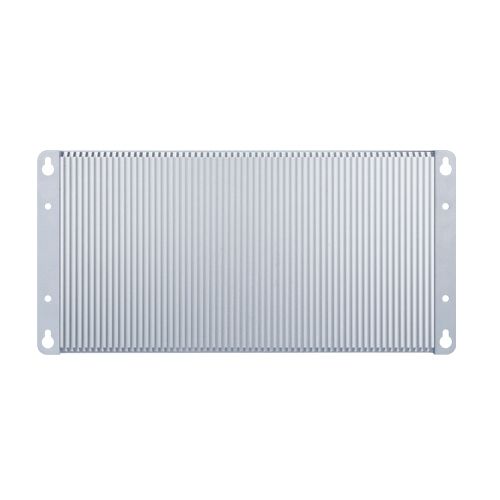

- ITS-6326-16P-WV: 16 PoE+, 24–110V DC, heat-dissipating back panel

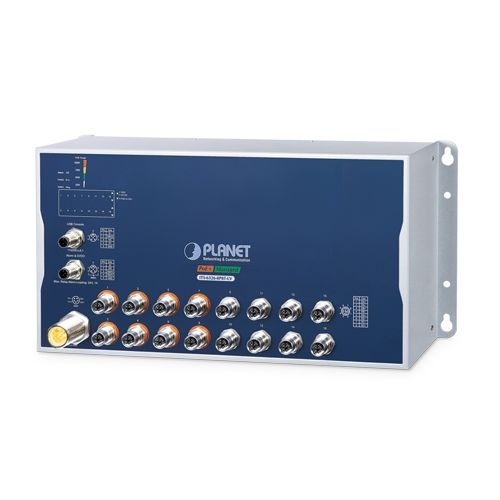

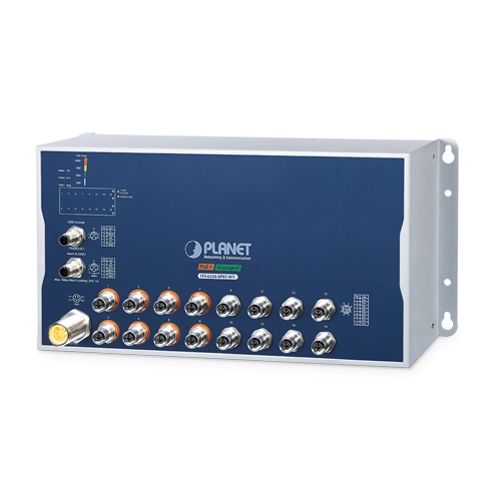

- ITS-6326-8P8T-WV: 8 PoE+ + 8 non-PoE, 24–110V DC
- ITS-6326-16P-LV: 16 PoE+, 24–54V DC
- ITS-6326-8P8T-LV: 8 PoE+ + 8 non-PoE, 24–54V DC
Key Specifications:
Interfaces:
- 16 x 10/100/1000BASE-T (M12, 8-pin X-coded)
- RS232 Console via M12 port
- 1 x M12 for DI/DO + Alarm Relay
- 1 x M23 for dual DC power input (16.8~137.5V DC or 16.8~54V DC)
PoE:
- IEEE 802.3at compliant, 36W per port
- Total PoE Budget: 100W
- Features: Alive Check, Schedule, Recycling, Load Control, Classification
Routing & Switching:
- IPv4/IPv6 static & dynamic routing (RIP, OSPFv2/v3)
- Switching capacity: 32Gbps, 16K MAC entries
- Up to 128 routing entries
- Jumbo frame: 10K, IEEE 1588v2 PTP support
Layer 2 Features:
- VLAN: 802.1Q, Q-in-Q, Private VLAN, MAC/Protocol/Voice VLAN
- Spanning Tree: STP, RSTP, MSTP, BPDU Guard
- IGMP v1/v2/v3 & MLD v1/v2 snooping
- ERPS (G.8032): <10ms recovery time
- Link Aggregation: up to 10 groups, 20 ports/group
- LLDP, Loop Protection, Port Mirroring, QoS with 8 queues
Security:
- ACL (L2 to L4): MAC, IP, protocol, VLAN, TCP/UDP filtering
- Port Security, DHCP Snooping, DAI, IP Source Guard, DoS prevention
- IEEE 802.1X (Port & MAC-based), RADIUS, TACACS+ authentication
Management:
- Web GUI, CLI, SNMPv1/v2c/v3, SSHv2, TLS 1.2
- Dual firmware, DHCP Server/Relay, SNMP Trap, Syslog, SMTP
- PLANET NMS, Smart Discovery, NMSViewerPro, CloudViewerPro
- ONVIF device detection, floor map, live view, PoE reboot from GUI
Mechanical & Environment:
- IP40 aluminum housing, wall-mountable
- Dimensions: 400 x 74 x 195 mm
- Weight: 3.3–4.5 kg depending on model
- Operating Temp: -40 to 70°C, Humidity: 5–95%
- ESD & Surge: 6KV, Certified: EN50155, EN45545-2
