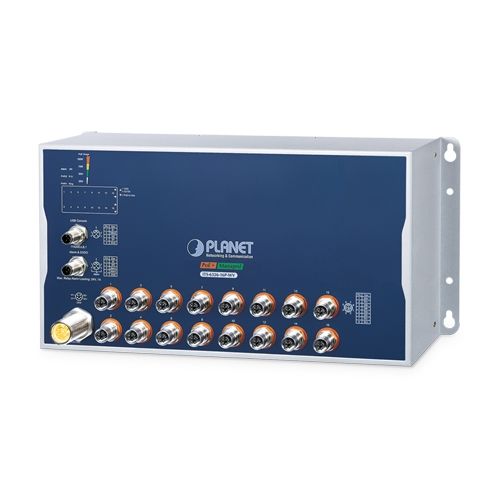

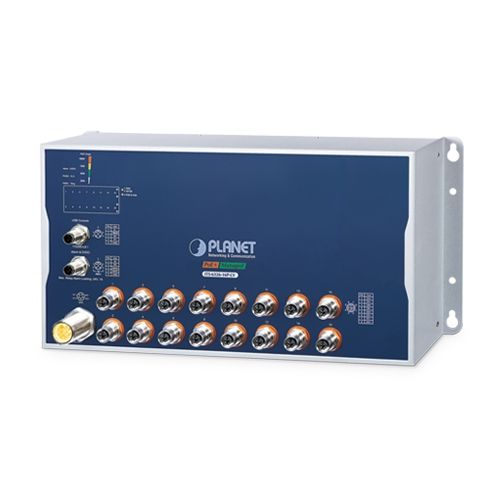

PLANET ITS-6326-16P-LV
Industrial L3 16-Port M12 Managed PoE
|
1.529,98 EUR |
|
|
( 1.820,68 EUR incl. VAT ) ≈ £1,315.78 | ≈ $1,739.59 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 9 workdaysinfo_outline | |
| Lieske Part No.: | 2184393 |
|---|---|
| Mfg Part No: | ITS-6326-16P-LV |
| UPC/EAN: | 4711605288507 |
| Weight: | 0 kg |
Product information for PLANET ITS-6326-16P-LV:
All models offer robust L2/L3 network features, including OSPFv2 dynamic routing, IPv6/IPv4 dual-stack, Modbus TCP, IEEE 1588v2 PTP, rich VLAN/QoS/security, and comprehensive management capabilities.
Available Models:
- ITS-6326-16P-WV: 16 PoE+ ports, 24–110V DC, heat-dissipation fins

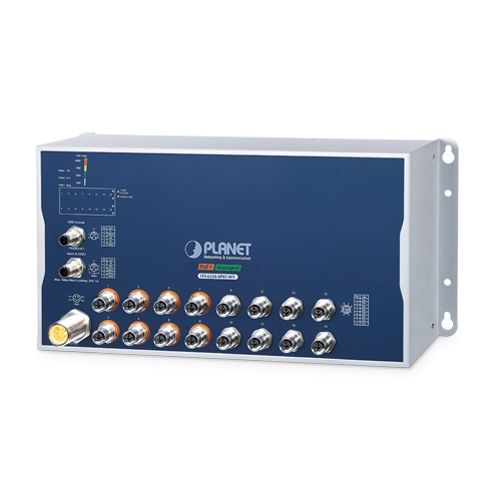

- ITS-6326-8P8T-WV: 8 PoE+ + 8 non-PoE ports, 24–110V DC, flat panel
- ITS-6326-16P-LV: 16 PoE+ ports, 24–54V DC input

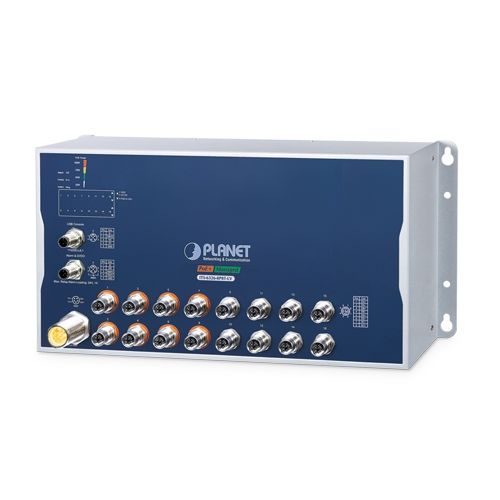

- ITS-6326-8P8T-LV: 8 PoE+ + 8 non-PoE ports, 24–54V DC input
Key Features:
PoE+ Capabilities:
– IEEE 802.3at compliant, up to 36W per port
– Power budget: up to 100W depending on input
– Extend mode: 250m PoE distance at 10Mbps
– Features: PD Alive Check, PoE Scheduling, Auto Recycling, Temp Threshold
Layer 3 Routing:
– Static/Dynamic IPv4 & IPv6: RIP, OSPFv2/v3– Up to 128 VLAN interfaces
– Hardware routing table up to 4K entries
Layer 2 Switching:
– VLANs (802.1Q, Q-in-Q, Private VLAN)– STP/RSTP/MSTP, ERPS (<10ms Recovery)
– IGMP/MLD Snooping, Link Aggregation (up to 10 groups)
– Loop Protection, Port Mirroring, LLDP
Security:
– SSHv2, TLS 1.2, SNMPv3, RADIUS, TACACS+– Port security, DHCP Snooping, DAI, IP Source Guard
– IPv4/IPv6/MAC-based ACLs (up to 512 entries)
Management:
– Web GUI, CLI via Telnet/Console, SNMP v1/v2c/v3– Firmware dual images, DHCP/NTP/TFTP support
– PLANET UNI-NMS, NMSViewerPro, CloudViewerPro integration
– ONVIF device scan, layout planning, and live monitoring via GUI
Digital I/O:
– 1 Digital Input (DI)
– 1 Digital Output (DO)
– 1 Relay output alarm (1A @ 24V DC)
Modbus TCP & IEEE 1588v2 Support:
– SCADA/HMI system integration
– PTP transparent clock mode for timing accuracy
Mechanical & Environmental:
– IP40 aluminum housing, wall-mount
– Dimensions: 400 x 74 x 195 mm
– Weight: up to 4.5 kg
– Operating Temp: -40 to 70°C
– Dual 12–110V DC input with redundancy
– ESD & Surge Protection: 6KV
– Compliance: EN50155, EN45545-2, IEC 61373, FCC, CE
