PLANET Industrial IP67 Rated 8-Port 10/100Mbps M12 Ethernet

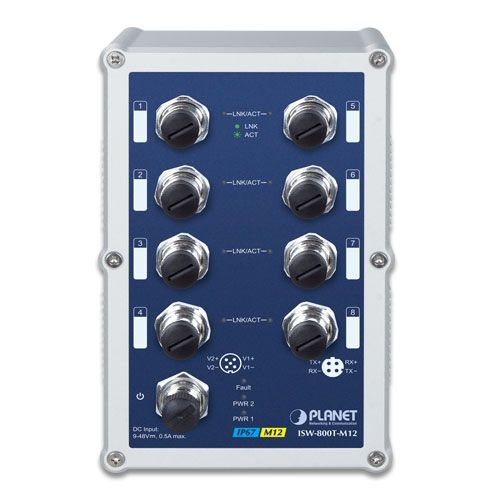

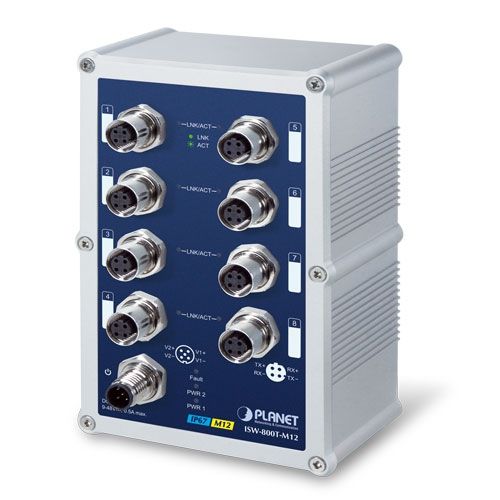

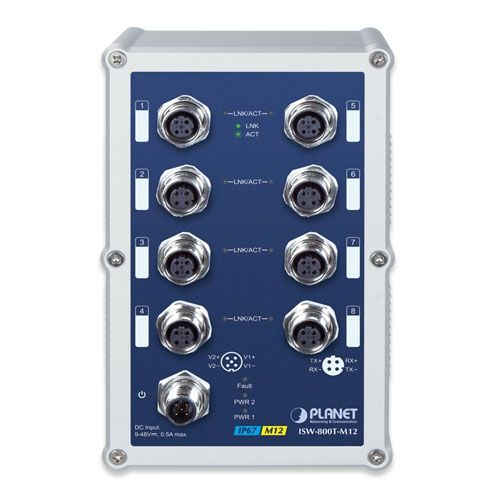

The PLANET ISW-800T-M12 is an industrial-grade 8-Port Fast Ethernet Switch with IP67 protection, specially engineered for deployment in environments with heavy vibration, water, dust, and extreme temperature variations. Featuring rugged M12 connectors, an IP67-rated aluminum housing, and an extended temperature tolerance from -40 to 75°C, it is ideal for railway, transportation, tunnel monitoring, and harsh industrial automation applications.

Key Features:

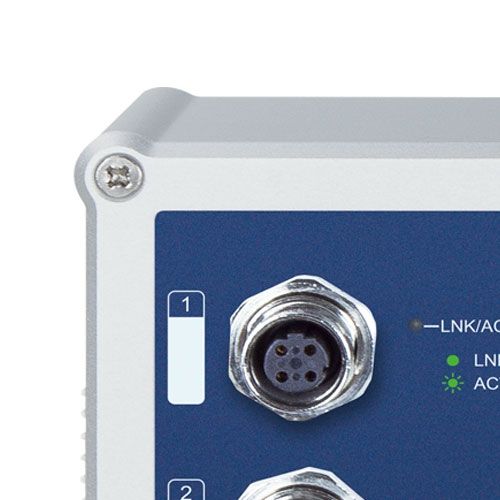

– 8 x 10/100Mbps M12 Ethernet ports (4-pin, D-coded, female)
– IP67 waterproof and dustproof aluminum metal case
– Shock- and vibration-resistant design
– Wide operating temperature range: -40 to 75 °C
– Redundant 9–48V DC power input with reverse polarity protection
– 1.6 Gbps high-performance switching fabric
– Store-and-Forward architecture with 2K MAC address table
– IEEE 802.3 / 802.3u / 802.3x compliance
– 6KV ESD and 6KV EFT surge protection

Technical Specifications:

Physical Ports:
– 8 x 10/100Base-TX via M12 connectors (4-pin, D-coded, female)
– 1 x 5-pin A-coded M12 power connector (male)

Power:

– Input: 9–48V DC (redundant)
– Max. Power Consumption: 4 W / 13 BTU
– Fault LED notification and reverse polarity protection

Mechanical:

– Dimensions: 103 x 53 x 163 mm
– Weight: 976 g
– IP67-rated aluminum enclosure
– DIN-rail and wall-mount support

Switch Performance:

– Switch Fabric: 1.6 Gbps
– Throughput: 1.19 Mpps @ 64 bytes
– MAC Address Table: 2K entries
– Maximum Transmit Unit: 1536 bytes
– Switching Method: Store-and-Forward

ESD & Surge Protection:
– ESD: 6KV
– EFT: 6KV
– Enclosure: IP67 certified (dust/waterproof)

LED Indicators:

– Power 1, Power 2, Fault (Green)
– Port 1–8: LNK/ACT (Green)

Standard Accessories:

– 1 x M12 4-pin D-coded male to RJ-45 cable (1.2 m)
– 1 x M12 5-pin A-coded female power cable (1.2 m)
– 1 x Wall-mount kit
– 1 x DIN-rail kit (pre-attached)
– 1 x User’s Manual

Environment:

– Operating Temperature: -40 ~ 75 °C
– Storage Temperature: -40 ~ 75 °C
– Humidity: 5–95% (non-condensing)
