PLANET Industrial 8-Port 10/100TX Compact Ethernet Switch

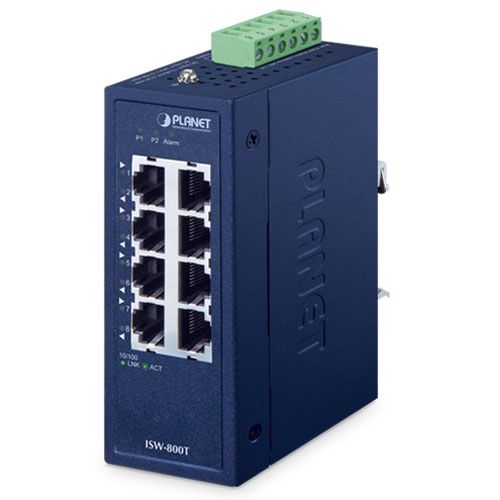

The PLANET ISW-800T is a compact, industrial-grade 8-Port Fast Ethernet Switch designed for harsh environments. Featuring an IP30-rated metal case, wide operating temperature (-40 to 75 °C), and dual power input support (12–48V DC or 24V AC), the ISW-800T is ideal for IIoT and industrial automation networks. It also supports PROFINET traffic pass-through with QoS, making it highly suitable for critical factory floor communications.

Features:

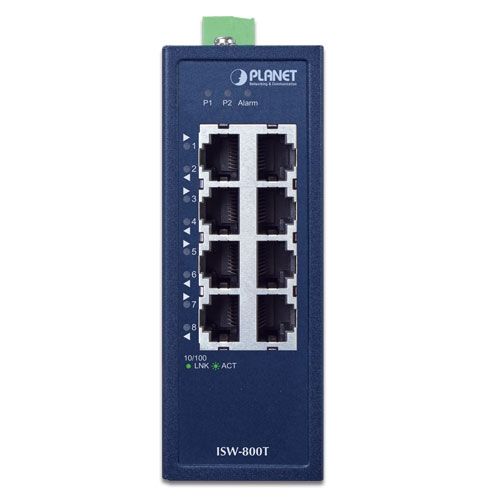

– 8 x 10/100BASE-TX RJ45 ports with Auto-MDI/MDI-X
– PROFINET traffic prioritization with QoS
– Energy-efficient technology: IEEE 802.3az (EEE), auto power scaling based on cable status
– Wide operating temperature: -40 to 75 °C
– Redundant power input: 12–48V DC or 24V AC with reverse polarity protection
– Compact IP30 metal case for DIN-rail or wall mounting
– Industrial-grade protection: ESD (6KV), surge (4KV)
– Store-and-Forward architecture with 1K MAC address table

Technical Specifications:

Physical Ports:
– 8 x 10/100BASE-TX RJ45 with auto-negotiation and Auto-MDI/MDI-X

Power:

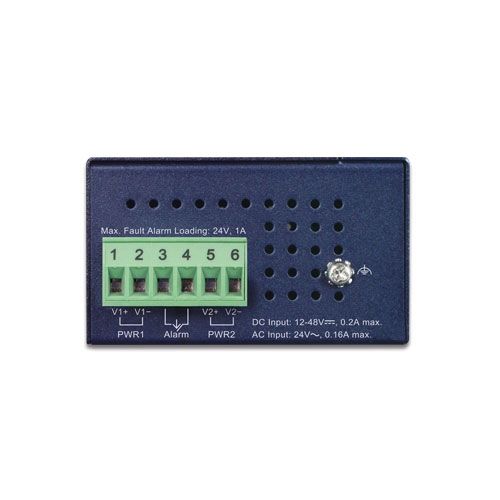

– Input: 12~48V DC (redundant), 24V AC
– Max. Consumption: 2.5W / 8.53 BTU
– Power Alarm: 1A @ 24V DC relay output for failure detection

Mechanical:

– Enclosure: IP30-rated metal
– Dimensions: 41 x 70 x 115 mm
– Weight: 300 g
– Installation: DIN-rail or wall-mountable

Switch Performance:

– Switch Fabric: 1.6 Gbps
– Throughput: 1.19 Mpps @ 64 bytes
– MAC Table: 1K entries
– Buffer: 448 Kbits
– Flow Control: IEEE 802.3x (full duplex), Backpressure (half duplex)

Certifications & Protection:
– ESD Protection: ±6KV (contact), ±8KV (air)
– EFT Protection: ±4KV
– Stability Testing: IEC60068-2-32/27/6 (drop/shock/vibration)
– Compliance: IEEE 802.3, 802.3u, 802.3x, 802.3az, 802.1p
– PROFINET Traffic Pass-through with QoS
– Regulatory: FCC Part 15 Class A, CE, UL

Environmental:

– Operating Temp: -40 to 75 °C
– Storage Temp: -40 to 75 °C
– Humidity: 5–95% (non-condensing)
