PLANET 4+2 100FX Port Multi-mode Industrial Ethernet Switch

The PLANET ISW-621T and ISW-621TS15 are compact industrial Ethernet switches designed for extreme temperature environments from -40 to 75 °C. These rugged switches feature four 10/100Base-TX ports and two 100Base-FX fiber ports – supporting either multimode (ISW-621T, up to 2 km) or single-mode (ISW-621TS15, up to 20 km) – for reliable connectivity in transportation, manufacturing, security, and surveillance systems.

Key Features:

– IP30-rated metal housing for DIN-rail or wall mounting
– 4 x 10/100Base-TX RJ45 with auto-negotiation and Auto-MDI/MDI-X
– 2 x 100Base-FX SC fiber interfaces

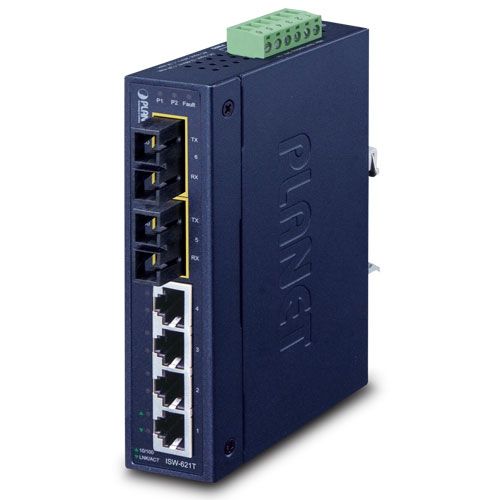

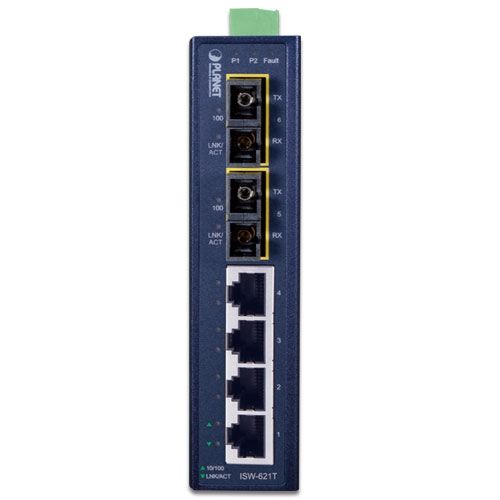

– ISW-621T: Multimode, 2 km

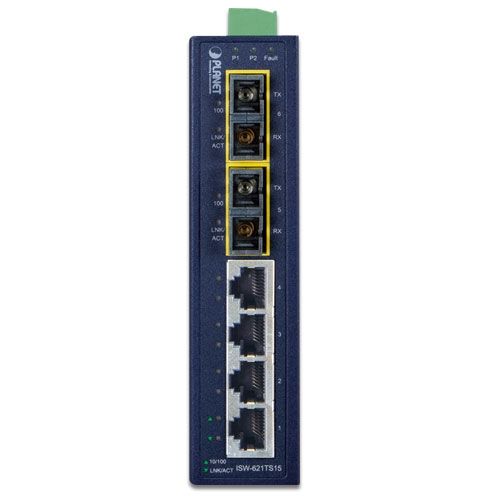

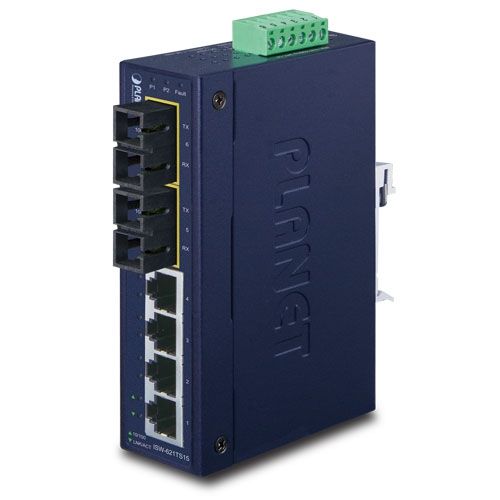

– ISW-621TS15: Singlemode, 20 km
– Store-and-Forward switching architecture with 1.2 Gbps backplane
– 2K MAC address table and 1 Mbit buffer
– IEEE 802.3x flow control, broadcast storm protection, CRC error filtering

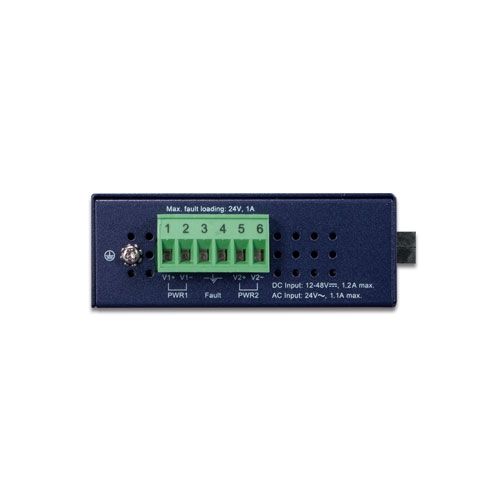

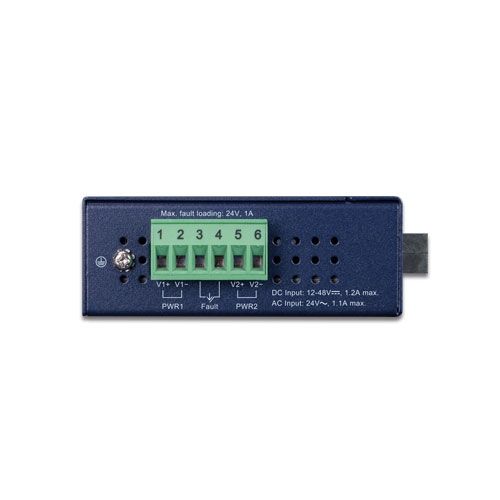

– Redundant 12~48V DC power input with reverse polarity protection
– Relay output for power failure alerts
– Wide operating temperature: -40 to 75 °C

Technical Details:

Interfaces:
– 4 x 10/100Base-TX RJ45
– 2 x 100Base-FX SC ports (ISW-621T: Multimode, ISW-621TS15: Singlemode)

Fiber Optics:

– ISW-621T: 1310 nm, 2 km, launch: -14 to -20 dBm, sensitivity: -32 dBm
– ISW-621TS15: 1310 nm, 20 km, launch: 0 to -20 dBm, sensitivity: -32 dBm

Power:

– Input: 12~48V DC, redundant, polarity protected
– Max. Consumption: 16 W / 54 BTU
– Alarm Relay: 1A @ 24V DC

Mechanical:

– Dimensions: 135 x 87.8 x 32 mm
– Weight: 442 g
– Mounting: DIN-rail or wall-mount

Switching Specs:

– Switching Fabric: 1.2 Gbps
– Throughput: 0.89 Mpps @ 64 bytes
– MAC Table: 2K entries
– Buffer: 1 Mbit

Standards & Compliance:
– IEEE 802.3, 802.3u, 802.3x
– ESD Protection: 6KV, EFT Protection: 6KV
– Stability Tests: IEC60068-2-32/27/6 (Drop, Shock, Vibration)
– Certifications: FCC Part 15 Class A, CE
– Environment: -40~75 °C, Humidity 5–90% (non-condensing)
