PLANET 4+2 100FX Port Single mode Industrial Ethernet

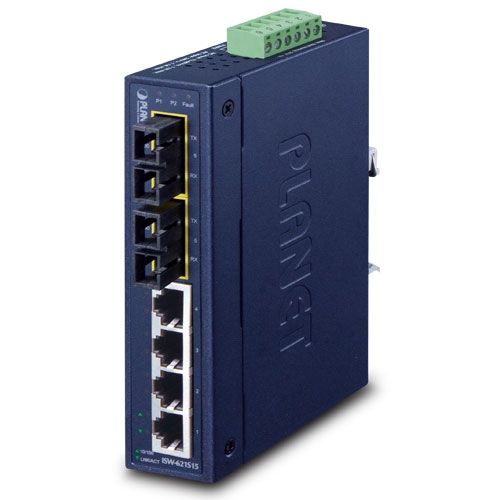

The PLANET ISW-621 and ISW-621S15 are robust, industrial-grade Ethernet switches designed for reliable operation in harsh environments. Both models feature four 10/100Base-TX copper ports and two 100Base-FX SC fiber ports. The ISW-621 supports multimode fiber for up to 2 km, while the ISW-621S15 supports single-mode fiber for up to 15 km. With their slim IP30 metal housings and extended voltage and temperature ranges, they are ideal for space-constrained applications in industrial automation, surveillance, and transportation.

Features:

– Slim metal housing with DIN-rail or wall-mount installation

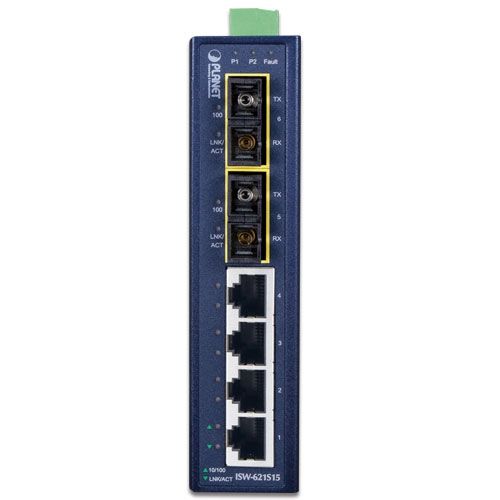

– 4 x 10/100Base-TX RJ45 ports with Auto-MDI/MDI-X
– 2 x 100Base-FX SC fiber ports:
– ISW-621: Multimode, up to 2 km, 1310 nm
– ISW-621S15: Singlemode, up to 15 km, 1310 nm
– Store-and-forward architecture, 1.2 Gbps switching fabric
– 2K MAC address table, 1 Mbit frame buffer
– IEEE 802.3x flow control and half-duplex backpressure

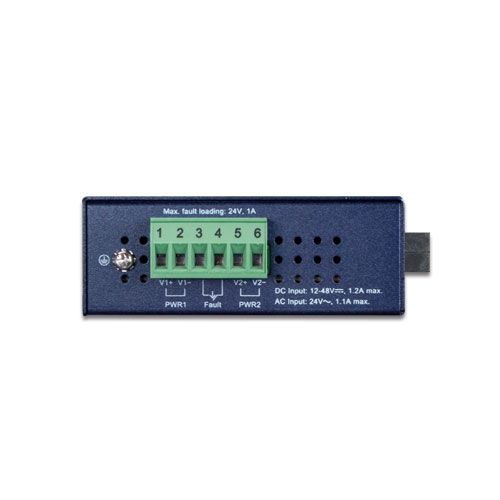

– Redundant 12~48V DC power input with reverse polarity protection
– Relay output for power failure
– Operating temperature: -10 to 60 °C

Technical Data:

Network Interfaces:
– 4 x 10/100Base-TX RJ45 ports, Auto-Negotiation, Auto-MDI/MDI-X
– 2 x 100Base-FX SC ports (Multimode or Singlemode per model)

Optical Specs:

– ISW-621: 50/125 µm, 2 km range, launch power: -14 to -19 dBm, sensitivity: -34.5 dBm
– ISW-621S15: 9/125 µm, 15 km range, launch power: -7 to -20 dBm, sensitivity: -28 dBm

Power:

– Input: 12–48 V DC, redundant, polarity protected
– Consumption: Max. 11.6 W / 40 BTU
– Alarm relay: 1A @ 24V DC on power failure

Mechanical:

– Dimensions: 135 x 87.8 x 32 mm
– Weight: 442 g
– Enclosure: IP30-rated metal
– Mounting: DIN-rail / wall-mount

Switching Specifications:

– Switching Fabric: 1.2 Gbps
– Throughput: 0.89 Mpps @ 64 bytes
– Address Table: 2K MAC entries
– Buffer: 1 Mbit

Standards & Compliance:
– IEEE 802.3, 802.3u, 802.3x
– EMI protection: ESD 6KV, EFT 6KV
– Stability: IEC 60068-2-32/27/6 (Free fall, Shock, Vibration)
– Certified: FCC Class A, CE, UL, cUL
– Operating Temperature: -10~60 °C
– Humidity: 5~90% (non-condensing)
