PLANET 4+2 100FX Port Multi-mode Industrial Ethernet Switch

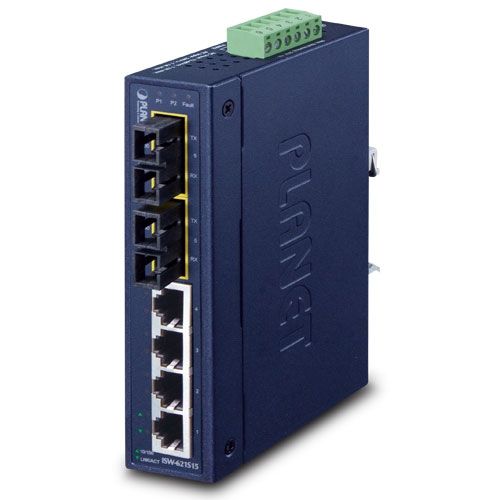

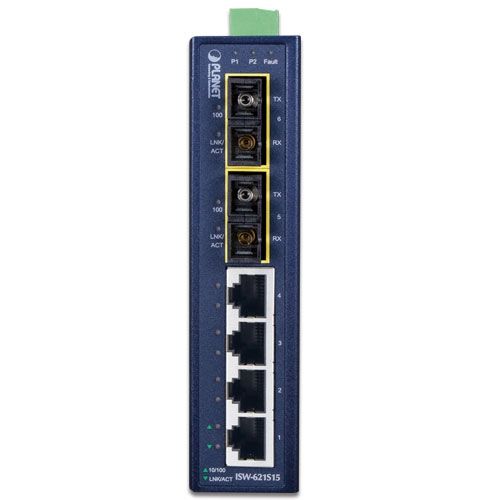

The PLANET ISW-621 and ISW-621S15 are compact, rugged industrial-grade Ethernet switches designed for reliable networking in harsh environments. With 4 Fast Ethernet copper ports and 2 fiber SC ports, these switches are perfect for applications requiring both short (ISW-621, up to 2km via multimode) and long-distance (ISW-621S15, up to 15km via single-mode) transmission. Their slim IP30 metal housing supports DIN-rail or wall mounting, making them ideal for space-constrained industrial setups.

Key Features:

• 4 x 10/100BASE-TX RJ45 ports with auto MDI/MDI-X
• 2 x 100BASE-FX SC fiber ports:
• ISW-621: Multimode, up to 2km (50/125 µm)
• ISW-621S15: Singlemode, up to 15km (9/125 µm)
• Switching Fabric: 1.2 Gbps, Store-and-Forward architecture
• High resistance to EMI, ESD, and power surges

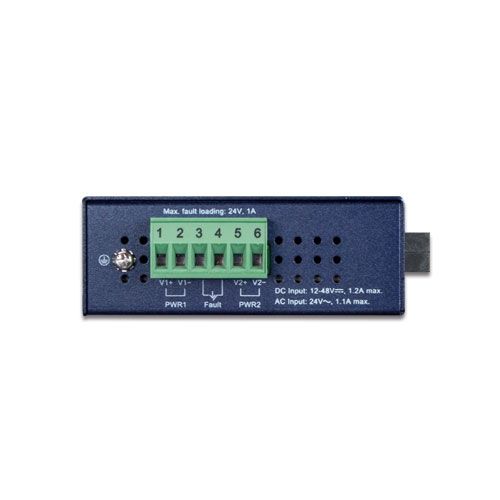

• Dual redundant power input (12–48V DC) with failover alarm
• Operating temperature: -10 to 60 °C

Technical Specifications – Hardware:

Interfaces:

• 4 x 10/100BASE-TX RJ45
• 2 x 100BASE-FX SC ports (multimode/singlemode depending on model)

Optical Specs:

• Wavelength: 1310 nm
• Receiver Sensitivity: -34.5 dBm (ISW-621), -28 dBm (ISW-621S15)
• Max. Input Power: -14 dBm (ISW-621), -8 dBm (ISW-621S15)

Power:

• Power Consumption: Max. 11.6W / 40 BTU
• Input: 12~48V DC, redundant with polarity protection
• Alarm Relay: 1A @ 24V DC for power failure detection

Mechanical:

• Dimensions: 135 x 87.8 x 32 mm
• Weight: 442 g
• Housing: Metal, IP30-rated
• Mounting: DIN-rail or wall-mount

Switching Features:

• Switch Fabric: 1.2 Gbps
• MAC Address Table: 2K entries
• Buffer Memory: 1 Mbit
• Throughput: 0.89 Mpps @ 64 bytes
• Flow Control: IEEE 802.3x and back pressure (half duplex)

Compliance and Environment:

• Standards: IEEE 802.3, 802.3u, 802.3x
• Operating Temperature: -10 ~ 60 °C
• Storage Temperature: -40 ~ 85 °C
• Humidity: 5 ~ 90% (non-condensing)
• Certifications: FCC Class A, CE, UL, cUL
• Durability: IEC60068-2 (shock, vibration, free fall)
