PLANET 4+1 100FX Port Single mode Industrial Ethernet

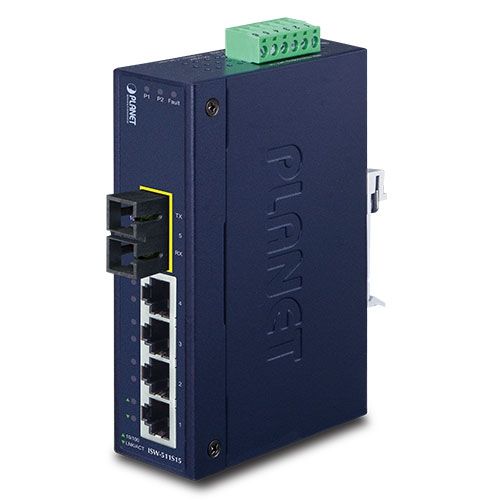

The PLANET ISW-511 and ISW-511S15 are rugged industrial Fast Ethernet switches designed in a slim metal enclosure (IP30-rated) for deployment in harsh environments. Each model offers four 10/100Base-TX ports and one 100Base-FX SC fiber uplink – with the ISW-511 supporting Multi-Mode fiber up to 2 km and the ISW-511S15 supporting Single-Mode fiber up to 15 km. These compact switches are ideal for factory automation, traffic systems, and energy facilities.

Key Features:

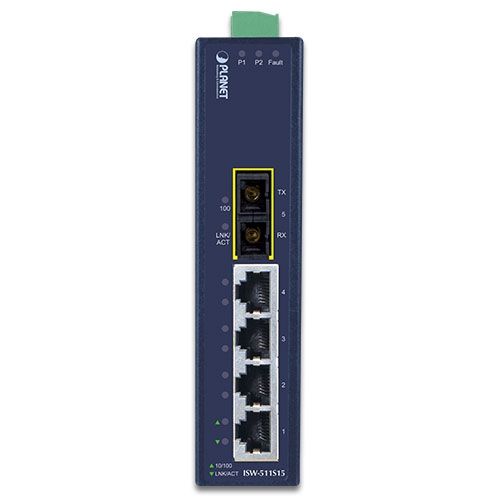

• 4 x 10/100Base-TX RJ45 ports with Auto-MDI/MDI-X
• 1 x 100Base-FX SC fiber port:
• ISW-511: Multi-Mode (50/125 µm), 1310 nm, up to 2 km
• ISW-511S15: Single-Mode (9/125 µm), 1310 nm, up to 15 km
• Operating temperature: -10 to 60 °C

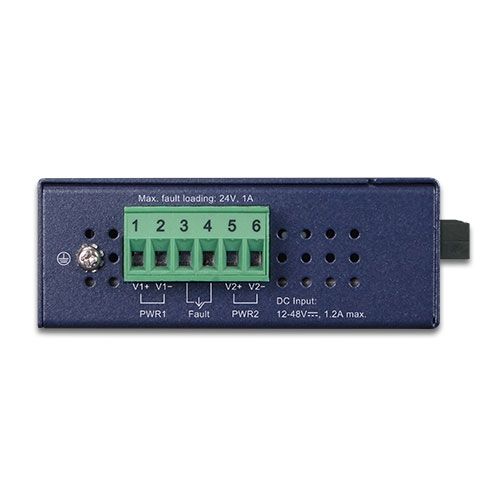

• Redundant 12–48 VDC power input with reverse polarity protection
• 6kV ESD & EFT protection on power and Ethernet interfaces
• Compact size: 135 x 87.8 x 32 mm

Technical Specifications – Hardware:

Copper Ports:

• 4 x 10/100Base-TX, Auto-Negotiation, Auto-MDI/MDI-X

Fiber Port:

• ISW-511: Multi-Mode SC, 1310 nm
• ISW-511S15: Single-Mode SC, 1310 nm

Optical Power:

• ISW-511:
• TX Power: -14 to -19 dBm
• RX Sensitivity: -34.5 dBm
• Max Input Power: -14 dBm
• ISW-511S15:
• TX Power: -7 to -20 dBm
• RX Sensitivity: -28 dBm
• Max Input Power: -8 dBm

Power:

• 12~48 VDC redundant input
• Alarm relay: 1A @ 24V DC
• Power consumption: 9.1W / 31 BTU

Mechanical:

• Housing:(IP30-rated metal
• Weight: 436 g
• Mounting: DIN-rail or wall-mount

Switching Functions:

• Switching Fabric: 1 Gbps
• Throughput: 0.74 Mpps @ 64 Bytes
• MAC Address Table: 2K entries
• Buffer: 1 Mbit
• Flow Control: IEEE 802.3x (full duplex), back pressure (half duplex)

Compliance & Certifications:

• IEEE 802.3, 802.3u, 802.3x
• FCC Part 15 Class A, CE, UL, cUL
• Environmental Tests: Shock, Vibration, Free Fall (IEC60068-2)

Environmental Conditions:

• Operating: -10 ~ 60 °C
• Storage: -40 ~ 85 °C
• Humidity: 5 ~ 90% (non-condensing)
